Windows10 / Android Drone Ground Control Station 1427.9-1447.9MHz

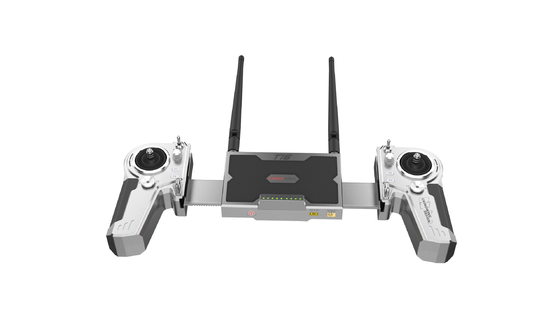

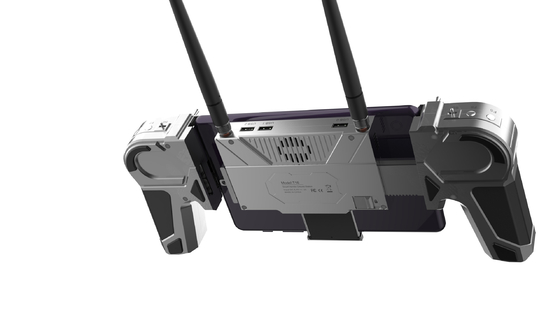

T16 hand held ground control station with mobile device

T16 is a compact portable GCS that can control the aircraft, the payload, display real-time flight status and remote control status,.With the extensible design, it supports 5-10.1inch mainstream tablets and mobile phones.

Product Features

• Main and auxiliary joysticks design
• Programmable dual SBUS independent output, able to control the payload and the drone together
• 10 liner channels meeting various control demand
• Multiple joystick options,left and right handed mode,back center mode,industrial hall effect joystick
• Remote control,telemetry data,real-time HD video display,suitable for individual operation.
• Long endurance,up to 8h with full battery capacity,meanwhile supporting external battery powering.
• The physical channel supports USB HID input to the computer, with up to 9 quick buttons available for quick ground station operation.

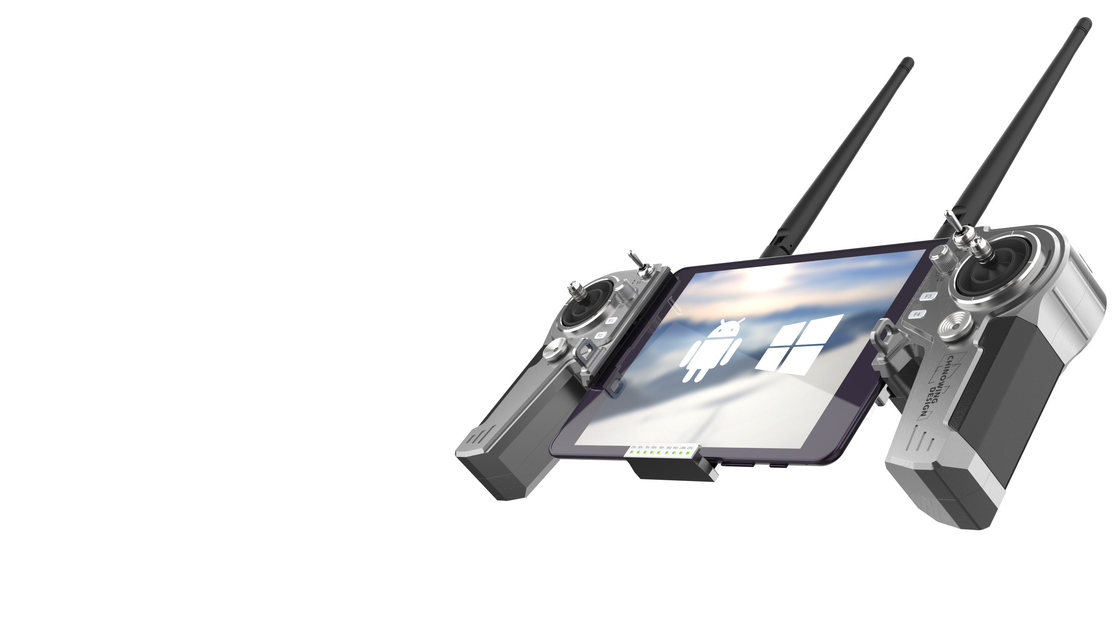

• Extensible design, it supports 5-10.1inch tablet or phone.
• Universal platform, suitable for the most flight controllers
• Programmable dual SBus independent output, able to control the payload and the drone
• 800MHz,1.4GHz,2.4GHz can be chosen in the software, communication range 10km+

Remote controller T16

Overall weight:                            1060g

Dimension:                                  290mm*150mm*60mm

Operation temperature:               -10~+60℃

IP rating:                                      IP53

RF power:                                    0.1-0.5w

Remote control latency:               30ms

Ground unit of video link:             Built-in

Power supply:                              8.4V/6800mAh built-in battery, external battery supported

Endurance:                                  8h@full battery capacity

Mobile device:                             Support 5-10.1inch tablet or phone

Operation system:                       Windows/Android

Remote control range:                10km grade@LOS condition

Channel:                                      22

Main joystick:                               2 (left and right handed mode/back center mode/Hall effect)

Auxiliary joystick:                         2

3-position switch:                         4

Knob :                                          2

Key button:                                  8

Pull wheel:                                   2

Interface:                                     SBUS port /Dual SBUS ports with HID input

External interface:                       USB3.0

V21(10Km grade video&data& link)

Frequency:                                  800MHz(806-826MHz)

                                                    1.4GHz(1427.9-1447.9MHz)

                                                    2.4GHz(2401.5-2481.5MHz)  3 frequency modules integrated in one, frequency can be modified in the software.

Power voltage:                            7.4v-12v XT30

Bandwidth:                                  3M/5M/10M/20M

Operation current:                       300mA@12v power supply

Operation temperature:               -10~+50℃

RF power:                                    0.1w-1w

Antenna:                                      2-4dB rod antenna

Weight:                                        110g(exclude antennas)

Dimension:                                   85mm*55mm*20mm

Video input interface:                   LAN

Serial port:                                   TTL or RS232

SBUS port:                                   2pcs
