Product Details:
|
| Material: | Aviation-grade Aluminum Shell | Product Name: | T40 Drone Ground Station |
|---|---|---|---|
| Function: | Control System, Mission Planning, Video Review | Application: | UAV, UGV, USV, Robot, Remote-controlled Vehicle |
| High Light: | 13.3inch Drone Ground Control Station,30ms diy drone ground station,30ms Uav Ground Station |
||
T40 Professional All-in-One Drone Ground Station Compatible with Any Fixed-Wing or Multirotor UAV

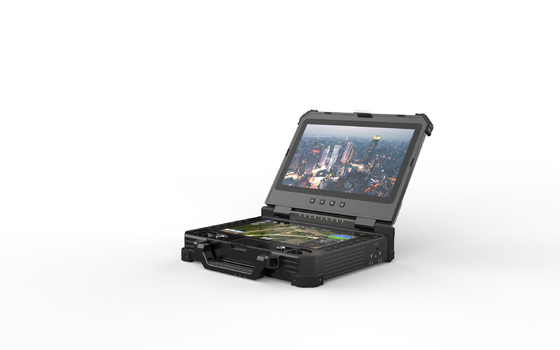

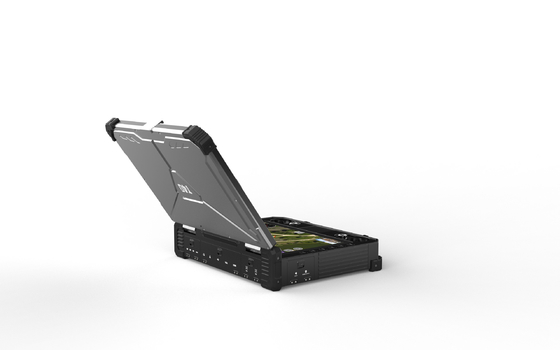

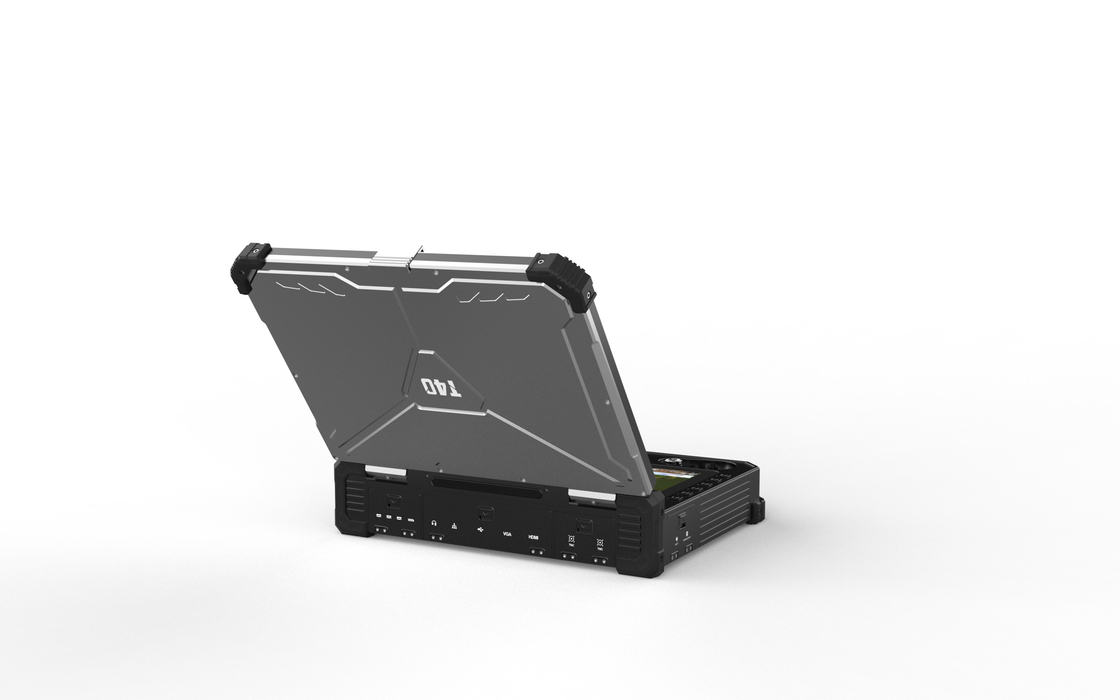

Remote Ground station T40 with dual screens, includes one 13.3inch 1920*1080 1000CCD and one 12.1inch 1280*800 1500CCD. The displays are fully sunlight readable. It is a universal ground control station for all types of UAV, UGV, robots, and other remote-controlled vehicles.
The remote control system has 4 joysticks for use, it also supports traditional RC access. With dual SBUS output and input, the user can assign 27 channels to preferred joysticks, switches, and buttons.
Various input and output ports make it convenient to be integrated with the 3rd party communication device.
All kinds of unmanned aircraft and autopilot systems can be interfaced with this system.
The rugged ground control systems are ideal for the command and control of UAV, UGV, ROVs (remotely operated vehicles), and other robotic vehicles.
Features
Universal off-the-shelf ground control station
Built on Intel-based PC, real industrial-grade GCS

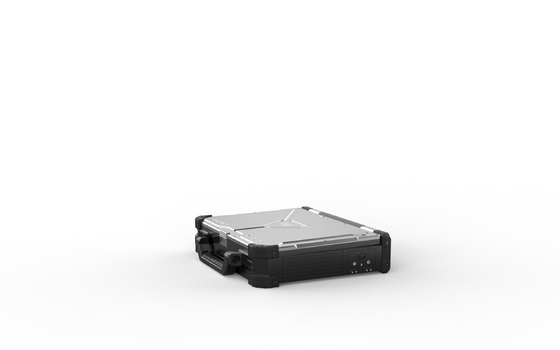

Aviation grade aluminum shell, the overall weight only 5.98kg
Windows and Linux OS for choice
Low latency remote control, 30ms
Built-in 16.8V Li-ion battery, also supporting external battery for power supply
Parameters
Overall
Overall weight: 5.98kg
Dimension: 354mm(L)*280mm(W)*80mm(H)
Operation temperature: -20℃-+60℃
Battery capacity: 16.8V/13600mAh (external battery also supported)
Endurance: 3h@full battery capacity
Communication system:
V30(10km grade)
V21(10km grade)
Supporting the 3rd party communication
Antennas: 4dBi rod antenna/10dBi fiber-glass epoxy antenna(other antennas also can be connected externally)
Computer
Display screen: 13.3inch 1920*1080 1000CCD(top screen);
12.1inch 1280*800 1500CCD(bottom screen)
Operating system: win10/Linux
CPU: Intel i7 8565U(standard)/Intel 10500U(upgrade for future)
Memory: 8G(standard)
Storage: 256GB SSD(standard)
Network: WIFI, Bluetooth(standard)/4G(optional)
Remote control system
Physical channel: 27
Main joystick: 2(industrial joysticks with hall sensors)
Auxiliary rocker: 4
Key buttons: 12
Simulate keystrokes: 7
Remote control latency: 30ms
Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously
Human interface: USB HID device
Interfaces
Serial port: RS232*3, SBUS in/out
External interface: USB3.0, LAN, HDMI in, VGA out, Hi-fi
Charging port: DC16.8V
Airborne unit
V30 HDMI(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 10/20MHz
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
V21 LAN(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 1.4M-20MHz(1.4M/3M/5M/10M/20M)
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
