Product Details:
|
| Overall Weight: | 2400g | Overall Dimension: | 364mm(L)*190mm(W)*40mm(H) |
|---|---|---|---|
| Display Screen: | 10.1inch 1280*800 1000nit | CPU: | Intel I5 6200U/2.3GHz |
| Touch Pad: | Capacitive 10-finger Multi-touch Display | Operating System: | Windows10/Linux |
| RAM: | 16G DDR4L(standard) 32G(max) | SSD Storage: | 512GB(standard)1T Max |
| Network: | WIFI/Bluetooth(standard)4G(optional) | Interface: | USB2.0,LAN,USB3.0,VGA,HDMI |
| Physical Channel: | 23 Main Joysticks*2(industrial Joysticks With Hall Sensors)、Knob*2、Key Button*11、Pull Wheel*2 | Human Interface: | USB HID |
| Remote Control Function: | Dual SBUS Independent Output,able To Control The Vehicle And The Payload Simultaneously | Remote Control Latency: | 40ms |
| SBUS Port: | SBUS OUT | Battery Capacity: | 12.6V/10050mAh（external Battery Also Supported） |
| Endurance: | 4hs@full Battery Capacity | Charging Port: | DC12.6V |
| Communication Link(V21): | 15km Grade Video&telemetry&RC Link | The 3rd Party Communication Link: | Supportive |
| High Light: | ROV Drone Ground Control Station,10km Drone Ground Control Station,Drone Remote Controller 10km |
||

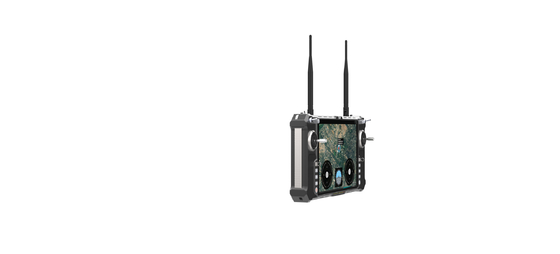

T30 is a universal and portable ground control staion,buit on top of industrial-grade computer system, With built-in all one video&data&RC link, it is especially for individual operation in the field.A professional hand-held remote controller fealures 3 frequency modules in one, telemetry data and real-time video transmission as well as remote control function.
Self-developed dual SBUS output with every channel programmable enables T30 to control the drone and the payload simultaneously.The computer is developed with an i7 high-performance processor based on the X86 architecture, which can greatly meet the computing requirement of any aircraft to the ground station,and also supports video decoding and local recognition.
The system can be installed with LINUX or WINDOWS operating system, The T30 hand-held ground station is the versatile, well-proven,easy-to-use,portable device for remote control of the UAV, UGV and other remote-controlled vehicles.
Product Features
Product Parameters
| Dimension | |
| Overall weight | 2400g |
| Overall dimension | 364mm(L)*190mm(W)*40mm(H) |
| Display screen | 10.1inch 1280*800 1000nit |
| Computer | |
| CPU | Intel i5 6200U/2.3GHz |
| Touch pad | Capacitive 10-finger multi-touch display |
| Operating system | Windows 10/Linux |
| RAM | 16G DDR4L(standard) 32G max |
| SSD storage | 512GB(standard) 1T max |
| Network | WIFI/Bluetooth(standard)4G(optional) |
| Interface | USB2.0,LAN,USB3.0,VGA,HDMI |
| Remote Control | |
| Physical channel | 23 Main joysticks*2(industrial joysticks with hall sensors),Knob*2,Key button*11,Pull wheel*2 |
| Human interface | USB HID |
| Remote control function | Dual SBUS independent output,able to control the vehicle and the payload simultaneously |
| Remote control latency | 40ms |
| SBUS port | SBUS OUT |
| Battery | |
| Battery capacity | 12.6V/10050mAh(external battery also supported) |
| Endurance | 4hs with full battery capacity |
| Charging port | DC12.6V |
| Communication link | |
| V21 | 15km grade video&telemetry&RC link |
| The 3rd party communication link | Supportive |
FAQ:
Q: Who we are?
A: We are a world-leading high-tech enterprise specializing in the R&D and production of dual-screen ground control stations, portable ground control stations, military ground control stations and data link modules.
Q: Could you support OEM&ODM ?
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q. How long is the delivery time ?.
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days..
Q. How do we make a business long term and good relationship with you?
A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
Q: How can you guarantee quality?
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
