IP65 grading Drone Controller With Screen aluminum alloy shell

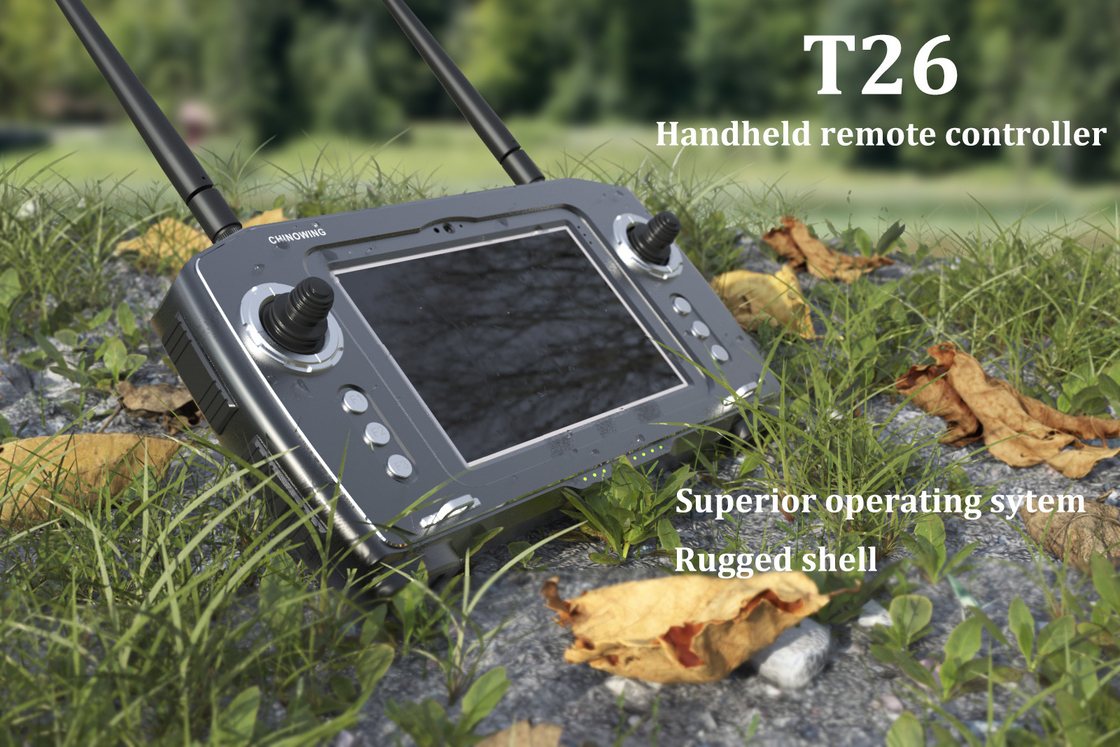

T26 Drone Ground Control Station With Long Range Remote Control For Demanding Environments

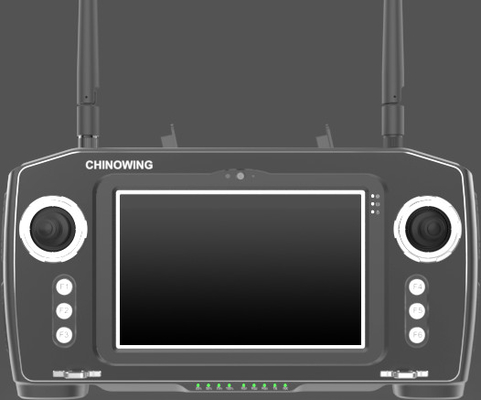

HandHeld UAV ground control Station T26 is built on top of the Panasonic FZ-M1, a professional and military graded tablet with MIL-STD-810G protection, and a dust- and water-resistant IP65 enclosure.

There are 2 joysticks, 2 pull wheels, and 10 buttons on the T26, along with an all-in-one video and telemetry link. The user can self-define 16 channels to preferred joysticks, buttons and, switches.

Built-in large capacity battery enables it to work for 9hs continuously. It provides great convenience for the pilot in the field operation.

With an overall weight of only 1.5kg, T26 is a universal remote controller, which can work with most open-source flight controls and any type of UAV, UGV, USV, and other remote-controlled vehicles. The rugged, water and dust-proof design, is especially suitable for operation in a harsh environment.

Performance upgrade

• Built on Panasonic FZ-M1, IP65 grading

• Aviation grade aluminum shell, the overall weight only 1.5kg

• Touch screens, high definition, high brightness, sunlight-readable

• Video & telemetry & RC& computer in one, 3 frequency modules in one

• USB HID function

Perfect remote control experience

• Double hall rocker
• Double round rocker
• Light alloy buttons

Long battery working time

• Battery capacity is 3220mAh+6800mAh
• Remote control about 9hs
• The web browsing 12hs

Modeling design

• Aviation aluminum alloy shell, rugged and lightweight
• Overall weight is only 1.5 kg
• Around with soft rubber, skid resistance, anti-knock

Parameters

Overall

Overall weight:                      1.5kg

Dimension:                            30cm*15.8cm*4cm

Operation temperature:        -20℃-+60℃

Battery capacity:                   Built-in 7.4V/3220mAh(RC)& 8.4V/6800mAh (computer)

Endurance:                           9hs

IP rating:                               IP65

Communication system:       V21(10km grade)

Antennas:                              2-4dB ZYJB antenna

Computer

Computer:                            Panasonic FZ-M1(Processor: Intel i5 7Y57)

Display screen:                    7inch industrial touch screen+800nits sunlight readable+definition 1280*800

Operating system:               Win10

CPU:                                    Intel i5 7Y57

Memory:                              8G

Storage:                              256GB SSD

Network:                             WIFI/Bluetooth/4G

Remote control system

Physical channel:                 16

Joysticks:                             2

Pull wheel:                           2

buttons:                                F1-F10

(Each channel programmable, the user can self-define each joystick, switch, button, etc)

Remote control latency:          40ms

Remote control function:         Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface:                    USB HID device

Interfaces

External interface:                   USB3.0*2
