Product Details:
|
| Material: | Aviation-grade Aluminum Shell | Product Name: | T40 Portable Ground Control Station |
|---|---|---|---|
| Function: | Control System, Mission Planning, Video Review | Application: | UAV, UGV, USV, Robot, Remote-controlled Vehicle |
| High Light: | UGV Drone Ground Control Station,UGV Ground Control System For Drone,Ground Control System For Drone 5.98kg |
||

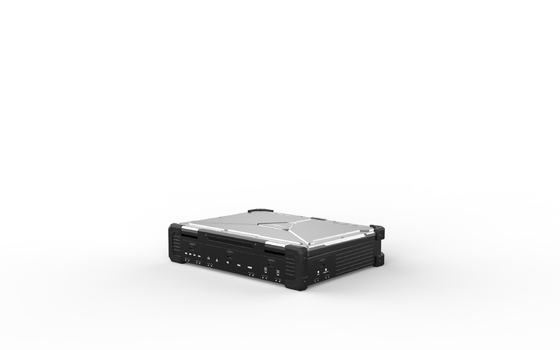

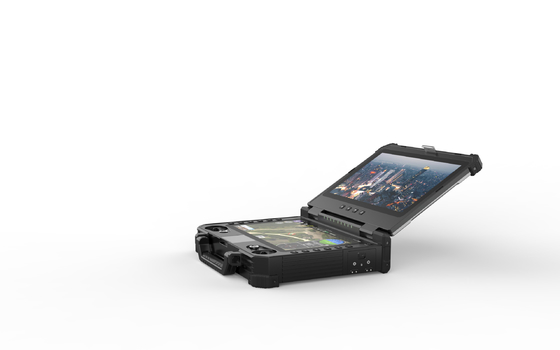

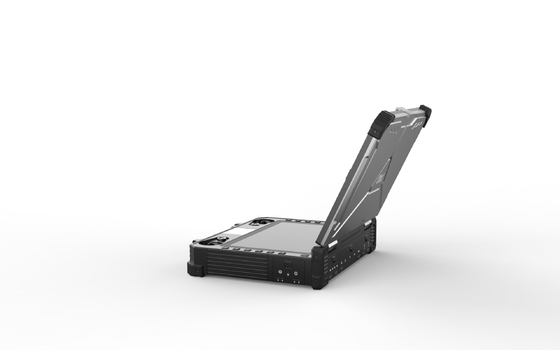

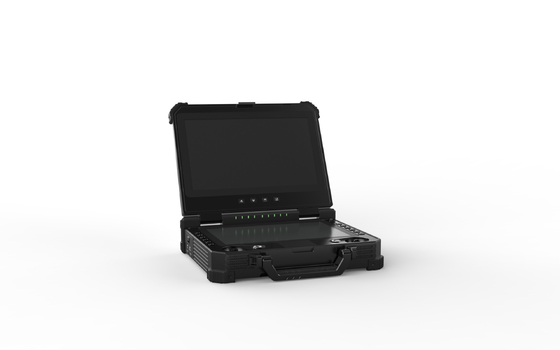

T40 Dual-Screen Drone Ground Control Station with Long Range Remote Control
T40 is a fully integrated professional ground control station built around an Intel-based PC and 3-in-1 video&telemetry&RC link. It comes with dual ultra HD displays that are sunlight readable.
It comes with 27 physical channels and a Remote Control Configuration Interface, which allows users to assign channels to preferred joysticks, switches, and buttons.
With a built-in 16.8V Li-ion battery, it can provide up to 3Hs of operation time. External battery can also be used for power supply to extend operation time. It provides great convenience to customers as it can be used anytime, anywhere.
The system can interface with almost any unmanned aircraft and many autopilot systems. The user can choose our standard 10km grade video&telemetry&RC link and also can use the 3rd party communication.
Its high reliability and powerful capabilities make it well suited for applications such as defense, law enforcement, surveillance, mapping, and surveying.
Features
Dual touch screens, high definition, high brightness, sunlight-readable
Support traditional RC access
Various external interfaces, able to be integrated with the 3rd party data link
Windows and Linux OS for choice
Parameters
Overall
Overall weight: 5.98kg
Dimension: 354mm(L)*280mm(W)*80mm(H)
Operation temperature: -20℃-+60℃
Battery capacity: 16.8V/13600mAh (external battery also supported)
Endurance: 3h@full battery capacity
Communication system:
V30(10km grade)
V21(10km grade)
Supporting the 3rd party communication
Antennas: 4dBi rod antenna/10dBi fiber-glass epoxy antenna(other antennas also can be connected externally)
Computer
Display screen: 13.3inch 1920*1080 1000CCD(top screen);
12.1inch 1280*800 1500CCD(bottom screen)
Operating system: win10/Linux
CPU: Intel i7 8565U(standard)/Intel 10500U(upgrade for future)
Memory: 8G(standard)
Storage: 256GB SSD(standard)
Network: WIFI, Bluetooth(standard)/4G(optional)
Remote control system
Physical channel: 27
Main joystick: 2(industrial joysticks with hall sensors)
Auxiliary rocker: 4
Key buttons: 12
Simulate keystrokes: 7
Remote control latency: 30ms
Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously
Human interface: USB HID device
Interfaces
Serial port: RS232*3, SBUS in/out
External interface: USB3.0, LAN, HDMI in, VGA out, Hi-fi
Charging port: DC16.8V
Airborne unit
V30 HDMI(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, the frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 10/20MHz
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
V21 LAN(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, the frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 1.4M-20MHz(1.4M/3M/5M/10M/20M)
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
