Product Details:
|
| Type: | Patrol Drone、reconnaissance Drone | Condition: | New |
|---|---|---|---|
| Place Of Origin: | Shenzhen,China | Year Built: | 2024 |
| Color: | Customized Colors | Surface: | Glossy In Finished |
| LOGO: | Customized Logo,Min.order:50 | Usage: | Industrial Drone、Military Grade Drone |
| Standard Takeoff Weight: | 60kg | Maximum Load Weight: | 15kg |
| Cruising Speed: | 85km/h | Maximum Flight Speed: | 130km/h |
| Control Radius: | 50-100km (can Be Customized) | Maximum Climbing Speed: | 4m/s |
| Maximum Descending Speed: | 5m/s | Maximum Take-off Altitude: | 4000m |
| Maximum Wind Resistance: | Level 7 | Working Environment Temperature: | -10~60℃ |
| Fuel Tank Capacity: | 18L | Maximum Flight Time: | 600min |
| Range: | 850km | Aircraft Size: | 4800*2580*850MM |

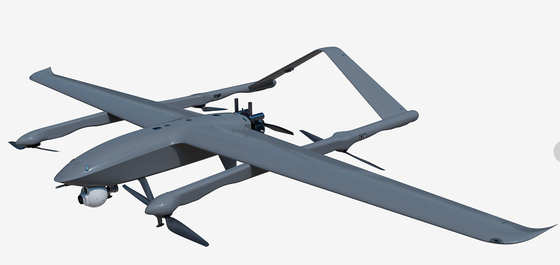

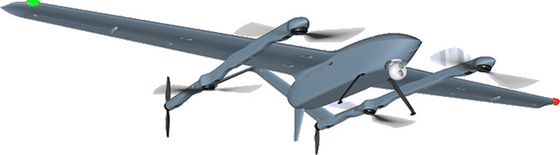

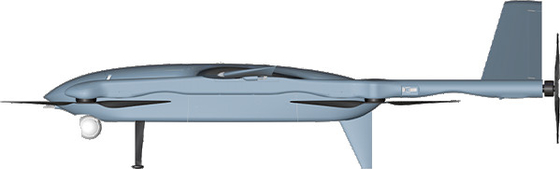

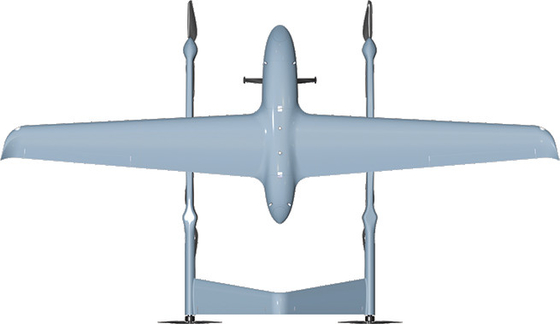

The CP50H is the first gasoline-electric hybrid vertical takeoff and landing drone we launched.
It adopts a composite aerodynamic layout of four rotors and fixed wings, which combines the advantages of vertical take-off and landing of rotors and long range of fixed wings. It is maneuverable and flexible and can adapt to various complex take-off and landing conditions. It adopts hybrid power mode and can achieve 10 hours The above battery life is widely used in defense reconnaissance, emergency communications and other fields.
Main feature:
1. Good waterproof performance
2. Gas-electric hybrid
3. Modular design
Technical Parameters:
Standard takeoff weight: 60kg
Maximum load weight: 15kg
Cruising speed:85km/h
Maximum flight speed:130km/h
Control radius: 50-100km (can be customized)
Maximum climbing speed: 4m/s
Maximum descending speed: 5m/s
Maximum takeoff altitude: 4000m
Maximum wind resistance: Level 7
Working environment temperature: -10~60℃
Fuel tank capacity: 18L
Flight time: 600min
Range: 850km
Aircraft size: 4800*2580*850MM
| Version and details | ||||
| Model | CP50H-1 | CP50H-2 | CP50H-L | CP50H- |
| Version | PNP | RTF | Logistics version | Other |
| Common configurations for reference | ||||
| Version list |
1x CP50H composite body (carbon fiber) 4x hanging motor 4x hanging ESC 2x (pair) hanging blades 1x fixed wing propeller 1x engine 4x servos 1x power strip 2x Rotational Molding Box |
CP50H PNP+ following parts 1x flight control+GPS/RTK 1x airspeed indicator 1x remote control 1x charger 3x battery 14S 10000mAh 1x digital transmission 100KM 1x debugging |
CP50H PNP+ following parts 1x flight control+GPS/RTK 1x airspeed indicator 1x remote control 1x charger 3x battery 14S 10000mAh 1x digital transmission 100KM Plus customized logistics warehouse 1x debugging |
For other features you need, please contact us! |
FAQ:
Q: Who we are?
A: We are a company that provides a full range of drone solutions, from drones to ground control stations to communication transmission, with integrated customization capabilities
Q: Could you support OEM&ODM ?
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q. How long is the delivery time ?.
A: Normally small quantity orders will be dispatched within 7-15 working days after receiving payment. For bulk order, we will ship out within 15-20 days..
Q. How do we make a business long term and good relationship with you?
A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
Q: How can you guarantee quality?
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
Q: How to check flight performance?
A:After the full payment is made, we will start production and will conduct a test flight. If you are in China, we will invite you to go to the venue for a test flight to see how your drone performs in the sky. If you are satisfied, then we will install it. The good drone comes in the box and then ship to your country.
