Customized carbon fiber gasoline engine drone remote measurement drone fixed wingspan 3.0m payload 40kg and 1000km range

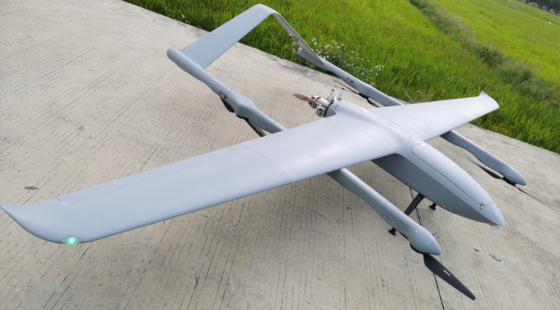

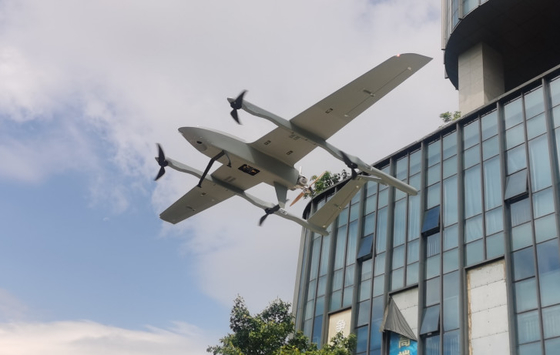

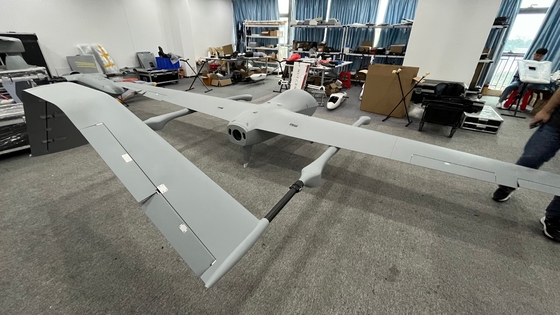

The CP150H hybrid fuel-electric vertical take-off and landing fixed-wing UAV adopts a composite aerodynamic layout of four rotors and fixed wings. It is stable and reliable. It is specially developed for cruise monitoring, emergency disaster relief, emergency material delivery and other application scenarios. It has a large load capacity and multi-tasking,especially the long  endurance.



Main feature:

1. Good waterproof performance


2. Gas-electric hybrid

3. Modular design



4. Multi-function free switching

5. Comes with 2*2 hanging points

Technical Parameters:

Standard takeoff weight: 120kg
Maximum load weight: 40kg
Cruising speed:90km/h
Maximum flight speed:150km/h
Control radius: 50-100km (can be customized)
Maximum climbing speed: 4m/s
Maximum descending speed: 5m/s
Maximum take-off altitude: 3500m
Maximum wind resistance: Level 7

Working environment temperature: -10~60℃
Fuel tank capacity: 48L
Maximum flight time: 720min
Range:1000km
Aircraft size: 6500*3264*1170mm



FAQ:
Q: Who we are?

A: We are a company that provides a full range of drone solutions, from drones to ground control stations to communication transmission, with integrated customization capabilities


Q: Could you support OEM&ODM ?

A: We are able to offer you the best solutions on market by providing you OEM/ODM service.

Q. How long is the delivery time ?.

A: Normally small quantity orders will be dispatched within 7-15 working days after receiving payment. For bulk order, we will ship out within 15-20 days..

Q. How do we make a business long term and good relationship with you?

A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.


Q: How can you guarantee quality?

A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity&parameter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.

Q: How to check flight performance?
A:After the full payment is made, we will start production and will conduct a test flight. If you are in China, we will invite you to go to the venue for a test flight to see how your drone performs in the sky. If you are satisfied, then we will install it. The good drone comes in the box and then ship to your country.
