Product Details:
|
| Standard Takeoff Weight: | 120kg | Maximum Load Weight: | 40kg |
|---|---|---|---|
| Cruising Speed: | 90km/h | Maximum Flight Speed: | 150km/h |
| Control Radius: | 50-100km (can Be Customized) | Maximum Climbing Speed: | 4m/s |
| Maximum Descending Speed: | 5m/s | Maximum Take-off Altitude: | 3500m |
| Maximum Wind Resistance: | Level 7 | Working Environment Temperature: | -10~60℃ |
| Fuel Tank Capacity: | 48L | Maximum Flight Time: | 720min |
| Range: | 1000km | Aircraft Size: | 6500*3264*1170mm |

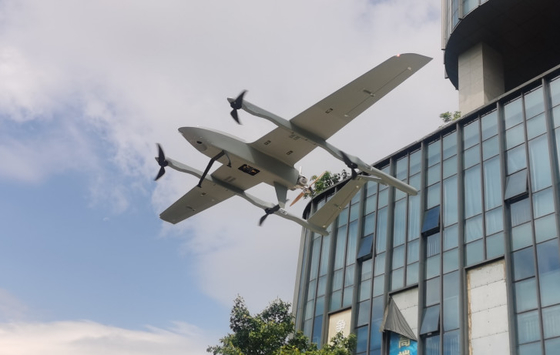

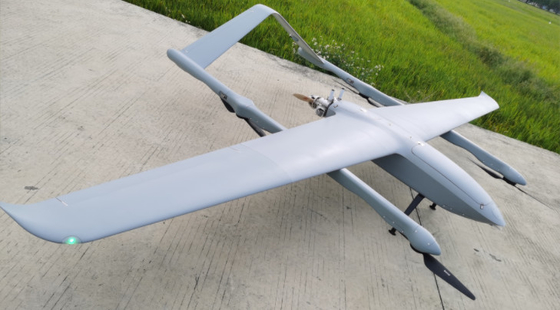

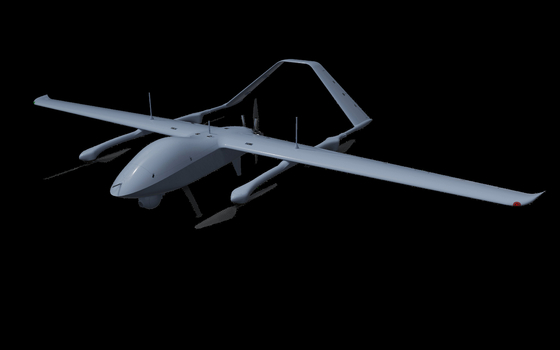

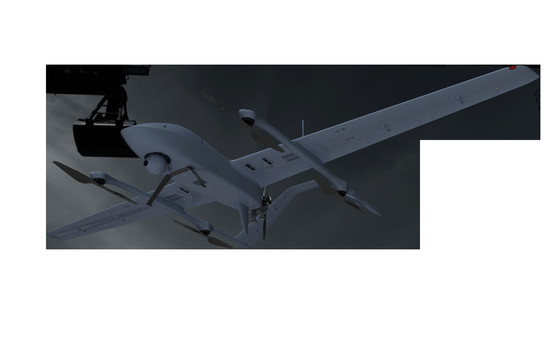

The CP150H hybrid fuel-electric vertical take-off and landing fixed-wing UAV adopts a composite aerodynamic layout of four rotors and fixed wings. It is stable and reliable. It is specially developed for cruise monitoring, emergency disaster relief, emergency material delivery and other application scenarios. It has a large load capacity and multi-tasking. Features such as long endurance.
Main feature:
1. Good waterproof performance
2. Gas-electric hybrid
3. Modular design
4. Multi-function free switching
5. Comes with 2*2 hanging points
Technical Parameters:
Standard takeoff weight: 120kg
Maximum load weight: 40kg
Cruising speed:90km/h
Maximum flight speed:150km/h
Control radius: 50-100km (can be customized)
Maximum climbing speed: 4m/s
Maximum descending speed: 5m/s
Maximum take-off altitude: 3500m
Maximum wind resistance: Level 7
Working environment temperature: -10~60℃
Fuel tank capacity: 48L
Maximum flight time: 720min
Range:1000km
Aircraft size: 6500*3264*1170mm
| Version and details | ||||
| Model | CP150H-1 | CP150H-2 | CP150H-L | CP150H- |
| Version | PNP | RTF | Logistics version | Other |
| Common configurations for reference | ||||
| Version list |
1x CP150H composite body (carbon fiber) 4x hanging motor 4x hanging ESC 2x (pair) hanging blades 1x fixed wing propeller 1x engine 8x servo 1x power strip 1x aviation aluminum box |
CP150H PNP+ following parts 1x flight control+GPS/RTK 1x airspeed indicator 1x remote control 1x charger 4x battery 12S 16000mAh 1x digital transmission 100KM 1x debugging |
CP50H PNP+ following parts 1x flight control+GPS/RTK 1x airspeed indicator 1x remote control 1x charger 4x battery 12S 16000mAh 1x digital transmission 100KM Plus customized logistics warehouse 1x debugging |
For other features you need, please contact us! |
FAQ:
Q: Who we are?
A: We are a world-leading high-tech enterprise specializing in the R&D and production of dual-screen ground control stations, portable ground control stations, military ground control stations and data link modules.
Q: Could you support OEM&ODM ?
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q. How long is the delivery time ?.
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days..
Q. How do we make a business long term and good relationship with you?
A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
Q: How can you guarantee quality?
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
