Product Details:
|
| Standard Takeoff Weight: | 50kg | Maximum Load Weight: | 20kg |
|---|---|---|---|
| Cruising Speed: | 80km/h | Maximum Flight Speed: | 120km/h |
| Control Radius: | 100km (customized) | Maximum Climbing Speed: | 4m/s |
| Maximum Descending Speed: | 5m/s | Maximum Take-off Altitude: | 4200m |
| Maximum Wind Resistance: | Level 7 | Working Environment Temperature: | -10~60℃ |
| Maximum Flight Time: | 240min | Range: | 320km |
| Aircraft Size: | 4800*2580*850mm | Packing Size: | 1670*730*810mm |

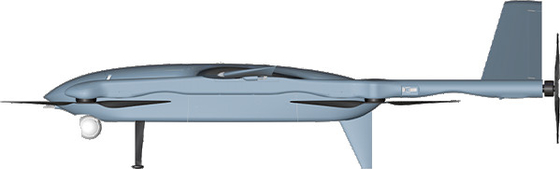

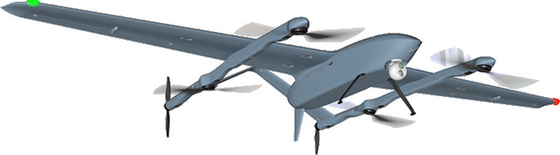

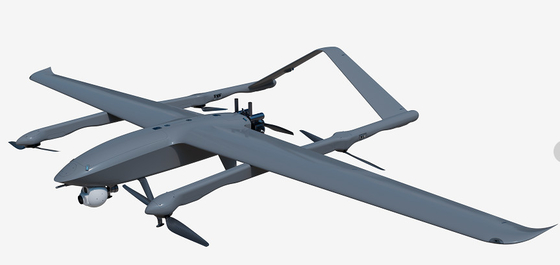

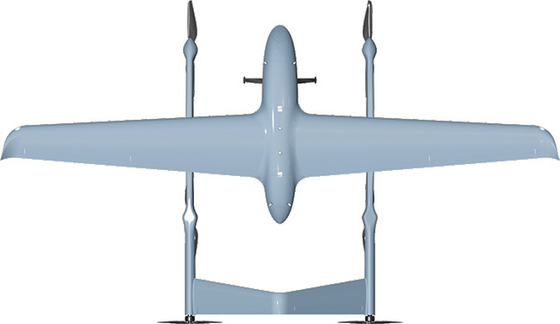

The CP50E electric vertical take-off and landing fixed-wing UAV adopts a composite aerodynamic layout of four rotors and fixed wings. It combines the advantages of vertical take-off and landing of rotors and long range of fixed wings. It is maneuverable and flexible and can adapt to various complex take-off and landing conditions.
It has a dual-engine tail propulsion design and a dual-load design for the main and auxiliary engines. It is easy to use electric, quiet and pollution-free, and can meet the requirements of plateau flying.
Security monitoring/emergency communication interruption/logistics transportation
Main feature:
1. Good waterproof performance
2. Dual engine power
3. Double load bin design
Technical Parameters:
Standard takeoff weight: 50kg
Maximum load weight: 20kg
Cruising speed:80km/h
Maximum flight speed:120km/h
Control radius: 100km (can be customized)
Maximum climbing speed: 4m/s
Maximum descending speed: 5m/s
Maximum takeoff altitude: 4200m
Maximum wind resistance: Level 7
Working environment temperature: -10~60℃
Flight time: 240min
Range: 320km
Aircraft size: 4800*2580*850MM
| Version and details | ||||
| Model | CP50E-1 | CP50E-2 | CP50E-L | CP50E- |
| Version | PNP | RTF | Logistics version | Other |
| Common configurations for reference | ||||
| Version list |
1x CP50E composite body (carbon fiber) 4x hanging motor 4x hanging ESC 2x (pair) hanging blades 2x fixed wing propellers 2x fixed wing motors 2x fixed wing ESC 4x servos 1x power strip 2x aluminum box |
CP50E PNP+ following parts 1x flight control+GPS/RTK 1x airspeed indicator 1x remote control 2x SKYRC PC1080 charger 4x battery 12S 30000mAh 1x digital transmission D02 20KM 1x debugging |
CP50E PNP+ following parts 1x flight control+GPS/RTK 1x airspeed indicator 1x remote control 2x SKYRC PC1080 charger 4x battery 12S 30000mAh 1x digital transmission D02 20KM Plus your customized logistics warehouse 1x debugging |
For other features you need, please contact us! |
FAQ:
Q: Who we are?
A: We are a world-leading high-tech enterprise specializing in the R&D and production of dual-screen ground control stations, portable ground control stations, military ground control stations and data link modules.
Q: Could you support OEM&ODM ?
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q. How long is the delivery time ?.
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days..
Q. How do we make a business long term and good relationship with you?
A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
Q: How can you guarantee quality?
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
