Product Details:
|
| Standard Takeoff Weight: | 8 Kg | Maximum Load Weight: | 1.3 Kg |
|---|---|---|---|
| Cruising Speed: | 70km/h | Maximum Flight Speed: | 110km/h |
| Control Radius: | 10km (customized) | Maximum Climbing Speed: | 4m/s |
| Maximum Descending Speed: | 5m/s | Maximum Take-off Altitude: | 4000m |
| Maximum Wind Resistance: | Level 6 | Working Environment Temperature: | -10~60℃ |
| Maximum Flight Time: | 180min | Range: | 210km |
| Aircraft Size: | 2400*1150*370mm | Packing Size: | 1350*550*480mm |

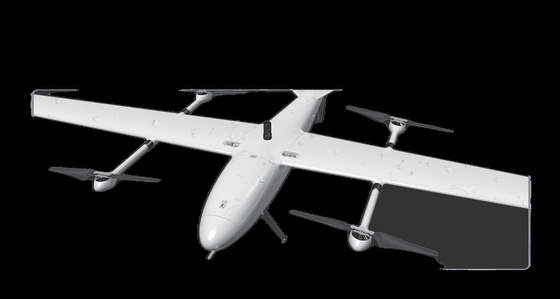

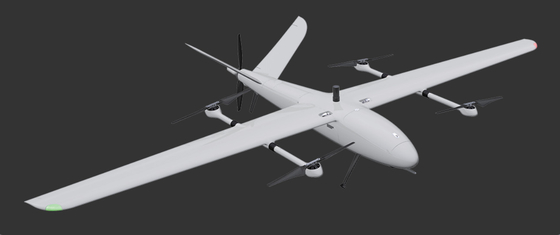

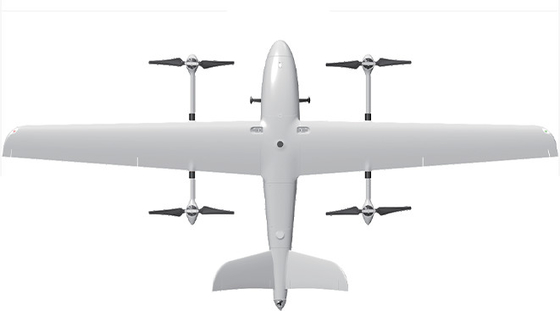

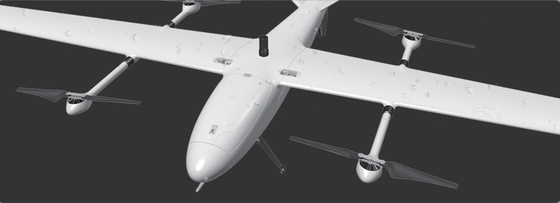

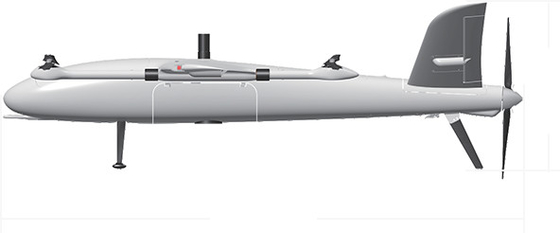

The CP7 is a lightweight, purely electric vertical take-off and landing fixed-wing UAV.
In view of the characteristics of surveying, mapping and patrol application scenarios, the initial development of this UAV was based on long endurance and large range requirements, optimizing details in aerodynamic control, and striving for excellence in power system, and finally reached an ultra-long endurance of 180 minutes, 210KM ultra-long range. Through modular design, rapid deployment can be achieved in 1 minute, allowing users to obtain a better operating experience.
Independent load compartment design, quick replacement, users can flexibly select the load according to operational needs.
Main feature:
1. Good waterproof performance
2. Lightweight and portable
3. Modular design, tool-free disassembly and assembly
4. Replaceable load compartment design
| Version and details | |||
| Model | CP7-1 | CP7-2 | CP7-M |
| Version | PNP | RTF | Surveying and mapping version |
| Common configurations for reference | |||
| Version list |
1x CP7 composite body (carbon fiber + glass fiber) 4x hanging motor 4x hanging ESC 2x (pair) hanging blades 1x fixed wing propeller 1x fixed wing motor 1x fixed wing ESC 4x servos 1x power strip 1x carrying case |
CP7 PNP+ following parts 1x flight control+RTK 1x airspeed indicator 1x remote control 1x SKYRC PC520 charger 1x battery 6S 30000mAh 1x digital transmission D02 20KM 1x debugging |
CP7 PNP+ following parts 1x flight control+RTK 1x airspeed indicator 1x remote control 1x SKYRC PC520 charger 1x battery 6S 30000mAh 1x digital transmission D02 20KM 1x debugging 1xPPK 1x mapping camera (orthophoto) 1x Assembly and debugging |
