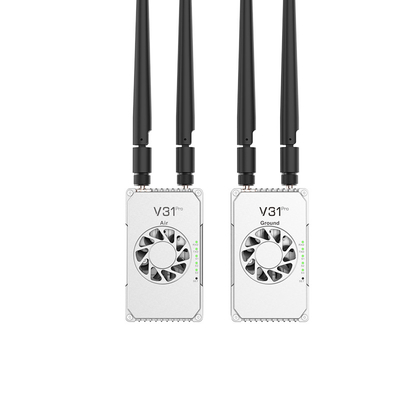

V31pro D05 Data link is specially designed to provide stable, efficient and clear data transmission for ground robots.

Certification
China Chinowing Technology Co., Ltd certification
China Chinowing Technology Co., Ltd certification
I'm Online Chat Now

V31pro D05 Data link is specially designed to provide stable, efficient and clear data transmission for ground robots.

V31pro D05 Data link is specially designed to provide stable, efficient and clear data transmission for ground robots.
V31pro D05 Data link is specially designed to provide stable, efficient and clear data transmission for ground robots. V31pro D05 Data link is specially designed to provide stable, efficient and clear data transmission for ground robots. V31pro D05 Data link is specially designed to provide stable, efficient and clear data transmission for ground robots. V31pro D05 Data link is specially designed to provide stable, efficient and clear data transmission for ground robots. V31pro D05 Data link is specially designed to provide stable, efficient and clear data transmission for ground robots.

Large Image :  V31pro D05 Data link is specially designed to provide stable, efficient and clear data transmission for ground robots.

Product Details:
Place of Origin: China
Brand Name: chinowing
Model Number: V31pro D05
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Delivery Time: 2-8 working days
Payment Terms: T/T
Supply Ability: 1-10000PCS

V31pro D05 Data link is specially designed to provide stable, efficient and clear data transmission for ground robots.

Description
Overall Weight: 175g(Exclude Antennas) Overall Dimension: 95mm*56mm*30mm
Working Frequency: 800MHz(806-826MHz)1.4GHz(1427.9-1467.9MHz) 1.4G(standard) Power Supply Voltage: DC12-50V 3-12S Battery
Power Supply Current: 2-2.5A(24V Power Supply) Serial Port: TTL RS232(optional)
Data Port: SBUS *2,LAN*1 RF Power: -40~37dBm
Antenna: 2-4dBi Rod Antenna 8-12dBi Fiberglass Antenna(optional) Operating Temperature: -30℃-+50℃
Video Latency: <300ms Transmission Range: V31pro D05:5km Grade(air To Ground) LOS/point To Point
Bandwidth: 1.4-20M 1.4M/3M/5M/10M/20M Settable Video Input/output: LAN Connecting LPC Device/PC
Power Supply Port: XT30

V31pro Digital Video Transceiver is designed based on LTE wireless communication standards,incorporating advanced OFDM and MIMO technologies for robust wireless digital data links. Equipped with dual 10/100 Ethernet ports and serial gateway functionality, it serves as a reliable wireless Ethernet bridge and gateway for a variety of devices. This device efficiently transmits signals for remote control,telemetry, and video. It effectively addresses challenges associated with limited transmission distances for remote control and telemetry signals, as well as issues of low-quality image transmission. With its compact size, seamless integration,and high sensitivity,V31pro provides flexible frequency options,including 800MHz and 1.4GHz.

Product Features:
Two Frequencies optional

800MHz,1.4GHz

LAN Interface
Compatible with all network protocols

Distance
Ground-to-Ground 5km

Dual S-BUS
Simultaneously control the drone,gimbal and other payloads

RS232/TTL
Baud rate adjustable

Star Network
Supports point-to-point and point-to-multipoint.
The central node can access any sub node,64 devices connections maximum

V31pro D05 Data link is specially designed to provide stable, efficient and clear data transmission for ground robots. 0

Product Parameters:


Item Parameters Details
Overall weight 175g Exclude antennas
Overall dimension 95mm*56mm*30mm NA
Working frequency 800MHz(806-826MHz)
1.4GHz(1427.9-1467.9MHz)
1.4G(standard)
Power supply current 2-2.5A 24V power supply
Serial port TTL RS232(optional)
Data port SBUS*2,LAN*1
RF power -40~37dBm
Antenna 2-4dBi rod antenna  8-12dBi fiberglass antenna(optional)
Operating temperature -30℃~+50℃
Video latency <300ms
Transmission range V31D05:5km grade(ground to ground) LOS/point to point
Bandwidth 1.4-20M 1.4M/3M/5M/10M/20M settable
Video input/output LAN Connecting IPC device/PC
Power supply voltage DC12-50V 3-12S battery
Power supply port XT30



V31pro D05 Data link is specially designed to provide stable, efficient and clear data transmission for ground robots. 1V31pro D05 Data link is specially designed to provide stable, efficient and clear data transmission for ground robots. 2V31pro D05 Data link is specially designed to provide stable, efficient and clear data transmission for ground robots. 3V31pro D05 Data link is specially designed to provide stable, efficient and clear data transmission for ground robots. 4V31pro D05 Data link is specially designed to provide stable, efficient and clear data transmission for ground robots. 5



FAQ:
Q: Who we are?

A: We are a world-leading high-tech enterprise specializing in the R&D and production of dual-screen ground control stations, portable ground control stations, military ground control stations and data link modules.


Q: Could you support OEM&ODM ?

A: We are able to offer you the best solutions on market by providing you OEM/ODM service.



Q. How long is the delivery time ?

A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days..



Q. How do we make a business long term and good relationship with you?

A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.


Q: How can you guarantee quality?

A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity&parameter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
