XT30 UAV Radio Link , OFDM MIMO Video Transmission System 100g

100g V21 video&data&RC all in one link (85mm*55mm*20mm)

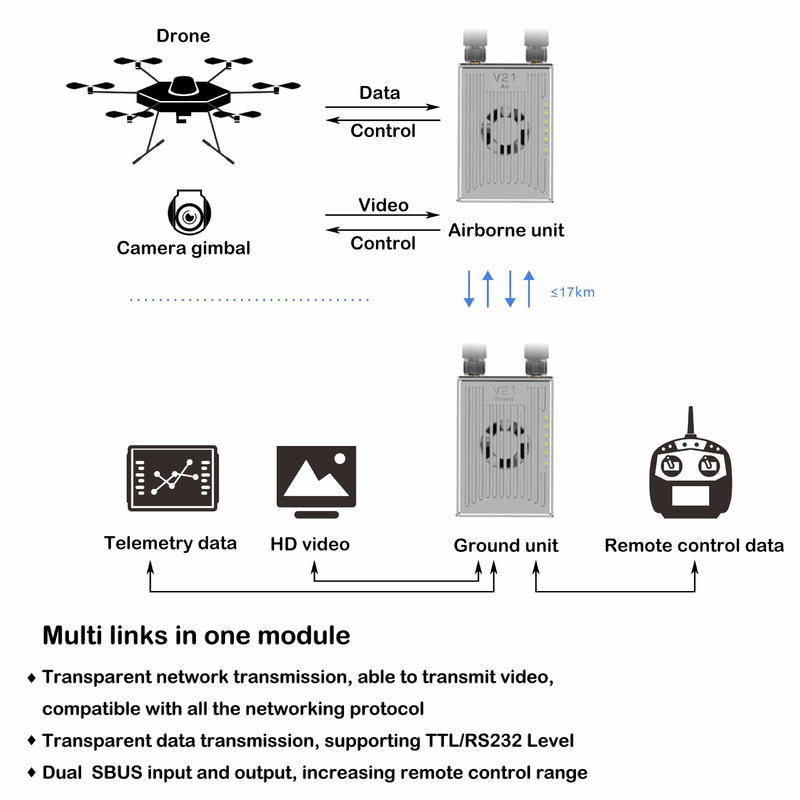

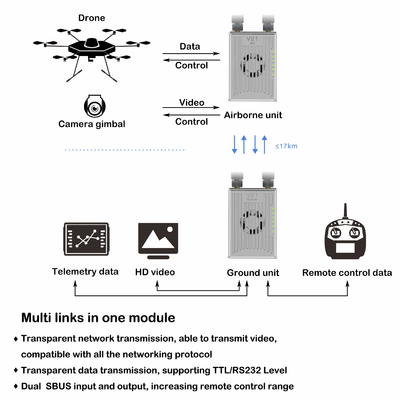

All-in-one link exploiting OFDM and MIMO technologies. It can carry a continuous flow of serial and LAN data, as well as SBUS control signals. RF modules of 800M, 1.4G, 2.4G bands are integrated, and you can customize the frequency in the software. Its web-based configuration makes it simple to operate.

Features

• Transparent network transmission,able to transmit images,compatible with all network protocols;
• Transparent data transmission,support TTL/RS232 level;
• Double SBUS input and output,remote extended range is extended;
• Support H264/265 input video encoding format;
• Bandwidth:30MHz max;
• The transmission latency from the node to the center node ≤60ms；
• Support 800MH在,1.4GHz and 2.4GHz frequency band;
• Security:access authentication module,to prevent illegal access.
• Support user-defined encryption;
• By spectrum scanning avoid interference;
• Support in frequency hopping to reduce interference

Parameters
Frequency band:

800MHz (806-826MHz)

1.4GHz (1427.9-1447.9MHz)

2.4GHz (2401.5-2481.5MHz)

RF Power: -40-25dbm(adjustable)

Transmission range: 10km grade@LOS

Video latency: 20ms (Transmission latency from Tx to Rx)

Bandwidth: 1.4-20M (1.4M/3M/5M/10M/20M)

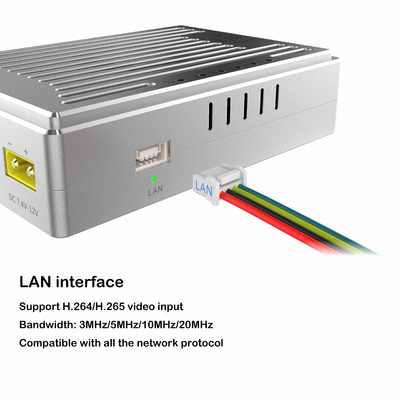

Video input/output: LAN (Connecting IPC device/PC)

Power supply voltage: 7.4-12V

Power supply interface: XT30

Operation current: 180mA

Operation temperature: -10℃-+50℃

Dimension: 85mm*55mm*20mm

Weight: 100g(exclude antenna)

S-BUS port: 2*S-BUS ports

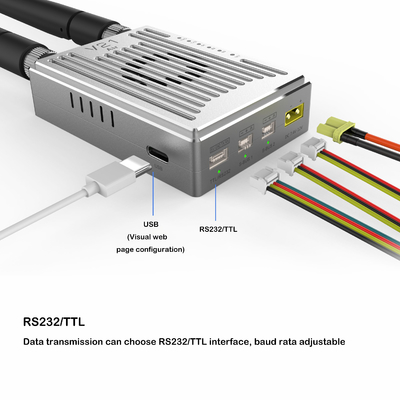

Serial port: 1*serial port (default: TTL; optional: RS232; Full duplex, baud rate adjustable)
