Product Details:
|
| Dimension: | 65mm*47mm*22mm | IP: | TCP, UDP, TCP/IP, ARP, ICMP, DHCP, HTTP, HTTPS, SSH, SNMP, FTP, DNS |
|---|---|---|---|
| Video Output/input: | LAN/WAN | ADSL: | 4MHZ,8MHZ |
| Power Input: | 7.4-24V | Time Delay: | 10MS |
| Port Numbers: | 1 Port Full Duplex Baud Rate Adjustable | Transmission Range: | 3-7 Km Depending On The Network |
| Power: | 0.1-1W Adjustable | ||
| High Light: | MIMO Wireless digital data link,8MHZ digital data link,4MHZ wireless data link |
||

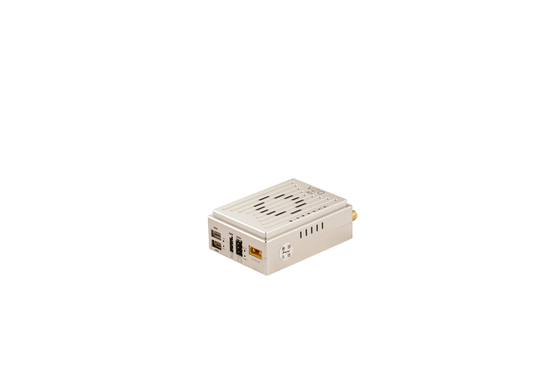

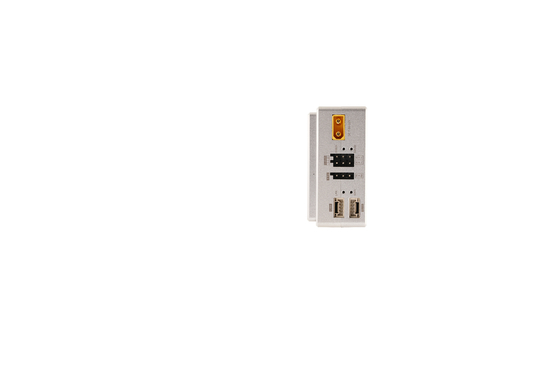

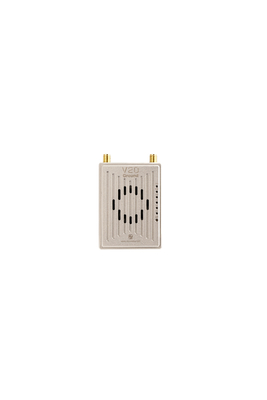

The V20 all-in-one module is a 2*2MIMO wireless digital data link that is equipped with 10/100 Ethernet video transmission and serial gateway functions, and can transmit remote control, data, and video signals simultaneously.Small size, high integration and high sensitivbity.
Product features
Adopt 2*2 MIMO wireless digital data link
10/100 Ethernet video link
Serial gateway function
Transmit video,data,remote control signal simultaneously
Compact size,high integration,high sensitivity
| V20 video data RC link | ||
| frequency | 2.3G 2.4G 2.5G | 2.304-2.390GHZ 2.402-2.482GHZ 2.500-2.570GHZ |
| power | 0.1-1W | adjustable |
| transmission range | 3-7km | depending on the network |
| S-BUS port | S-BUS*2 | NA |
| port numbers | 1port | full duplex baud rate adjustable |
| time delay | 10MS | NA |
| power input | 7.4-24V | NA |
| ADSL | 4MHZ,8MHZ | options |
| Video output/input | LAN/WAN | NA |
| Dimension | 65mm*47mm*22mm | |
| IP | TCP UDP TCP/IP ARP ICMP DHCP HTTP HTTPS*, SSH* SNMP FTP DNS | |
