Product Details:
|
| Overall Weight: | 40g(Exclude Antennas) | Overall Dimension: | 62mm*40mm*13mm |
|---|---|---|---|
| Working Frequency: | 900MHz(P900) 840MHz(P840) 400MHz(P400) P900(standard) | Power Supply Voltage: | DC7.4-24V 3-6S Battery |
| Power Supply Current: | 500mA 12V Power Supply | Serial Port: | TTL RS232(optional) |
| Baud Rate: | 9600bps~230400bps | Data Port: | GH1.25-4P&USB Type-c |
| RF Power: | 20-30dBm | Antenna: | 2-4dBi Rod Antenna |
| Operating Temperature: | -30℃~+50℃ | Transmission Range: | 30-60km Depend On Environment |
| Power Supply Port: | Type-c(ground),XT30(Airborne) |

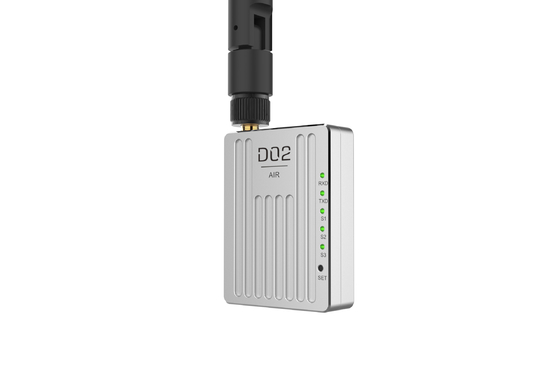

D02 is a data link working in 900MHz frequency band,and the transmission range can reach 30km.It supports point to point,reply,point to multipoint communication.With the compact size,high integration,high sensitivity,D02 is ideal for aerial service.It has dual SUB and TTL/232 interfaces, free and easy-to-use visual parameter adjustment software, Micohard P900/P940/HP840 modules, 30km transmission distance, point-to-multi, relay, point-to-multi, high-speed frequency hopping and other features.
Product Features

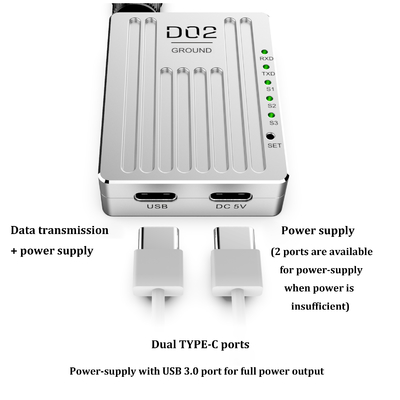

Double USB port,TTL/232

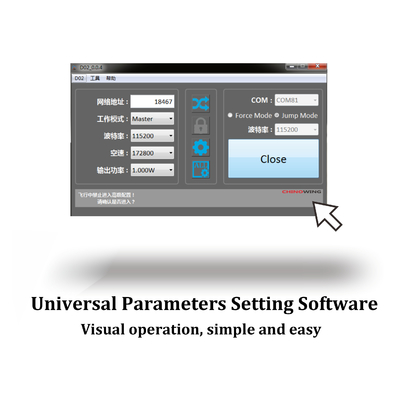

Parameter setting software
Developed based on P900/P840/HP840
30km transmission range
Point to Point,relay,Point to Multipoint
High speed frequency hopping
Product Parameters
| Item | Parameters | Details |
| Overall weight | 40g | Exclude antennas |
| Overall dimension | 62mm*40mm*13mm | NA |
| Working frequency | 900MHz(P900) 840MHz(P840) 400MHz(P400) |
P900(standard) |
| Power supply voltage | DC7.4-24V | 3-6S battery |
| Power supply current | 500mA | 12V power supply |
| Serial port | TTL | RS232(optional) |
| Baud rate | 9600bps~230400bps | |
| Data port | GH1.25-4P&USB Type-c | |
| RF power | 20-30dBm | |
| Antenna | 2-4dBi rod antenna | |
| Operating temperature | -30℃~+50℃ | |
| Transmission range | 30-60km | Depend on environment |
| Power supply port | Type-c(Ground), XT30(Airborne) |
FAQ:
Q: Who we are?
A: We are a world-leading high-tech enterprise specializing in the R&D and production of dual-screen ground control stations, portable ground control stations, military ground control stations and data link modules.
Q: Could you support OEM&ODM ?
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q. How long is the delivery time ?.
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days..
Q. How do we make a business long term and good relationship with you?
A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
Q: How can you guarantee quality?
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
