1060g universal GCS Ground Control Station 2xSBUS Ports 8h Full Battery

1060g universal GCS Ground Control Station 2xSBUS Ports 8h Full Battery

1060g universal GCS Ground Control Station 2xSBUS Ports 8h Full Battery
1060g universal GCS Ground Control Station 2xSBUS Ports 8h Full Battery 1060g universal GCS Ground Control Station 2xSBUS Ports 8h Full Battery 1060g universal GCS Ground Control Station 2xSBUS Ports 8h Full Battery 1060g universal GCS Ground Control Station 2xSBUS Ports 8h Full Battery

Large Image :  1060g universal GCS Ground Control Station 2xSBUS Ports 8h Full Battery

Product Details:
Place of Origin: China
Brand Name: CHINOWING
Certification: FCC CE KC
Model Number: T16
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD$2641.5925
Packaging Details: Plastic suitcase+ carton packing
Delivery Time: 2-8 working days
Payment Terms: T/T
Supply Ability: 1-10000PCS

1060g universal GCS Ground Control Station 2xSBUS Ports 8h Full Battery

Description
Channel: 22 Physical Channels Frequency: 806-826MHz 1427.9-1447.9MHz 2401.5-2481.5MHz
RF Power: V21: 0.1-0.5w(adjustable) Remote Control Latency: 30ms
Battery Capacity: 8.4V/6800mAh Built In Battery,external Battery Supported Duration: 8h@full Battery Capacity
Weight: 1060g SBUS: 2*SBUS Ports
Video&data Link: Built-in Joystick: Left And Right Handed Mode/back Center Mode/hall Effect
Other Channel: Auxiliary Joystick*2 Position Switch*4 Knob*2 Key Button*8 Pull Wheel*2 Mobile Device: 5-10.1inch Mobile Device
System: Windows10/Android IP Rating: IP 53
External Interface: USB3.0 LAN Operating Temperature: -10~+60℃
Dimension: 290mm*150mm*60mm Remote Control Range: 5-17km
High Light:

1060g GCS Ground Control Station

,

8h Battery GCS Ground Control Station

,

1060g universal ground control station

1060g T16 hand held ground control station with mobile device

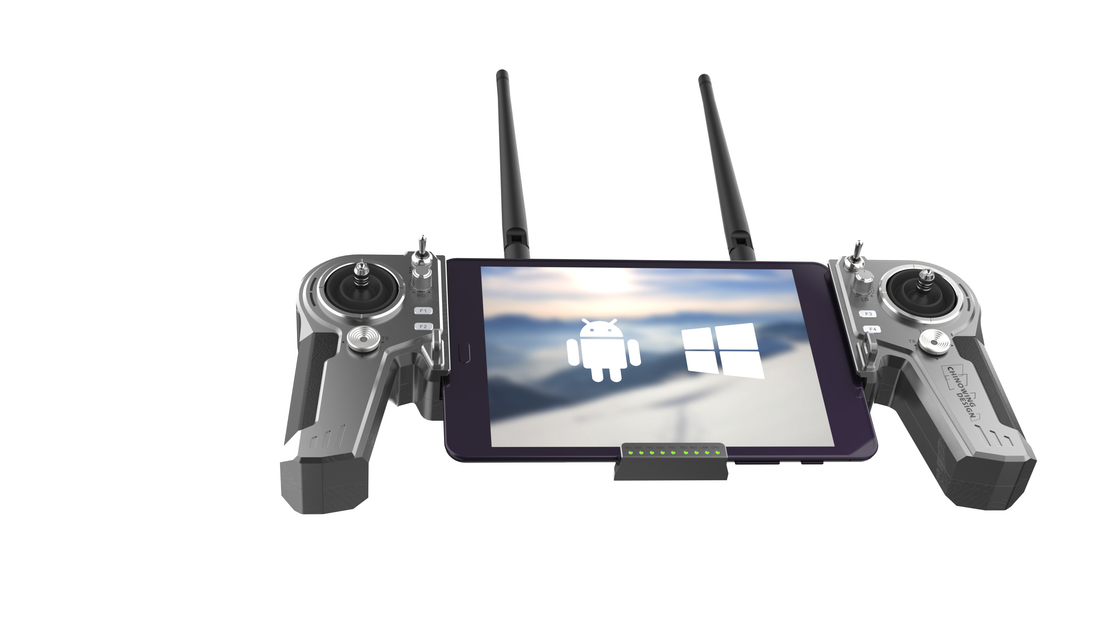

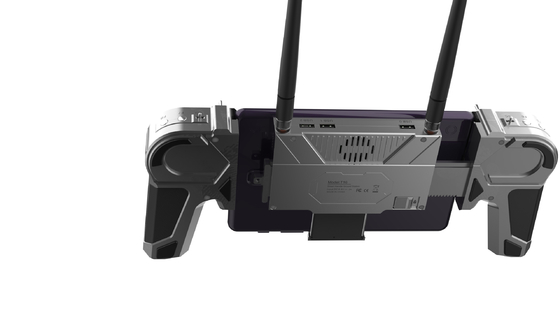

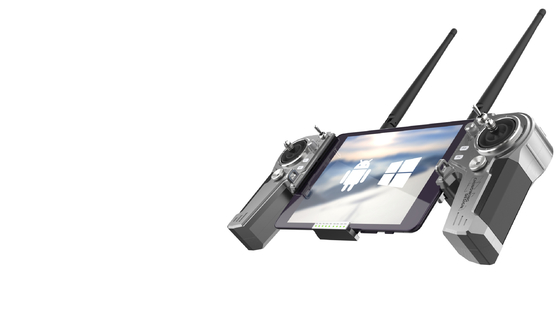

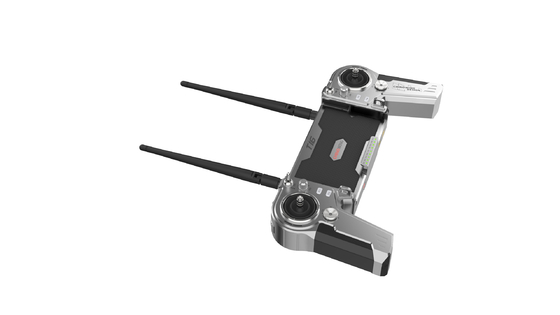

The T16 Portable GCS is a lightweight, compact and portable solution that allows users to safely and easily operate drones and payloads. Supporting Windows and Android.With the support of Windows and Android, T16 can control the aircraft, the payload, and display real-time flight status, as well as support various tablets and smartphones.Secure, stable, and easy-to-operate military grade data link. Ease of operation and transportation.



Product features

Main and secondary joysticks,porgrammable dual SBUS independent output

10 linear channels meeting various control demand

Multiple joystick options,left and right handed mode,back center mode,indutrail hall effect joystick

Universal platform,compatible with the most flight controllers

Remote control ,telemetry data, real time HD video display,suitable for individual operation

The physical channel supports USB HID input to the computer,with up to 8 quick buttons available for quick ground station operation

Long endurance, up to 8 h with full battery capacity, meanwhile supporting external battery powering

Programmable dual SBUS independent output,able to control the payload and the drone

800MHz, 1.4GHz, 2.4GHz can be chosen in the software  communication range 10km+









1060g universal GCS Ground Control Station 2xSBUS Ports 8h Full Battery 01060g universal GCS Ground Control Station 2xSBUS Ports 8h Full Battery 11060g universal GCS Ground Control Station 2xSBUS Ports 8h Full Battery 21060g universal GCS Ground Control Station 2xSBUS Ports 8h Full Battery 3









Remote controller T16



T16 GCS

Channel 22 physical channels joystick left and right handed mode/ back center mode/hall effect
Frequency 806-826MHz 1427.9-1447.9MHz 2401.5-2481.5MHz Other channels Auxiliary joystick*2 position switch*4 knob*2 Key button*8 Pull wheel*2
RF power V21:0.1-0.5w(adjustable) Mobile devices 5-10.1 inch Mobile device
Remote control latency 30ms System Windows10/Android
Battery capacity 8.4V/6800mAH built-in battery, external battery supported IP rating IP53
Duration 8H with full capacity External interface USB3.0 LAN
Weight 1060g Operating environment -10~60℃
S-BUS 2*SUBS ports Dimension 290mm*150mm*60mm
Video&data link Built- in Remote control range 5-17km
