Remote Control 800MHZ T40 Ground Control Station Dual SBUS For Drone

T40 is a portable and universal ground control station for controling the UAV, UGV, robots, and other remote-controlled vehicles.

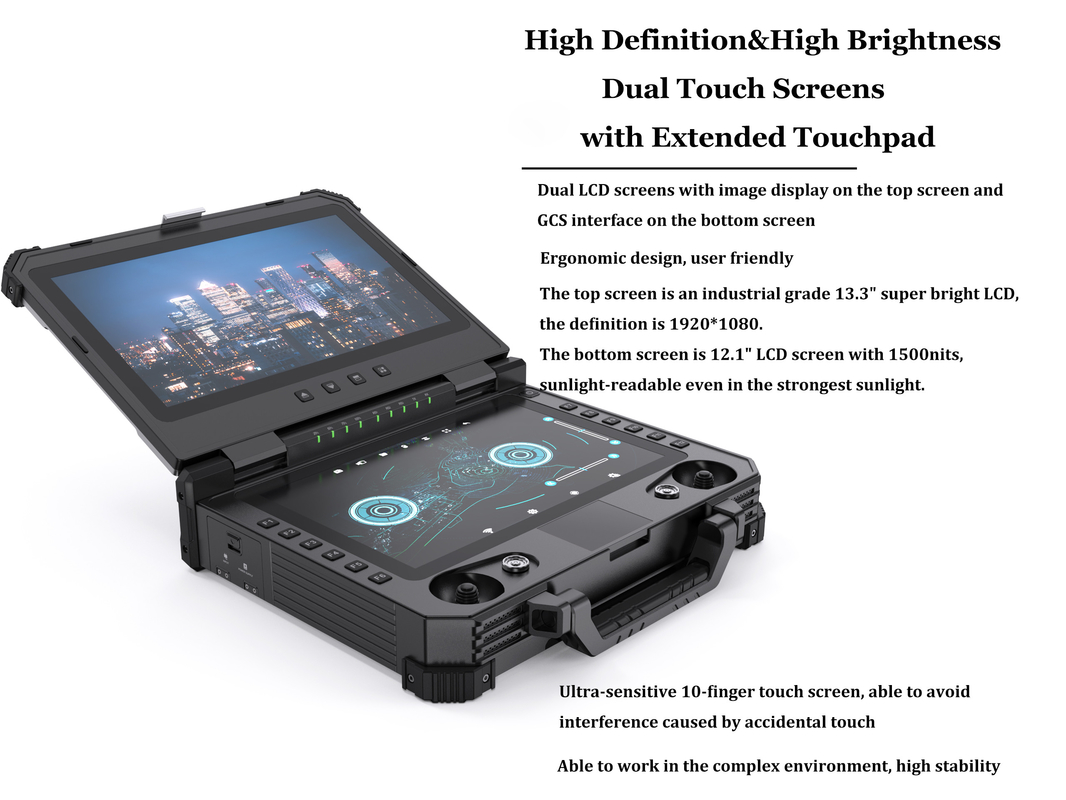

It has two screens,one 13.3inch 1920*1080 1000CCD and one 12.1inch 1280*800 1500CCD. The displays are fully sunlight viewable.

T40 is a highly integrated system and has the function such as  video transmission,data transmission,remote control,video display.

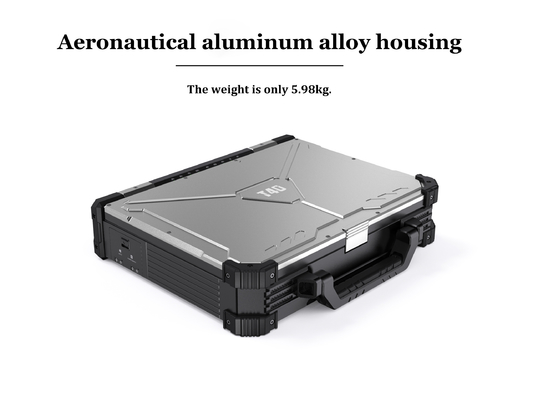

With the aviation-grade aluminum alloy shell,the overall weight is only 5.98kg.

The remote control system has 4 joysticks for use, it also supports traditional RC access for remote control.

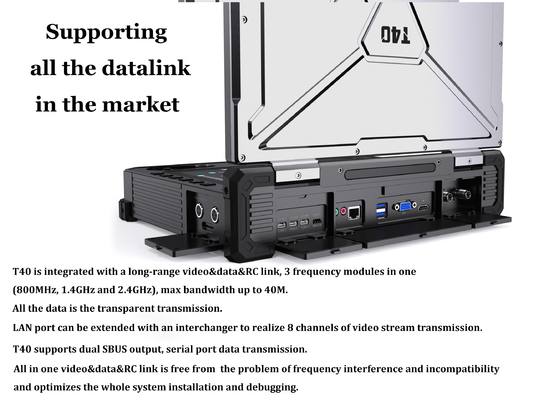

Add HID USB and programmable switches that can be set in the software.Various external input and output ports make it convenient to integrate with the 3rd party data link. It is especially suitable for UAV,UGV,USV,etc.

The T40 features 27 physical channels and a Remote control configuration interface that allows users to assign joysticks,switches,and buttons to specific channels. With a lightweight aluminum alloy shell and 3-in-1 communication,the T40 provides a reliable and versatile solution.

Features

Aviation grade aluminum shell, the overall weight only 5.98kg.

Built on Intel-based PC, real industrial-grade GCS

Dual touch screens with high definition and brightness and extended touchpad.

Video & telemetry & RC& computer in one

Dual SBUS output, able to control the drone and the payload simultaneously

Compatible with 100% data link in the market.

Parameters

Overall

Overall weight: 5.98kg

Dimension: 354mm(L)*280mm(W)*80mm(H)

Operation temperature: -20℃-+60℃

Battery capacity: 16.8V/13600mAh (external battery also supported)

Endurance: 3h@full battery capacity

Communication system:

V30(10km grade)

V21(10km grade)

Supporting the 3^rd party communication

Antennas: 4dBi rod antenna/10dBi fiber-glass epoxy antenna(other antennas also can be connected externally)

Computer

Display screen: 13.3inch 1920*1080 1000CCD(top screen);

12.1inch 1280*800 1500CCD(bottom screen)

Operating system: win10/Linux

CPU: Intel i7 8565U(standard)/Intel 10500U(upgrade for future)

Memory: 8G(standard)

Storage: 256GB SSD(standard)

Network: WIFI, Bluetooth(standard)/4G(optional)

Remote control system

Physical channel: 27

Main joystick: 2(industrial joysticks with hall sensors)

Auxiliary rocker: 4

Key buttons: 12

Simulate keystrokes: 7

Remote control latency: 30ms

Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface: USB HID device

Interfaces

Serial port: RS232*3, SBUS in/out

External interface: USB3.0, LAN, HDMI in, VGA out, Hi-fi

Charging port: DC16.8V

Airborne unit

V30 HDMI(10km grade video&data&RC link)

Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, the frequency can be changed in the software)

Transmission range: 10km@LOS condition

Bandwidth: 10/20MHz

Data rates: 2-12Mbps

Power voltage: 7.4-12v

RF power: 0.1w-1w(adjustable)

Operation current: 260mA@12v power input

Video definition supported: 1080P60 Max

Weight: 120g(exclude antennas)

Dimension: 91mm*57mm*20mm

Interface

Video input interface: HDMI&CVBS

UART port: 1

SBUS port: 2

Power supply interface: XT30

V21 LAN(10km grade video&data&RC link)

Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, the frequency can be changed in the software)

Transmission range: 10km@LOS condition

Bandwidth: 1.4M-20MHz(1.4M/3M/5M/10M/20M)

Data rates: 2-12Mbps

Power voltage: 7.4-12v

RF power: 0.1w-1w(adjustable)

Operation current: 260mA@12v power input

Video definition supported: 1080P60 Max

Weight: 120g(exclude antennas)

Dimension: 91mm*57mm*20mm

Interface

Video input interface: HDMI&CVBS

UART port: 1

SBUS port: 2

Power supply interface: XT30
