Product Details:
|
| SBUS: | Dual SBUS Independent Output,HID Input | Video System: | Built-in |
|---|---|---|---|
| Channel: | 27 Physical Channels | Remote Control Latency: | 30ms |
| Antenna: | 4dB Rod Antenna/10dBi Fibre-glass Epoxy Antenna (other Antennas Also Can Be Connected Externally) | Sub-channel: | Main Joysticks*2 (industrial Joysticks With Hall Sensors) Sub Joysticks*4 Key Button*12 Simulate Keystrokes*7 |
| Remote Control Range: | 5-20km | RF Power: | V20:0.1-1W(adjustable) V21:0.1-1W(adjustable) V30:0.1-1W(adjustable) |
| Frequency: | 800MHZ/902-920MHZ 1.4Ghz/2.3Ghz/2.4GHz/2.5GHz | Battery Capacity: | 16.8V/13600mAh（external Battery Also Supported） |
| Screen: | 13.3inch 1920*1080 1000CCD+ 12.1inch 1280*800 1500CCD | Touch Panel: | Capacitive 10-finger Multi-touch Display |
| CPU: | Intel I7 8565U/10500U | ROM: | 8GB |
| Storage: | 256GB | System: | Win7/Win10/Linux |
| Network: | WIFI/Bluetooth/4G | External Interface: | USB3.0 LAN HDMI In，VGA Out，Hi-fi |
| Serial Port: | RS232*3 SBUS Out/in | Power Suply Interface: | DC16.8V |
| Operating Temperature: | -20~+60℃ | Dimension: | 354mm*280mm*80mm |
| Overall Weight: | 5980g | ||
| High Light: | dual screen GCS Ground Control Station,FCC GCS Ground Control Station,CE ground station for drone |
||

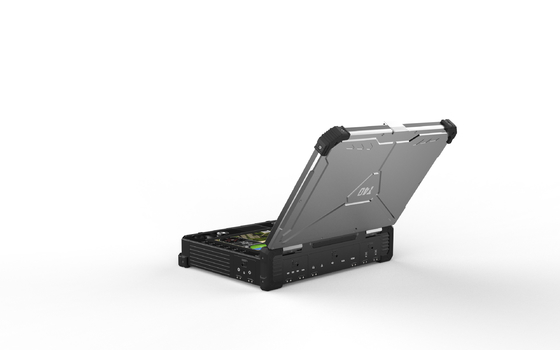

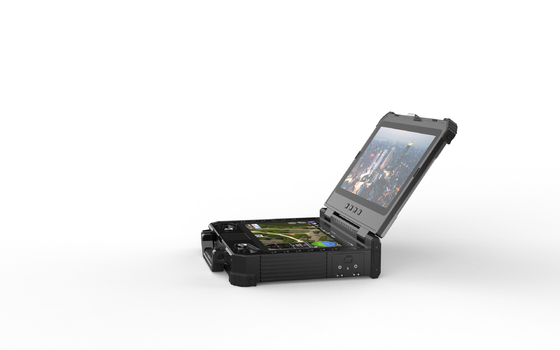

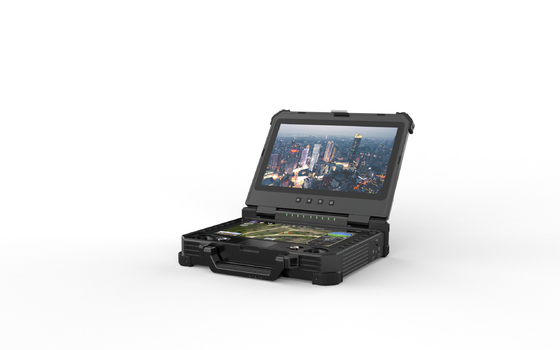

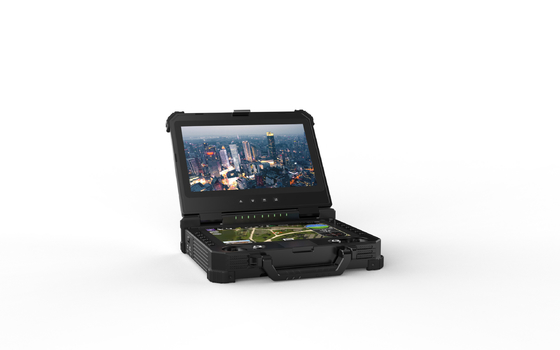

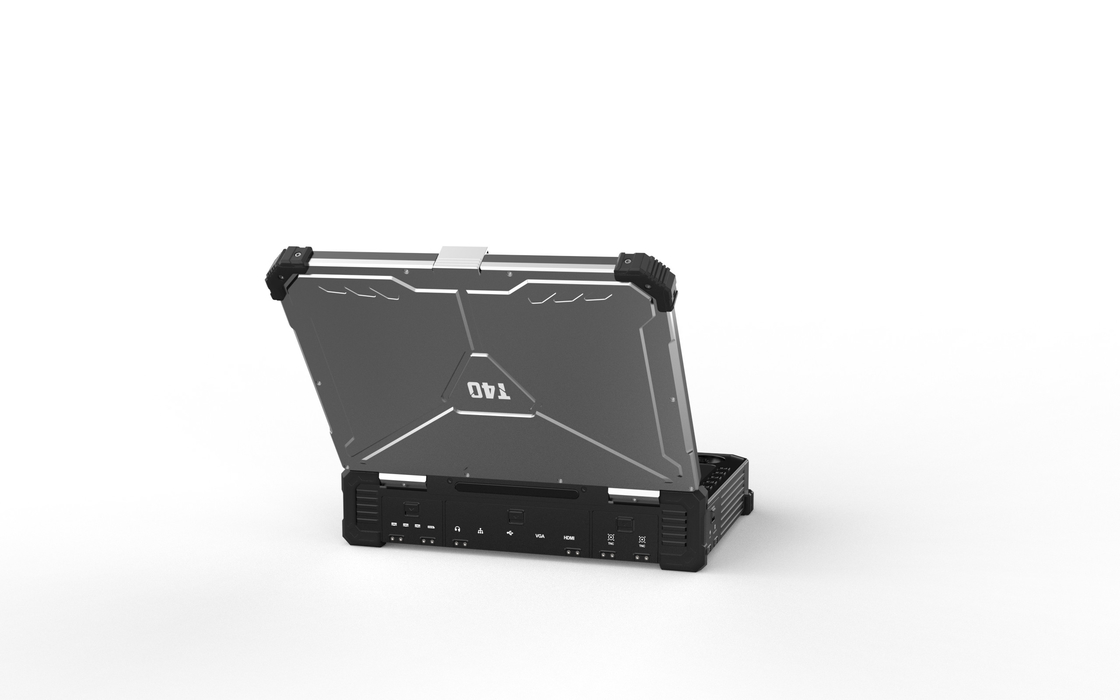

5.98kg T40 dual screen ground control station for unmanned vehicle
The T40 GCS offers a highly integrated solution for unmanned vehicle and payload control. Its dual screens have the capability to send data and video simultaneously, as well as provide remote control and video display. With the aviation-grade aluminum alloy shell, the overall weight is a mere 5.98kg.
A variety of external input and output ports make it convenient for integration with the 3rd party data link for UAV,UGV,USV,etc. It also supports traditional RC control access through a joystick and programmable switches. The remote control system is especially suitable for UAV,UGV,USV operation.
Product features
Aviation grade aluminum shell,the overall weight only 5.98kg
Dual touch screens with high definition and brightness and extended touch pad
Programmable channels,supporting traditional RC access.
Add HID USB and programmable switches that can be set in the software
Compatible with 100% data link in the market
Parameters
| T40 GCS | |||
| SBUS | Dual SBUS independent output,HID input ,able to control the vehicle and the payload simultaneously | Screen | 13.3inch 1920*1080 1000CCD(Top screen) 12.1inch 1280*800 1500CCD(bottom screen) |
| Video system | Built-in | Touch panel | Capacitive 10-finger multi-touch display |
| Channel | 27 physical channels | CPU | Intel i7 8565U(standard)/Intel 10500U(upgrade for future) |
| Remote control latency | 30ms | ROM | 8GB |
| Antenna | 4dBi rod antenna/10dBi fiber-glass epoxy antenna(other antennas also can be connected externally) | Storage | 256GB |
| Sub-Channel | Main joystick*2(industrial joysticks with hall sensors) Sub joysticks*4 Key button*12 Simulate keystrokes*7 Auxiliary rocker*4 | System | Win7/Win10/Linux |
| Remote control range | 5km-20km | Network | WIFI, Bluetooth(standard)/4G(optional) |
| RF power | V20:0.1-1w(adjustable) V21:0.1-1w(adjustable) V30:0.1-1w(adjustable) | External interface | USB3.0,LAN,HDMI in,VGA out,Hi-fi |
| Frequency | 800MHZ/902-920MHZ 1.4Ghz/2.3Ghz/2.4Ghz/2.5Ghz | Serial port | RS232*3,SBUS out/in |
| Battery capacity | 16.8V/13600mAh(external battery also supported) | Power supply interface | DC16.8V |
| Endurance | 3 hours | Operation temperature | -20~+60℃ |
| Communication system | V30(10km grade) V21(10km grade) Supporting the 3rd party communication | Dimension | 354mmL*280mmW*80mmH |
| Function | Control system,Mission planning,Video Review | Overall weight | 5980g |
