Product Details:
|
| Channel: | 22 Physical Channels | Frequency: | 806-826MHz 1427.9-1447.9MHz 2401.5-2481.5MHz |
|---|---|---|---|
| RF Power: | V21: 0.1-0.5w(adjustable) | Remote Control Latency: | 30ms |
| Battery Capacity: | 8.4V/6800mAh Built In Battery，external Battery Supported | Duration: | 8h@full Battery Capacity |
| Weight: | 1060g | SBUS: | 2*SBUS Ports |
| Video&data Link: | Built-in | Joystick: | Left And Right Handed Mode/back Center Mode/hall Effect |
| Other Channels: | Auxiliary Joystick*2 Position Switch*4 Knob*2 Key Button*8 Pull Wheel*2 | Mobile Devices: | 5-10.1 Inch Mobile Device |
| System: | Windows10/Android | IP Rating: | IP 53 |
| External Interface: | USB3.0 LAN | Operating Temperature: | -10~+60℃ |
| Dimension: | 290mm*150mm*60mm | Remote Control Range: | 5-17km |
| High Light: | 1060g Android Ground Control Station,FCC Android Ground Control Station,KC Uav Ground Control System |
||

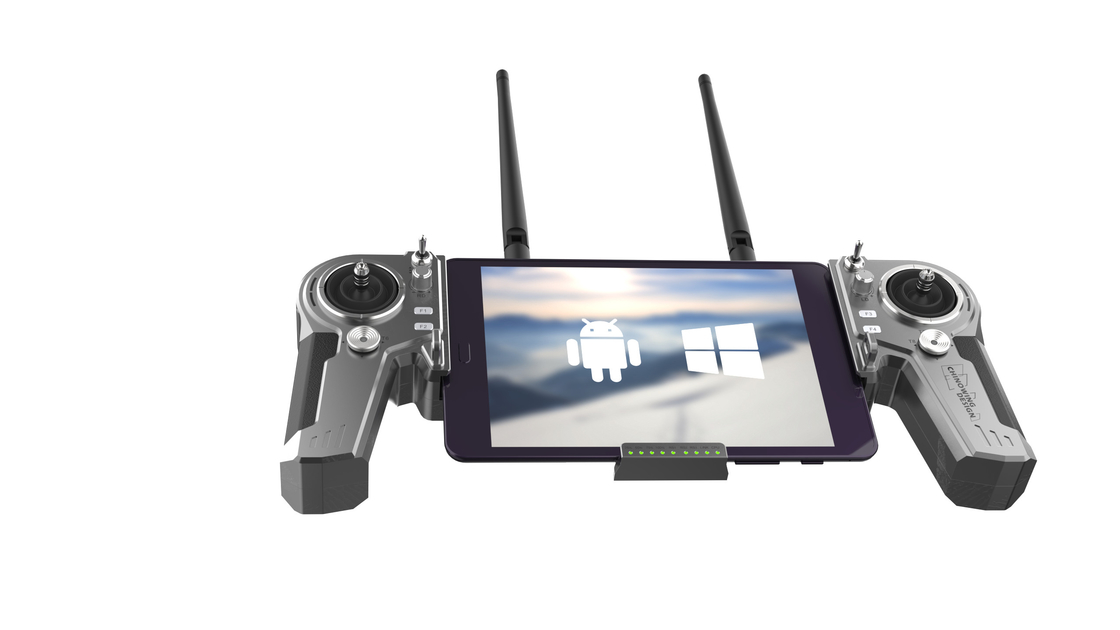

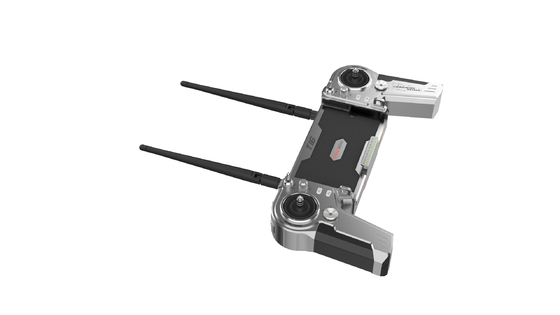

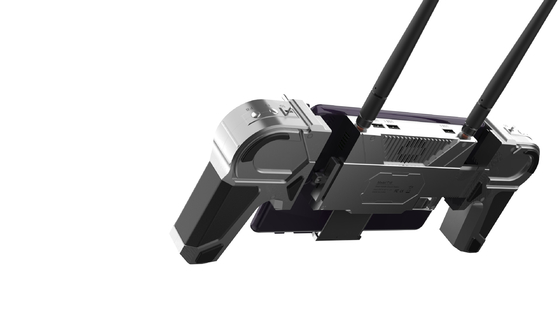

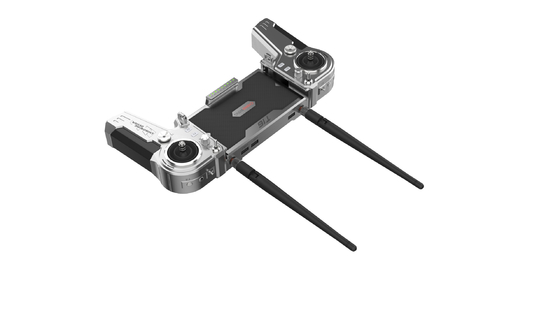

T16 hand held ground control station with 5-10.1inch mobile device
T16 is a portable and compact ground control station (GCS), which is designed to be operated conveniently, safely, and efficiently, especially for individual use. Supporting iOS and Android systems, T16 allows control of the drone and its payload, as well as displaying real-time on-board status. The military-grade data link ensures flight stability and safety.
Product features
A main joystick and a secondary joystick, programmable dual SBUS outputs, independent operation
Featuring 10 liner channels to meet a range of control requirements
There are multiple joystick options, including left- and right-handed versions, back center modes, and hall effect joysticks.
Universal platform,compatible with the most flight controllers
Remote control.temetry data,real-time HD video display,suitable for individual operation
In order to ensure quick ground station operation, eight quick keys are equipped with USB HID input that supports USB HID input from the computer.
Dual SBUS independent output programable, capable of controlling the drone and the payload
The range of the soft-ware communication can be up to 10km with 800MHz, 1.4GHz, or 2.4GHz
Remote controller T16
| T16 GCS | |||
| Channel | 22 physical channels | joystick | left and right handed mode/ back center mode/hall effect |
| Frequency | 806-826MHz 1427.9-1447.9MHz 2401.5-2481.5MHz | Other channels | Auxiliary joystick*2 position switch*4 knob*2 Key button*8 Pull wheel*2 |
| RF power | V21:0.1-0.5w(adjustable) | Mobile devices | 5-10.1 inch Mobile device |
| Remote control latency | 30ms | System | Windows10/Android |
| Battery capacity | 8.4V/6800mAH built-in battery, external battery supported | IP rating | IP53 |
| Duration | 8H with full capacity | External interface | USB3.0 LAN |
| Weight | 1060g | Operating environment | -10~60℃ |
| S-BUS | 2*SUBS ports | Dimension | 290mm*150mm*60mm |
| Video&data link | Built- in | Remote control range | 5-17km |
