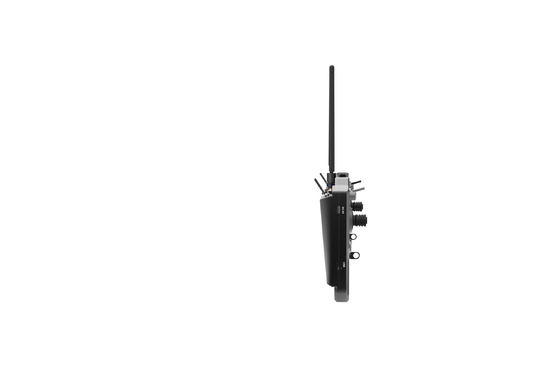

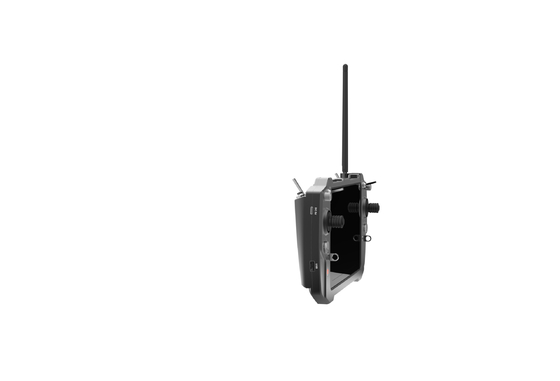

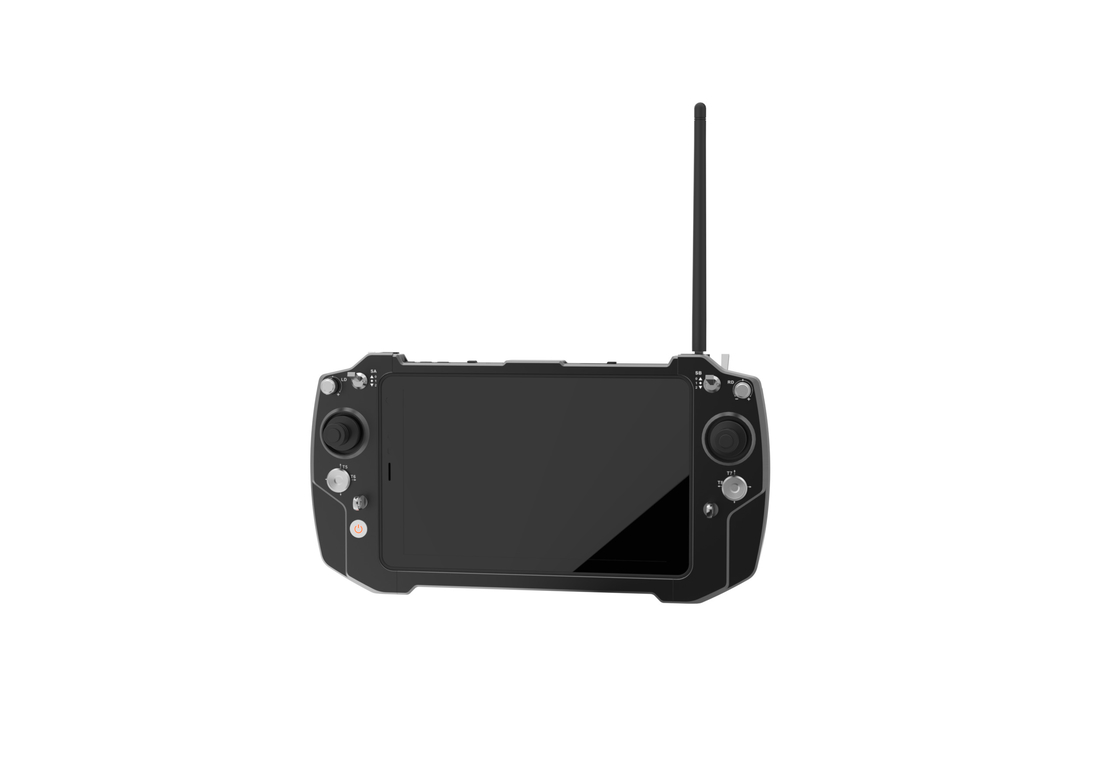

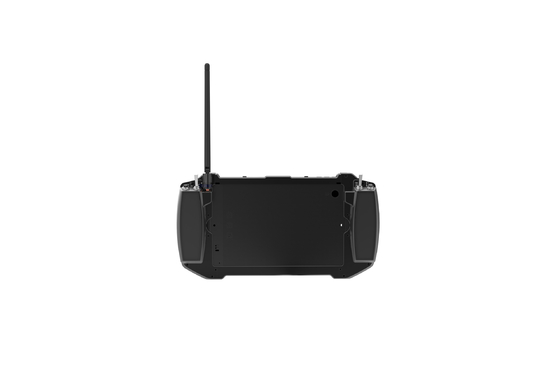

USB2.0 Android Ground Control Station , Handheld Drone Gcs

USB2.0 Android Ground Control Station , Handheld Drone Gcs
USB2.0 Android Ground Control Station , Handheld Drone Gcs USB2.0 Android Ground Control Station , Handheld Drone Gcs USB2.0 Android Ground Control Station , Handheld Drone Gcs USB2.0 Android Ground Control Station , Handheld Drone Gcs USB2.0 Android Ground Control Station , Handheld Drone Gcs

Large Image :  USB2.0 Android Ground Control Station , Handheld Drone Gcs

Product Details:
Place of Origin: CHINA
Brand Name: CHINOWING
Model Number: T21
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD$1,600.0-USD$1,900.0
Packaging Details: Plastic suitcase+ carton packing
Delivery Time: 2-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 1-10000PCS

USB2.0 Android Ground Control Station , Handheld Drone Gcs

Description
Weight: 1kg Joysticks: 4
Operating System: Windows10 Physical Channel: 16
CPU: Intel Cherry Trail Z8350 Extermal Port: USB2.0
High Light:

USB2.0 Android Ground Control Station

,

Android Ground Control Station Gcs

,

Handheld Drone Gcs

T21 Handheld Ground Control Station GCS Built On The Windows 10 OS, Only 1kg





The T21 hand-held ground control station is a portable industrial-grade ground computer station with a dual SBUS design. Telemetry&RC link developed based on P900 module is built-in T21 GCS.



T21 provides functions such as mission planning, attitude control, payload control, navigation & positioning, remote monitoring, etc.



The overall weight is only 1kg, easy to carry, and easy to use.



Industrial-grade computer and military-grade data link ensure the safety and stability of the flight. Easy operation and transportation. It has been widely used in unmanned aerial vehicles, ground robots, bomb disposal robots, remotely operated vehicles (ROV) and other robotic devices.



Product Features

  • Operating system: Windows10

  • 2 main joysticks and 2 auxiliary joysticks
  • Multiple joystick options left and right-handed mode, back center mode, industrial hall effect joystick
  • All the channels can be self-defined in the RC software
  • The overall weight is only 1kg, easy to carry, and easy to use.

  • Front and rear cameras that can do face verification to unlock the computer to secure aircraft controls.

USB2.0 Android Ground Control Station , Handheld Drone Gcs 0USB2.0 Android Ground Control Station , Handheld Drone Gcs 1USB2.0 Android Ground Control Station , Handheld Drone Gcs 2USB2.0 Android Ground Control Station , Handheld Drone Gcs 3









Remote controller T21

Overall weight:                            1000g

Dimension:                                  300mm*160mm*40mm

Operation temperature:               -10~+50℃

IP rating:                                      IP53

RF power:                                   0.1-1w(adjustable)

Remote control latency:              30ms

Antenna:                                     2dB rod antenna

Package dimension:                   370mm*285mm*105mm

Channel:                                    16 programmable Channels

Main Joystick:                            2 ((left and right-handed mode/ back to center mode/Hall effect)

Auxiliary joystick:                       2

3-position switch:                       4

Knob:                                         2

Key button:                                2

Interface


SBUS port:                                Dual SBUS ports with HID input

External interface:                     USB2.0

Charging port:                            TYPC 5V



Computer

Display Screen:                            8inch/1280*720

Brightness:                                   350CCD

CPU:                                             Intel Cherry Trail Z8350

Memory:                                      4G

Hard disk:                                     64G

Network:                                       WIFI/Bluetooth/4G

Operating system:                       Win10(standard)

Touch panel:                               10 points capacitive touch screen

Battery:                                        3.7V/7500mAh

Endurance:                                   4h

Loudspeaker:                               Built-in



Airborne unit

R20 telemetry&RC link

Frequency:                                     900MHz(902-920MHz) Mircohard P900 module

Transmission range:                      5km-50km(Depend on the environment)

Power voltage:                               7.4v-12v

Operation current:                       100mA@12v power supply

Operation temperature:                -10~+50℃

RF power:                                       0.1w-1w

Antenna:                                         2dB rod antenna

Weight:                                           43g(exclude antennas)

Dimension:                                      53mm*40mm*14mm

Interface:                                         Serial port*1

SBUS port:                                      2

Power input interface:                     XT30
