Product Details:
|
| Channel: | 16 Channel*2 | Frequency: | 902-928MHZ |
|---|---|---|---|
| RF Power: | R20:0.1-1W(adjustable) | Remote Control Range: | 5-30km(based On The Environment) |
| Remote Control Latency: | 10ms | Battery Capacity: | 3.7V/7500mah |
| Duration: | 3H With Full Capacity | Dimension: | 300mm*160mm*40mm |
| Weight: | 1.2kg | System: | Windows 10 |
| Screen: | 8inch+1280*720+350CCD | Resolution: | 1280*720 |
| CPU: | Intel Intel Cherry Trail Z8350 | ROM: | 4GB DDR3 |
| Storage: | 64GB | IP Rating: | IP53 |
| External Interface: | USB2.0 | ||
| High Light: | Dual SBUS Ground Station For Drone,Ground Station For Drone 1.2kg,Windows10 drone gcs |
||

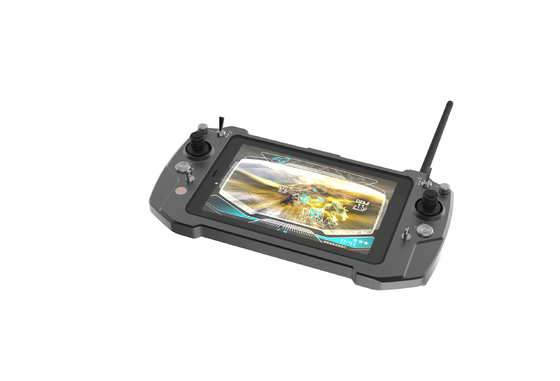

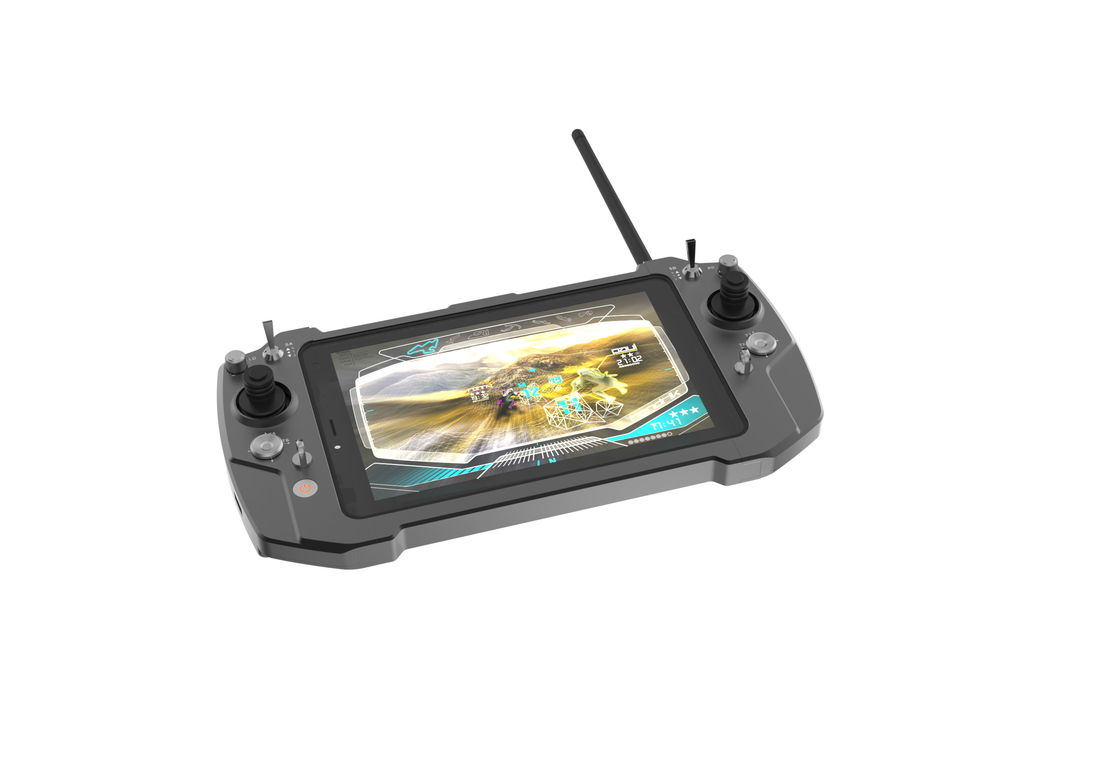

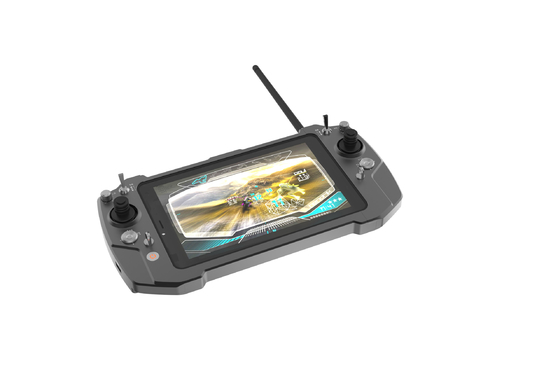

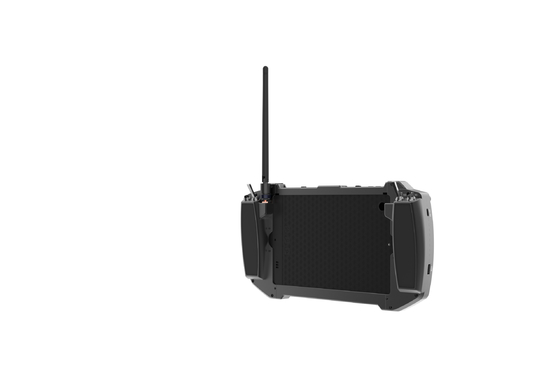

T21 video&data&RC all in one hand-held ground control station
Designed specifically for industrial use, the T21 is a dual-SBUS ground station that is independent and programmed.Besides assisting with mission planning, attitude control, payload control, navigation and positioning, its functions include remote monitoring.
The flight is stabilized and safe due to high-quality data links and industrial-grade computers. Easily operated and transported.
Product Features
Operating system: Windows10
The overall weight is only 1kg, easy to carry, and easy to use.
Remote controller T21
Overall weight: 1000g
Dimension: 300mm*160mm*40mm
Operation temperature: -10~+50℃
IP rating: IP53
RF power: 0.1-1w(adjustable)
Remote control latency: 30ms
Antenna: 2dB rod antenna
Package dimension: 370mm*285mm*105mm
Channel: 16 programmable Channels
Main Joystick: 2 ((left and right-handed mode/ back to center mode/Hall effect)
Auxiliary joystick: 2
3-position switch: 4
Knob: 2
Key button: 2
Interface
SBUS port: Dual SBUS ports with HID input
External interface: USB2.0
Charging port: TYPC 5V
Computer
Display Screen: 8inch/1280*720
Brightness: 350CCD
CPU: Intel Cherry Trail Z8350
Memory: 4G
Hard disk: 64G
Network: WIFI/Bluetooth/4G
Operating system: Win10(standard)
Touch panel: 10 points capacitive touch screen
Battery: 3.7V/7500mAh
Endurance: 4h
Loudspeaker: Built-in
Airborne unit
R20 telemetry&RC link
Frequency: 900MHz(902-920MHz) Mircohard P900 module
Transmission range: 5km-50km(Depend on the environment)
Power voltage: 7.4v-12v
Operation current: 100mA@12v power supply
Operation temperature: -10~+50℃
RF power: 0.1w-1w
Antenna: 2dB rod antenna
Weight: 43g(exclude antennas)
Dimension: 53mm*40mm*14mm
Interface: Serial port*1
SBUS port: 2
Power input interface: XT30
