Windows10 GCS Ground Control Station 902-928MHZ 5-30km Remote control range

Windows10 GCS Ground Control Station 902-928MHZ 5-30km Remote control range

Windows10 GCS Ground Control Station 902-928MHZ 5-30km Remote control range
Windows10 GCS Ground Control Station 902-928MHZ 5-30km Remote control range Windows10 GCS Ground Control Station 902-928MHZ 5-30km Remote control range Windows10 GCS Ground Control Station 902-928MHZ 5-30km Remote control range Windows10 GCS Ground Control Station 902-928MHZ 5-30km Remote control range

Large Image :  Windows10 GCS Ground Control Station 902-928MHZ 5-30km Remote control range

Product Details:
Place of Origin: China
Brand Name: CHINOWING
Certification: FCC CE KC
Model Number: T21
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD$1493.4-USD$1572.0
Packaging Details: Plastic suitcase+ carton packing
Delivery Time: 2-8 working days
Payment Terms: T/T
Supply Ability: 1-10000PCS

Windows10 GCS Ground Control Station 902-928MHZ 5-30km Remote control range

Description
Channel: 16 Channel*2 Frequency: 902-928MHZ
RF Power: R20:0.1-1w(adjustable) Remote Control Range: 5-30km(based On The Environment)
Remote Control Latency: 10ms Battery Capacity: 3.7V/7500mah
Duration: 3H With Full Capcity Dimension: 300mm*160mm*40mm
Weight: 1.2kg System: Windows 10
Screen: 8inch+1280*720+350CCD Resolution: 1280*720
CPU: Intel Intel CherryTrail Z8350 ROM: 4G DDR3
Storage: 64GB IP Rating: IP 53
External Interface: USB2.0
High Light:

Windows10 GCS Ground Control Station

,

GCS Ground Control Station 928MHZ

,

30km Ground Control Station

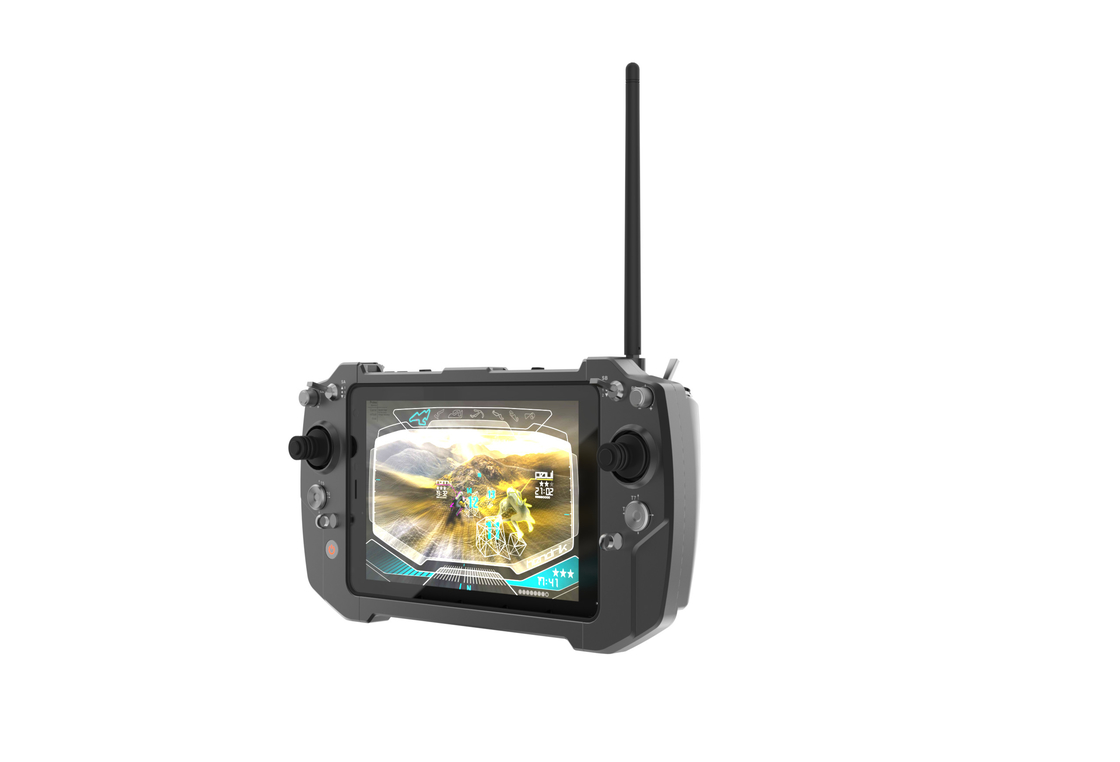

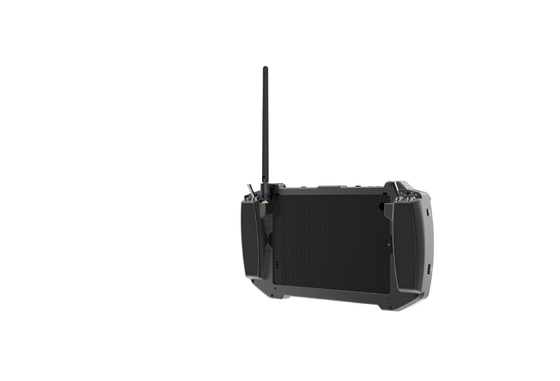

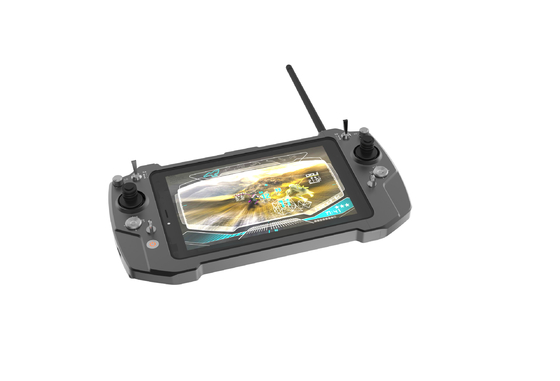

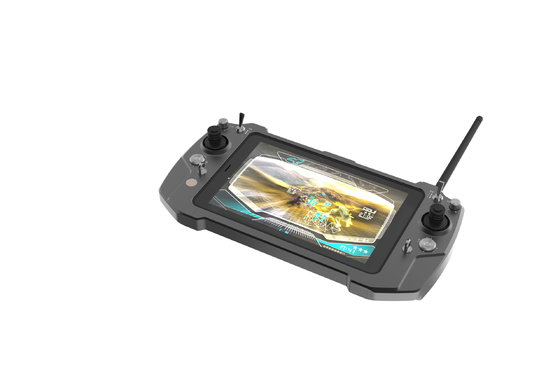

T21 all in one hand held ground control station





Designed for industrial applications, the T21 is an independent programmed dual-SBUS ground control station. It will assist with mission planning, attitude control, payload control, navigation and positioning, as well as remote monitoring.

Data links of the highest quality and industrial-grade computers ensure the stability and safety of the flight. Easily operated and transported.



Product Features

  • Operating system: Windows10

  • 2 main joysticks and 2 auxiliary joysticks
  • Multiple joystick options left and right-handed mode, back center mode, industrial hall effect joystick
  • All the channels can be self-defined in the RC software
  • The overall weight is only 1kg, easy to carry, and easy to use.

  • Front and rear cameras that can do face verification to unlock the computer to secure aircraft controls.

Windows10 GCS Ground Control Station 902-928MHZ 5-30km Remote control range 0Windows10 GCS Ground Control Station 902-928MHZ 5-30km Remote control range 1Windows10 GCS Ground Control Station 902-928MHZ 5-30km Remote control range 2Windows10 GCS Ground Control Station 902-928MHZ 5-30km Remote control range 3









Remote controller T21

Overall weight: 1000g

Dimension: 300mm*160mm*40mm

Operation temperature: -10~+50℃

IP rating: IP53

RF power: 0.1-1w(adjustable)

Remote control latency: 30ms

Antenna: 2dB rod antenna

Package dimension: 370mm*285mm*105mm

Channel: 16 programmable Channels

Main Joystick: 2 ((left and right-handed mode/ back to center mode/Hall effect)

Auxiliary joystick: 2

3-position switch: 4

Knob: 2

Key button: 2

Interface


SBUS port: Dual SBUS ports with HID input

External interface: USB2.0

Charging port: TYPC 5V



Computer

Display Screen: 8inch/1280*720

Brightness: 350CCD

CPU: Intel Cherry Trail Z8350

Memory: 4G

Hard disk: 64G

Network: WIFI/Bluetooth/4G

Operating system: Win10(standard)

Touch panel: 10 points capacitive touch screen

Battery: 3.7V/7500mAh

Endurance: 4h

Loudspeaker: Built-in



Airborne unit

R20 telemetry&RC link

Frequency: 900MHz(902-920MHz) Mircohard P900 module

Transmission range: 5km-50km(Depend on the environment)

Power voltage: 7.4v-12v

Operation current: 100mA@12v power supply

Operation temperature: -10~+50℃

RF power: 0.1w-1w

Antenna: 2dB rod antenna

Weight: 43g(exclude antennas)

Dimension: 53mm*40mm*14mm

Interface: Serial port*1

SBUS port: 2

Power input interface: XT30
