Home ProductsGCS Ground Control Station

T26 all in one hand-held groudn control station

T26 all in one hand-held groudn control station

T26 all in one hand-held groudn control station
T26 all in one hand-held groudn control station T26 all in one hand-held groudn control station T26 all in one hand-held groudn control station T26 all in one hand-held groudn control station

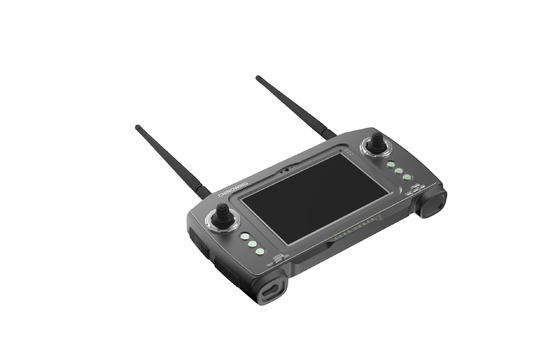

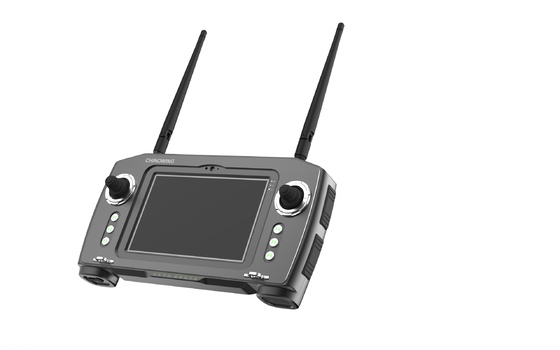

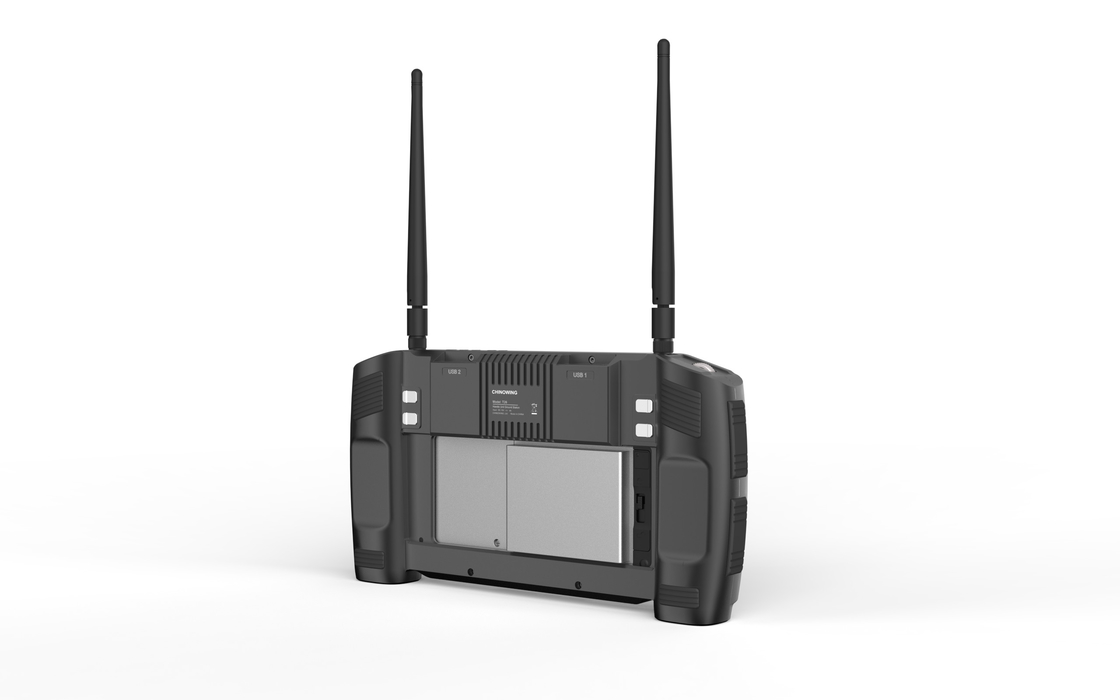

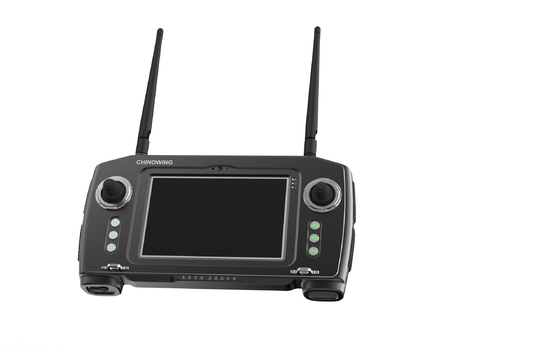

Large Image :  T26 all in one hand-held groudn control station

Product Details:
Place of Origin: China
Brand Name: CHINOWING
Certification: FCC CE KC
Model Number: T26
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD$5648.40-USD$7217.40
Packaging Details: Plastic suitcase+ carton packing
Delivery Time: 2-8 working days
Payment Terms: T/T
Supply Ability: 1-10000PCS

T26 all in one hand-held groudn control station

Description
Channel: 16 Physical Channel Remote Control Range: +V21:10KM
Frequency: +V21:800MHz/1.4GHz/2.4GHz RF Power: V21: 0.1-1w(adjustable)
Remote Control Latency: 40ms Battery Capacity: 7.4V/3220mAh
Duration: 9h With Full Battery Capacity Weight: 1.5kg
Screen: 7inch+industrial Touch Screen+800CCD Sunlight Readable Resolution: 1280*800
Integrated Computer: Panasonic FZ-M1 CPU: Intel I5 7Y57
ROM: 4G Storage: 256GB SSD
System: Windows 10 Dimension: 300mm*158mm*40mm
IP Rating: IP65 Network: WIFI/Bluetooth/4G
External Interface: USB3.0 *2 Operating Temperature: -20~+60℃

T26 is military-grade portable command and control paltform in high integration of Panasonic FZ-M1 and video&data&RC link.It provides the function such as mission planning,attitude control,payload control,remote monitoring,real-time video display,etc.To ensure high-performance and convenient operation,features of T26 includes sunlight-readable,multi-touch display ,lightweight,16 channels,window 10 operating system and strong hardware enabling the scalability.

The rugged,water and dust-proof design,is especially suitable for the operation in the harsh environment.



Performance upgrade

Integration of Panasonic is three computer FZ-M1

The original 10 Windwos system

Intel core processors

Sunshine can video,brightness 800 CD/㎡

IP65 rating

Perfect remote control experience

Double hall rocker

Doubel round rockker

Light alloy buttons

Big long battery life

Battery capacity is 3220mAh +6800mAh

Remote sensing length test about 9 h

The web browsing time about 12h

Modelling design

Aviation aluminum alloy shell,strong and lightweight

Product the total weight is only 1.5kg

Around with soft rubber,skid resistance to knock against



T26 all in one hand-held groudn control station 0T26 all in one hand-held groudn control station 1T26 all in one hand-held groudn control station 2T26 all in one hand-held groudn control station 3T26 all in one hand-held groudn control station 4











Parameters



Overall



Overall weight: 1.5kg

Dimension: 30cm*15.8cm*4cm

Operation temperature: -20℃-+60℃

Battery capacity: Built-in 7.4V/3220mAh(RC)& 8.4V/6800mAh (computer)

Endurance: 9hs

IP rating: IP65

Communication system: V21(10km grade)

Antennas: 2-4dB ZYJB antenna





Computer

Computer: Panasonic FZ-M1(Processor: Intel i5 7Y57)

Display screen: 7inch industrial touch screen+800nits sunlight readable+definition 1280*800

Operating system: Win10

CPU: Intel i5 7Y57

Memory: 8G

Storage: 256GB SSD

Network: WIFI/Bluetooth/4G





Remote control system

Physical channel: 16

Joysticks: 2

Pull wheel: 2

buttons: F1-F10



(Each channel programmable, the user can self-define each joystick, switch, button, etc)



Remote control latency: 40ms

Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface: USB HID device



Interfaces

External interface: USB3.0*2
