Uav 4 Joysticks Mobile Ground Control Station With Windows10 OS

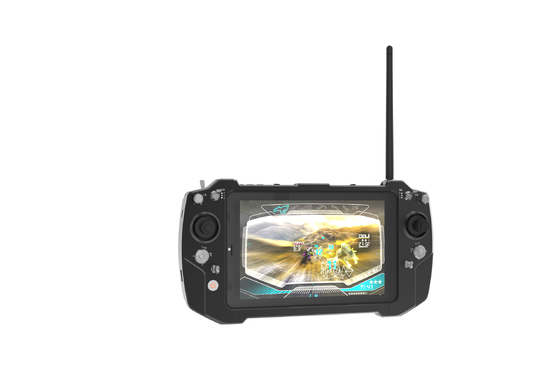

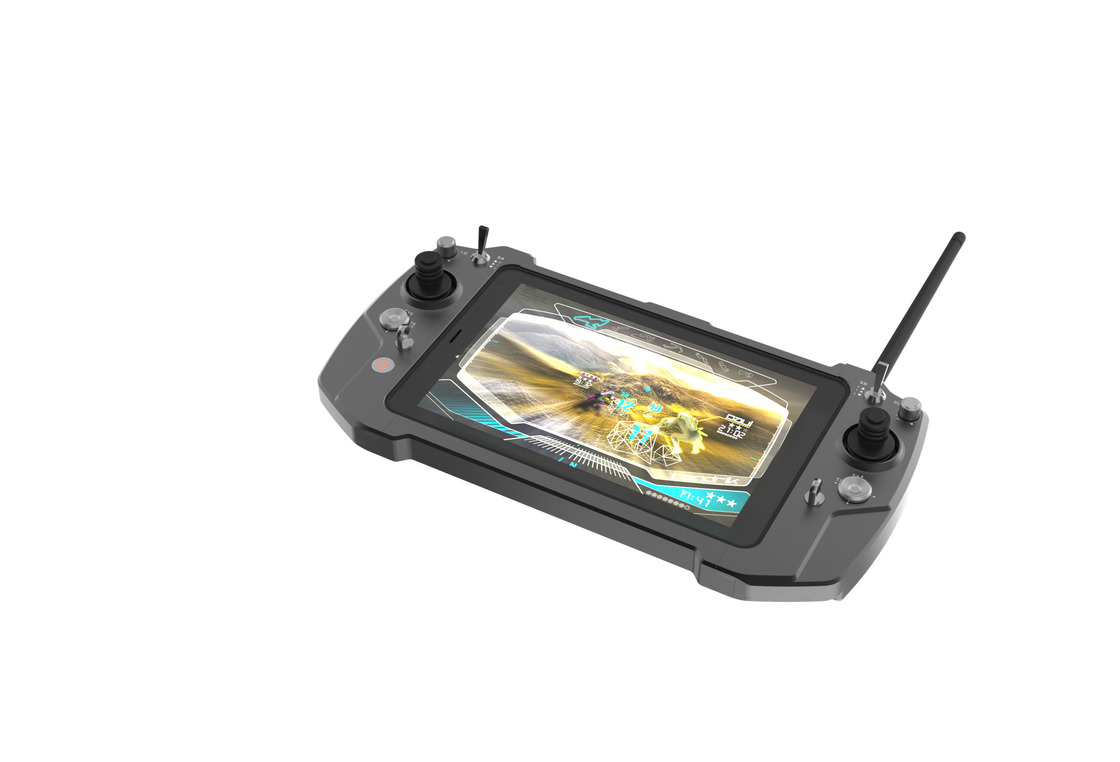

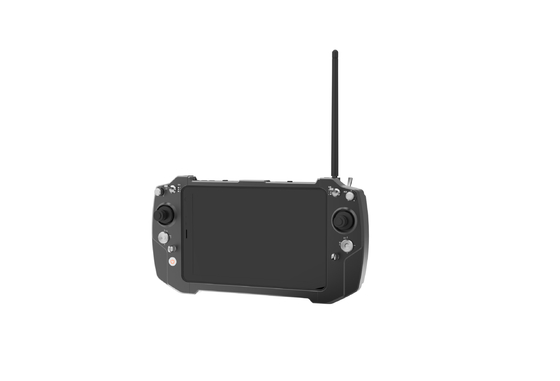

T21 Ultra-Mobile Ground Control Station With Windows10 OS for UAV, UGV, USV, etc

T21 is a portable ground control station integrated and offers 4* joysticks, 4 switches, 2*knobs, and 2*buttons. With 16 physical channels and dual SBUS design, the user can assign each channel to the preferred joystick, switch, and button. The GCS T21 is equipped with a telemetry and RC link based on the P900 module.

It provides functions such as mission planning, attitude control, payload control, navigation & positioning, remote monitoring, etc.

The overall weight is only 1kg, easy carrying, and operation.

A universal ground control station, it is able to work with most open-source flight controls and any type of remote-controlled vehicle, such as UAVs, robots, etc.

Product Features

* Industrial grade computer with GPS

*2 main joysticks and 2 secondary joysticks

* Remote control latency: 30ms

* Dual SBUS input and output

* 10 linear channels meeting various control demand

* Built-in battery 7500mAh, working time: 4hs; TYPEC external charging port,

easy for charging in the field.

Remote controller T21

Overall weight:                            1000g

Dimension:                                  300mm*160mm*40mm

Operation temperature:               -10~+50℃

IP rating:                                      IP53

RF power:                                   0.1-1w(adjustable)

Remote control latency:              30ms

Antenna:                                     2dB rod antenna

Package dimension:                   370mm*285mm*105mm

Channel:                                    16 programmable Channels

Main Joystick:                            2 ((left and right-handed mode/ back to center mode/Hall effect)

Auxiliary joystick:                       2

3-position switch:                       4

Knob:                                         2

Key button:                                2

Interface

SBUS port:                                Dual SBUS ports with HID input

External interface:                     USB2.0

Charging port:                            TYPC 5V

Computer

Display Screen:                            8inch/1280*720

Brightness:                                   350CCD

CPU:                                             Intel Cherry Trail Z8350

Memory :                                      4G

Hard disk:                                     64G

Network:                                       WIFI/Bluetooth/4G

Operating system:                       Win10(standard)

Touch panel:                               10 points capacitive touch screen

Battery:                                        3.7V/7500mAh

Endurance:                                   4h

Loudspeaker:                               Built-in

Airborne unit

R20 telemetry&RC link

Frequency:                                     900MHz(902-920MHz) Mircohard P900 module

Transmission range:                      5km-50km(Depend on the environment)

Power voltage:                               7.4v-12v

Operation current:                       100mA@12v power supply

Operation temperature:                -10~+50℃

RF power:                                       0.1w-1w

Antenna:                                         2dB rod antenna

Weight:                                           43g(exclude antennas)

Dimension:                                      53mm*40mm*14mm

Interface:                                         Serial port*1

SBUS port:                                      2

Power input interface:                     XT30
