Product Details:
|
| Material: | Aviation-grade Aluminum Shell | Product Name: | T40 Mobile Ground Control Station |
|---|---|---|---|
| Function: | Control System, Mission Planning, Video Review | Application: | UAV, UGV, USV, Robot, Remote-controlled Vehicle |
| High Light: | Mobile Ground Control Station 5.98kg,Uav Mobile Ground Control Station 5.98kg,Dual Screen uav ground control system |
||

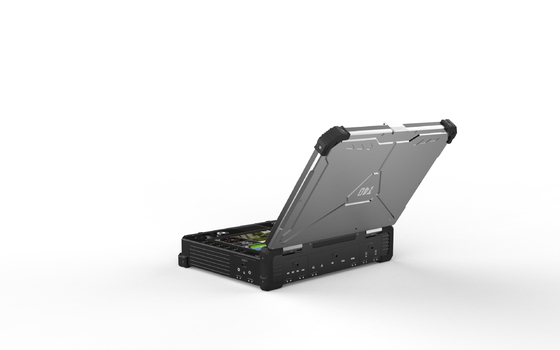

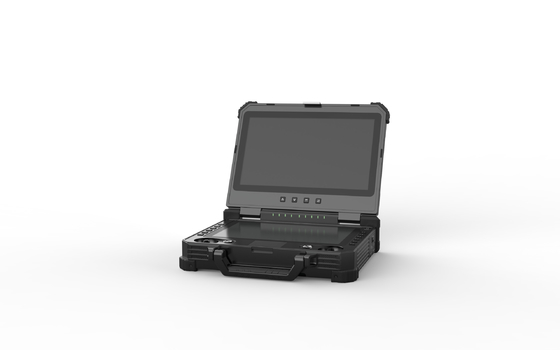

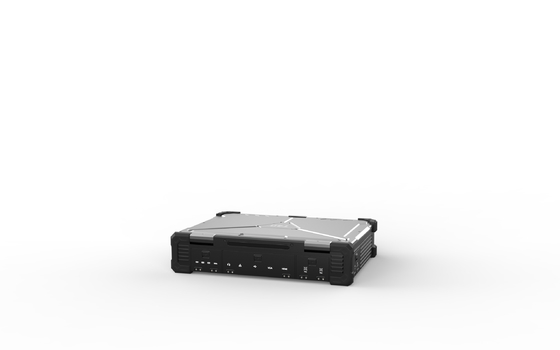

T40 Easy-to-Use Mobile Ground Control Station for Harsh Environments

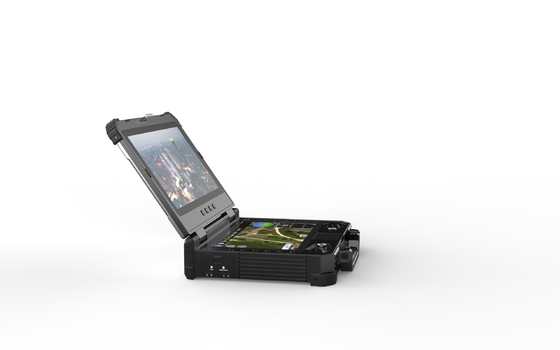

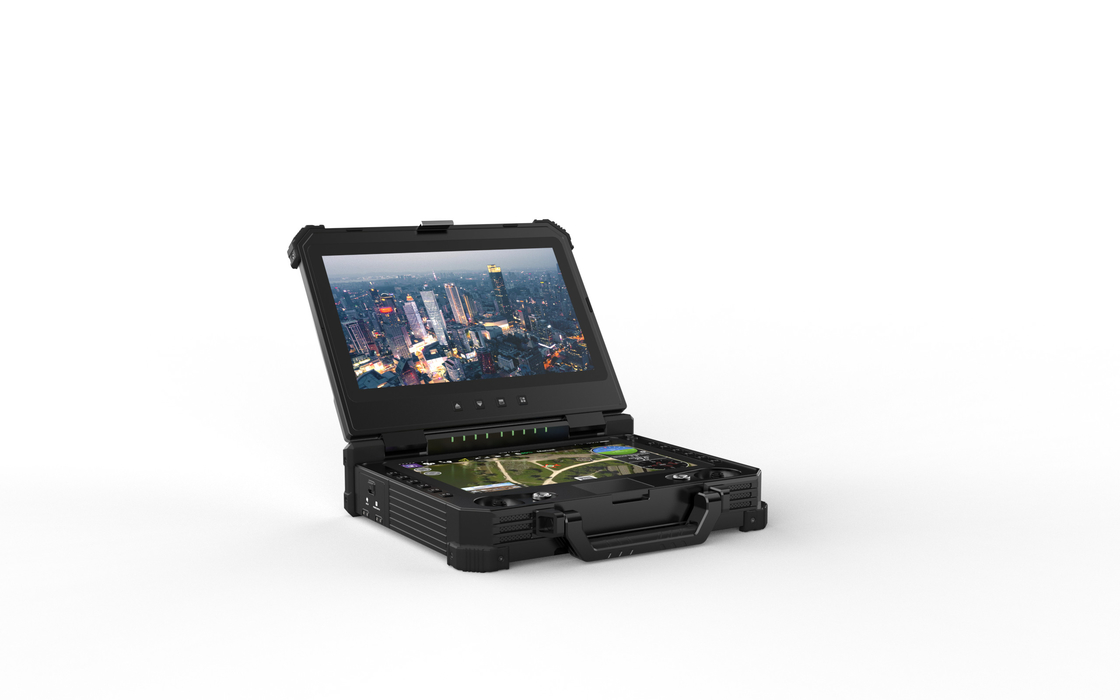

T40 is a dual-screen mobile ground control station that offers a 13.3in 1920*1080 1000CCD screen and a 12.1in 1280*800 1500CCD screen. Both displays are fully sun-readable, allowing users to use them outside.
Built-in communication is a 3-in-1 video&telemetry&RC link with dual SBUS output. There are 3 frequencies for choice, the frequency can be changed in the software.
T40 with 27 physical channels, the user can self-define each channel to the preferred joystick, switch, and button. There are 4 joysticks for use, it also supports traditional RC access. Add HID USB function.
Various input and output ports make it convenient to be integrated with the 3rd party communication device. Lightweight, powerful function make it especially suitable for the individual to perform complicated tasks.
Features
Lightweight, compact size, the overall weight is only 5.98kg
Dual touch screens with high definition and brightness and extended touchpad.
Various external interfaces, able to be integrated with the 3rd party data link
Windows and Linux OS for choice
Low latency remote control, 30ms
Built-in 16.8V Li-ion battery, also supporting external battery for power supply
Parameters
Overall
Overall weight: 5.98kg
Dimension: 354mm(L)*280mm(W)*80mm(H)
Operation temperature: -20℃-+60℃
Battery capacity: 16.8V/13600mAh (external battery also supported)
Endurance: 3h@full battery capacity
Communication system:
V30(10km grade)
V21(10km grade)
Supporting the 3rd party communication
Antennas: 4dBi rod antenna/10dBi fiber-glass epoxy antenna(other antennas also can be connected externally)
Computer
Display screen: 13.3inch 1920*1080 1000CCD(top screen);
12.1inch 1280*800 1500CCD(bottom screen)
Operating system: win10/Linux
CPU: Intel i7 8565U(standard)/Intel 10500U(upgrade for future)
Memory: 8G(standard)
Storage: 256GB SSD(standard)
Network: WIFI, Bluetooth(standard)/4G(optional)
Remote control system
Physical channel: 27
Main joystick: 2(industrial joysticks with hall sensors)
Auxiliary rocker: 4
Key buttons: 12
Simulate keystrokes: 7
Remote control latency: 30ms
Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously
Human interface: USB HID device
Interfaces
Serial port: RS232*3, SBUS in/out
External interface: USB3.0, LAN, HDMI in, VGA out, Hi-fi
Charging port: DC16.8V
Airborne unit
V30 HDMI(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 10/20MHz
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
V21 LAN(10km grade video&data&RC link)
Frequency: 800MHz/1.4GHz/2.4GHz (3 frequency modules in one, frequency can be changed in the software)
Transmission range: 10km@LOS condition
Bandwidth: 1.4M-20MHz(1.4M/3M/5M/10M/20M)
Data rates: 2-12Mbps
Power voltage: 7.4-12v
RF power: 0.1w-1w(adjustable)
Operation current: 260mA@12v power input
Video definition supported: 1080P60 Max
Weight: 120g(exclude antennas)
Dimension: 91mm*57mm*20mm
Interface
Video input interface: HDMI&CVBS
UART port: 1
SBUS port: 2
Power supply interface: XT30
