Rugged Mobile Gcs With 4hs Long Working Time For Uav Command And Control

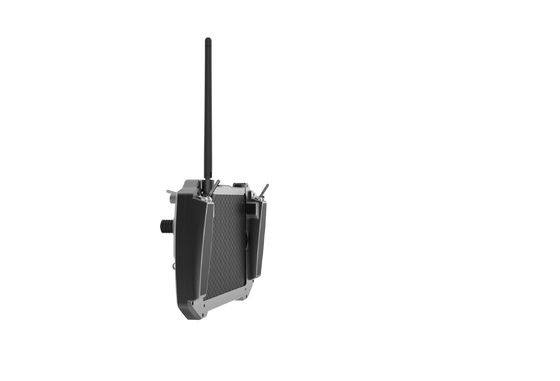

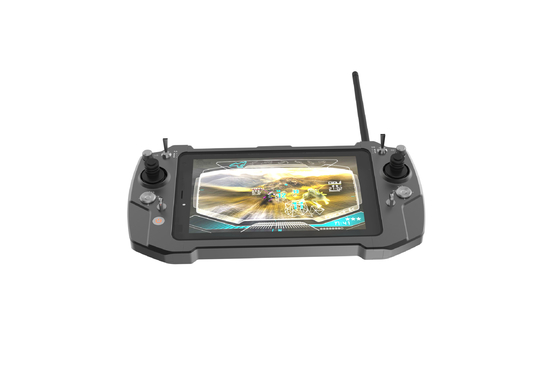

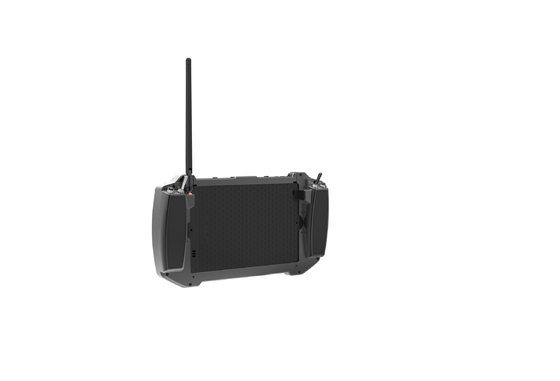

T21 Rugged mobile Ground Control Station With 4hs Long Working Time For Uav Command And Control

T21 is a portable ground control station with four joysticks, four switches, two knobs, and two buttons. With 16 physical channels and dual SBUS design, the user can self-define each channel to the preferred joystick, switch, and button.Telemetry&RC link developed based on P900 module is built-in T21 GCS.

It performs functions such as mission planning, attitude control, payload control, navigation & positioning, and remote monitoring.

It weighs only 1kg, is easy to carry, and is easy to operate. A universal ground control station, it can work with most open-source flight controls as well as any type of remote-controlled vehicle, such as UAVs, robots, etc.

Product Features

• Industrial grade computer with GPS
• 2 main joysticks and 2 auxiliary joysticks
• Multiple joystick options left and right-handed mode, back center mode, industrial hall effect joystick

• Built-in battery 7500mAh, working time: 4hs; TYPEC external charging port,

  easy for charging in the field.

• Aviation grade aluminum alloy material, lightweight only 1kg

• Front and rear cameras that can do face verification to unlock the computer to secure aircraft controls.

Remote controller T21

Overall weight:                            1000g

Dimension:                                  300mm*160mm*40mm

Operation temperature:               -10~+50℃

IP rating:                                      IP53

RF power:                                   0.1-1w(adjustable)

Remote control latency:              30ms

Antenna:                                     2dB rod antenna

Package dimension:                   370mm*285mm*105mm

Channel:                                    16 programmable Channels

Main Joystick:                            2 ((left and right handed mode/ back to center mode/Hall effect)

Auxiliary joystick:                       2

3-position switch:                       4

Knob:                                         2

Key button:                                2

Interface

SBUS port:                                Dual SBUS ports with HID input

External interface:                     USB2.0

Charging port:                            TYPC 5V

Computer

Display Screen:                            8inch/1280*720

Brightness:                                   350CCD

CPU:                                             Intel Cherry Trail Z8350

Memory :                                      4G

Hard disk:                                     64G

Network:                                       WIFI/Bluetooth/4G

Operating system:                       Win10(standard)

Touch panel:                               10 point capacitive touch screen

Battery:                                        3.7V/7500mAh

Endurance:                                   4h

Loudspeaker:                               Built-in

Airborne unit

R20 telemetry&RC link

Frequency:                                     900MHz(902-920MHz) Mircohard P900 module

Transmission range:                      5km-50km(Depend on the environment)

Power voltage:                               7.4v-12v

Operation current:                       100mA@12v power supply

Operation temperature:                -10~+50℃

RF power:                                       0.1w-1w

Antenna:                                         2dB rod antenna

Weight:                                           43g(exclude antennas)

Dimension:                                      53mm*40mm*14mm

Interface:                                         Serial port*1

SBUS port:                                      2

Power input interface:                     XT30
