Product Details:
|
| Color: | Silver | Dimension: | 62mm*40mm*13mm |
|---|---|---|---|
| Weight: | 40g(exclude Antennas) | Forwarding Error: | Hamming/BCH/Golay/Reed-solomon |
| High Light: | CHINOWING RC Transmitter Range Extender,900MHz Transmitter For Drone,Drone RC Transmitter Range Extender |
||

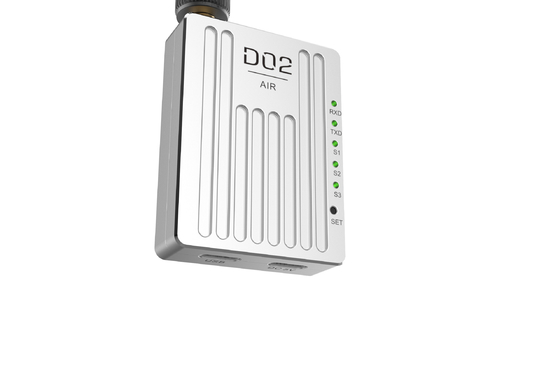

D02 Data transmitter with frequency hopping

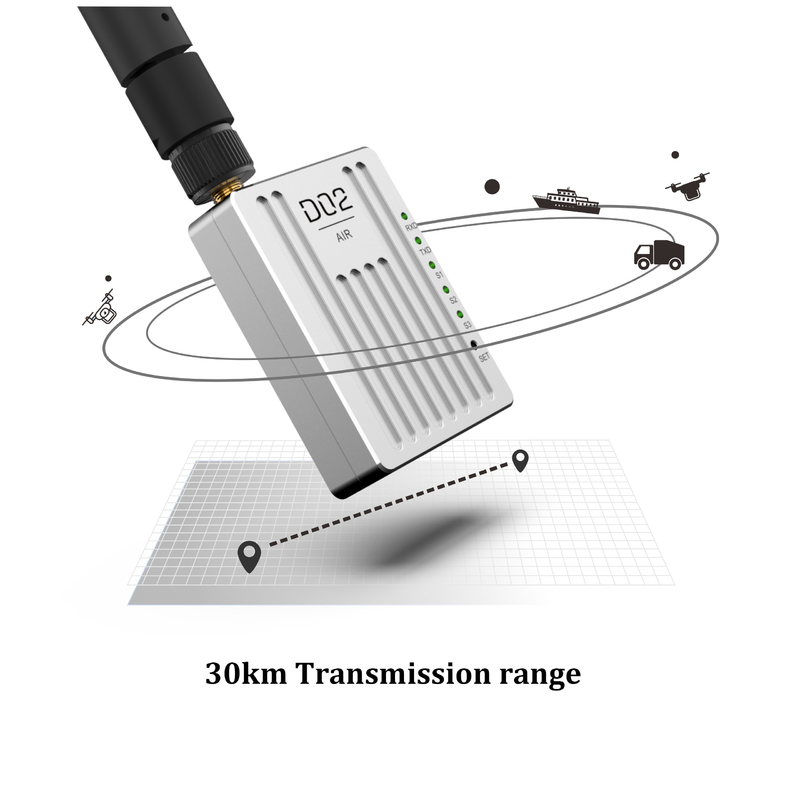

D02 is a data link working in 900MHz frequency band, and the transmission range can reach 30km.
It supports point to point, reply, point to multipoint communication. With the compact size, high integration, high sensitivity, D02 is ideal for aerial service.
Features
Parameters
| D02 Data link | ||||
| Modulation hopping | Frequency hopping | Baud rate | 9600bps-230400bps | |
| Forwarding error | Hamming/BCH/Golay/Reed-solomon | Wireless Link Rate | 276kbps max | |
| Error detection | 32 bits of CRC ARQ | power supply voltage | ground unit:5.0V airborne unit:7.4v-24v | |
| Encryption | Optional(See-AES option) | Antenna interface | SMA | |
| Output power | 100mW--1w (20-30dBm) | Data interface | GH1.25--4P&USB Type-c | |
| Transmission range | 30-60km | Dimension | 62mm*40mm*13mm | |
| 3.3V CMOS TTL(RS232 optional) | Weight | 40g(exclude antennas) | ||
sensitivity |
-110dBM@115.2kbps -108dBm@172.8kbps -107dBm@230.4kbps | Operating temperature | -20-85℃ | |
| transmission protocol | Transparent transmission | |||
