Product Details:
|
Overall Weight: | 3200g | Overall Dimension: | 364mm(L)*190mm(W)*88mm(H) |
---|---|---|---|
Display Screen: | Dual 10.1inch 1920*1280 800nit | CPU: | Intel I5 6200U/2.3GHz |
Touch Pad: | Capacitive 10-finger Multi-touch Display | Operating System: | Windows10/Linux |
RAM: | 16G(standard) 32G(max) | SSD Storage: | 512GB(standard)1T Max |
Network: | WIFI/Bluetooth(standard)4G(optional) | Interface: | USB2.0,LAN,USB3.0,VGA,HDMI |
Physical Channel: | Main Joysticks*2(industrial Joysticks)、3-position Switch*4、Knob*2、Key Button*11、Pull Wheel*2 | Human Interface: | USB HID |
Remote Control Function: | Dual SBUS Independent Output,able To Control The Vehicle And The Payload Simultaneously | Remote Control Latency: | 40ms |
SBUS Port: | SBUS OUT*2 | Battery Capacity: | 12.6V/10050mAh(external Battery Also Supported) |
Endurance: | 3hs@full Battery Capacity | Charging Port: | DC12.6V The Vehicle And The Payload Simultaneously |
Communication Link(V21): | 15km Grade Video&telemetry&RC Link | The 3rd Party Communication Link: | Supportive |

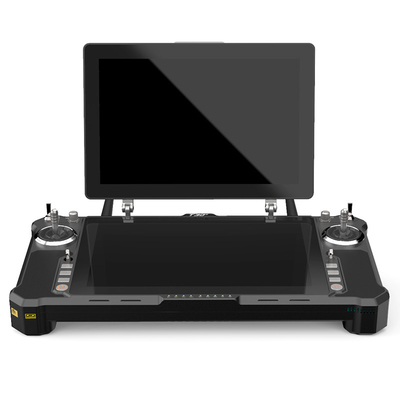

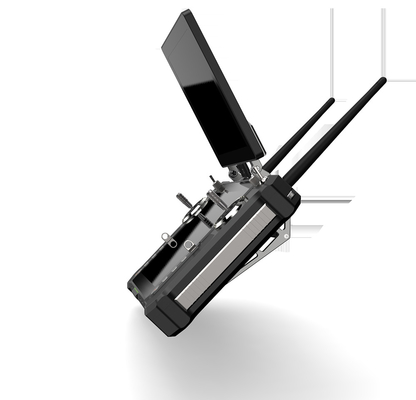

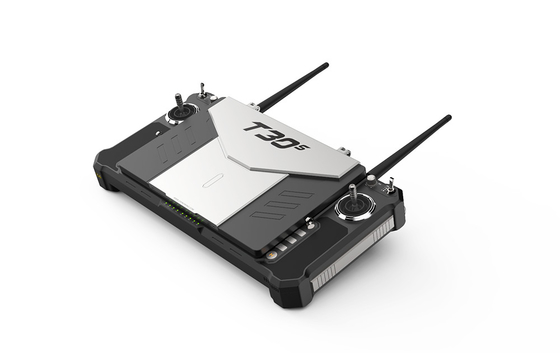

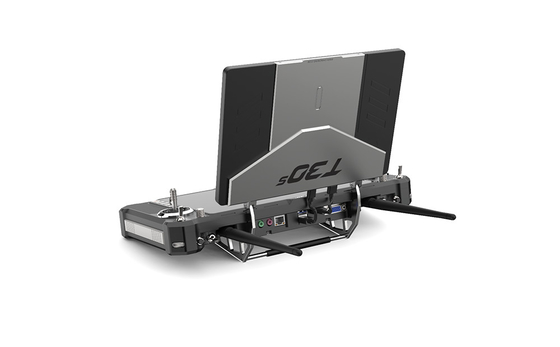

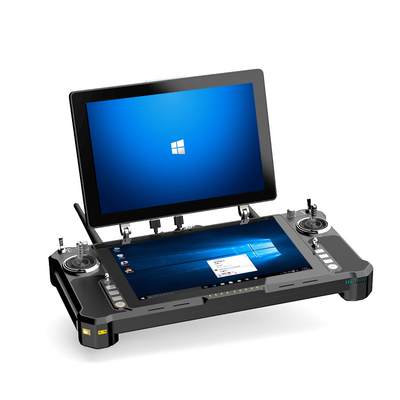

The T30s all-in-one hand-held GCS is a portable lightweight and rugged ground computer station with dual-screen FHD sunlight readable touch screen displays, integrated industrial-grade PC system, video& data link and remote control system.T30s provides the function such as mission planning, attitude control,payload control,remote monitoring,real-time video display,etc. With Windows/Linux platform, T30s supports the most ground control station software.Easy operation and carrying.
Product Features
Product Parameters
Dimension | |
Overall weight | 3200g |
Overall dimension | 364mm(L)*190mm(W)*88mm(H) |
Display screen | Dual 10.1inch 1920*1280 800nit |
Computer | |
CPU | Intel i5 6200U/2.3GHz |
Touch pad | Capacitive 10-finger multi-touch display |
Operating system | Windows 10/Linux |
RAM | 16G(standard) 32G max |
SSD storage | 512GB(standard) 1T max |
Network | WIFI/Bluetooth(standard)4G(optional) |
Interface | USB2.0,LAN,USB3.0,VGA,HDMI |
Remote Control | |
Physical channel | Main joysticks*2(industrial joysticks),3-position switch*4,Knob*2,Key button*11,Pull wheel*2 |
Human interface | USB HID |
Remote control function | Dual SBUS independent output,able to control the vehicle and the payload simultaneously |
Remote control latency | 40ms |
SBUS port | SBUS OUT*2 |
Battery | |
Battery capacity | 12.6V/10050mAh(external battery also supported) |
Endurance | 3hs with full battery capacity |
Charging port | DC12.6V |
Communication link | |
V21 | 15km grade video&telemetry&RC link |
The 3rd party communication link | Supportive |
FAQ:
Q: Who we are?
A: We are a world-leading high-tech enterprise specializing in the R&D and production of dual-screen ground control stations, portable ground control stations, military ground control stations and data link modules.
Q: Could you support OEM&ODM ?
A: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q. How long is the delivery time ?.
A: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days..
Q. How do we make a business long term and good relationship with you?
A. We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
Q: How can you guarantee quality?
A: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
