Product Details:
|
| Frequency: | 902-928MHZ | Power: | 0.1-1W(dajustable) |
|---|---|---|---|
| Baud Rate: | 9600bps--230400bps(adjustable) | Data Rate: | 100k/200k(adjustable) |

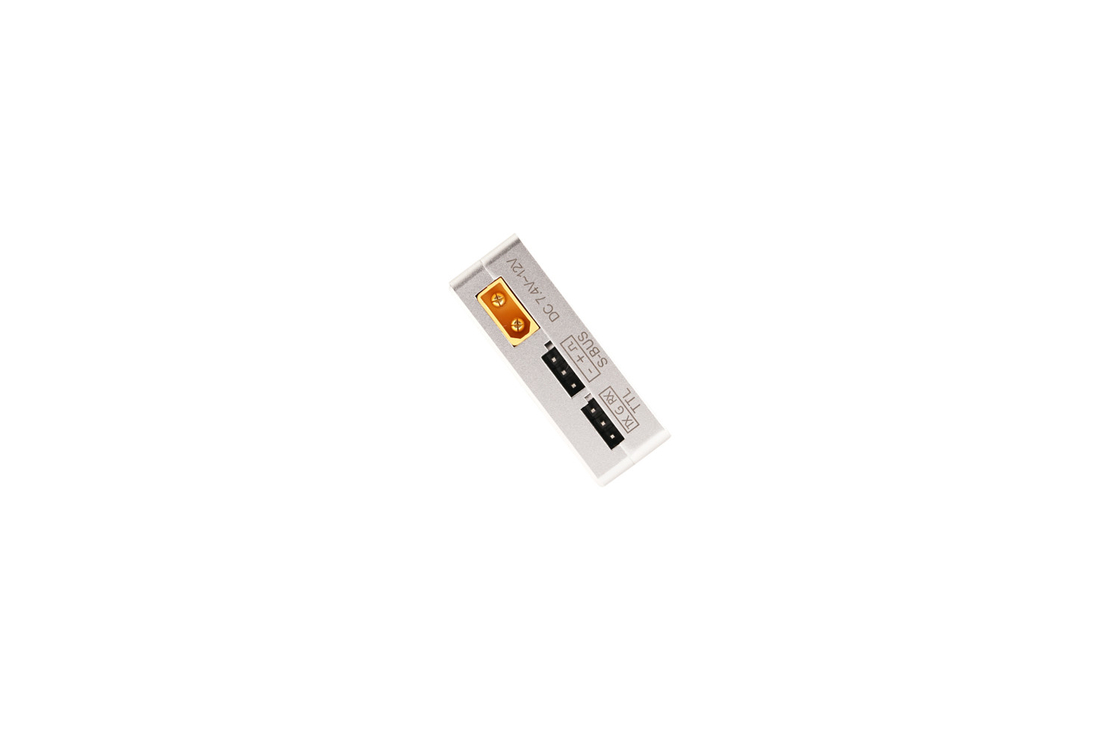

| Operation Current: | 500mA (12V Power Input) | Power Input: | DC:7.4-24V |
| Operational Temperature、: | -10~60℃ Humidity5~95%，RH | Weight: | 43g |
| Transmission Range: | 5-60km（Depend On The Environment） | Dimension: | 53mm*40mm*14mm |
| Ground Unit（Transmitter）: | SBUS Port*1 USB Port*1 | Airborne Unit （Receiver）: | SBUS Port*1 Serial Port*1（Serial Port Is Full Duplex Serial Port，TTL Signal）） |

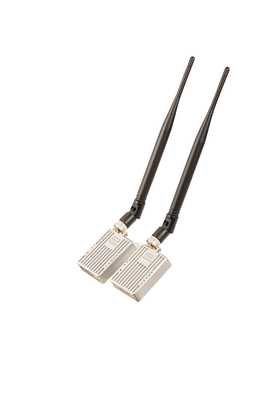

This device transmits both data and remote control signals simultaneously as a two-way data link transmission device.
Ground-based control signals can be enhanced and sent to the airborne for use in conjunction with the data signals.
It is mainly used to solve the problem of the short distance and low transmission quality of the remote control signal and the data transmission signal.
D03 works in the 900MHz frequency band, and the transmission range can reach 30km,max 60km.Compact size,high integration,high sensitivity.
Product features
Long remote control range
Ultra low power consumption
Real test range 50km(0 packet loss)
Strong anti-interference capability
The output is optional TTL,RS232 and RS485 serial port
| D03 Data&RC link | |||
| Frequency | 902-928MHz | weight | 43g |
| Power | 0.1-1W(adjustable) | Transmission range | 5-60km(Depend on the environment) |
| Baud rate | 9600-230400bps(adjustable) | Dimension | 53mm*40mm*14mm |
| Operation current | 500mA(12V power input) | Ground unit(transmitter) | SBUS port*1;USB port*1 |

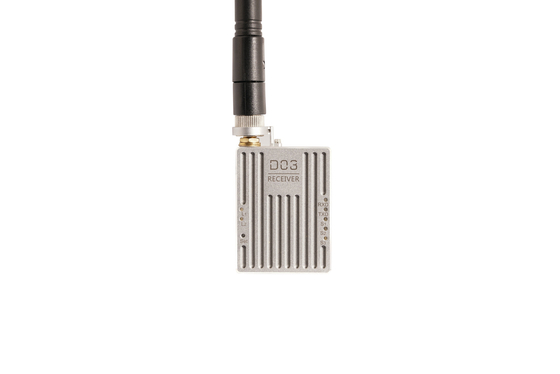

| power input | DC:7.4-24V | Airborne unit(receiver) | SBUS port*1;serial port*1 (Serial port is full duplex seiral port,TTL signal) |
| Operational environment | -10~60℃ humidity 5-95%,RH | ||
