AIO Uav Ground Control Stations Aviation grade aluminum alloy material

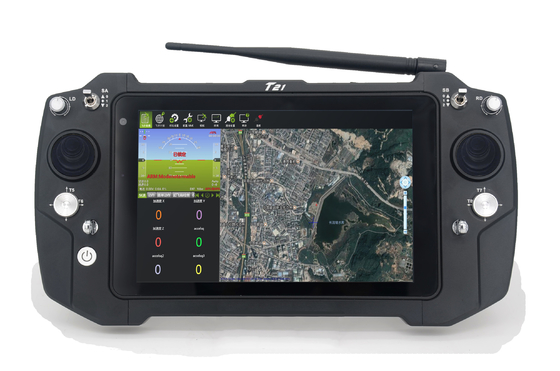

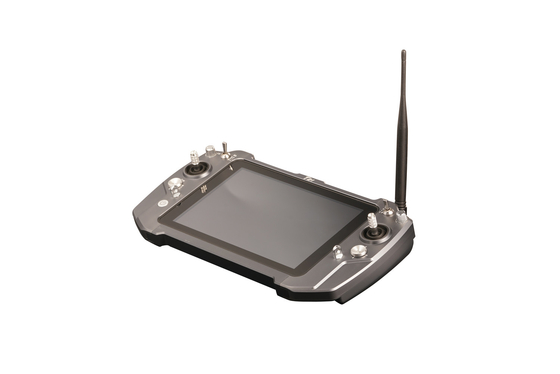

T21 All-in-one Portable Ground Control Station With 4 Industrial Grade Joysticks for remote vehicle control

The T21 ground control station offers four joysticks, four switches, two knobs, and two buttons. With 16 physical channels and a dual SBUS design, the user can assign each channel to the preferred joystick, switch, and button. T21 GCS is integrated with the Telemetry&RC link developed based on the P900 module. This system provides mission planning, attitude control, payload control, navigation and positioning, remote monitoring, etc.

The overall weight is only 1kg, easy to carry, and easy to use. This is a universal ground control station, which is capable of working with most open-source flight controls and any type of remote-controlled vehicle.

Product Features

• Industrial grade computer with GPS
• 2 main joysticks and 2 auxiliary joysticks

• 10 linear channels meeting various control demand

• Remote control latency: 30ms

• Aviation grade aluminum alloy material, lightweight only 1kg

• Front and rear cameras that can do face verification to unlock the

  computer to secure aircraft controls.

Remote controller T21

Overall weight:                            1000g

Dimension:                                  300mm*160mm*40mm

Operation temperature:               -10~+50℃

IP rating:                                      IP53

RF power:                                   0.1-1w(adjustable)

Remote control latency:              30ms

Antenna:                                     2dB rod antenna

Package dimension:                   370mm*285mm*105mm

Channel:                                    16 programmable Channels

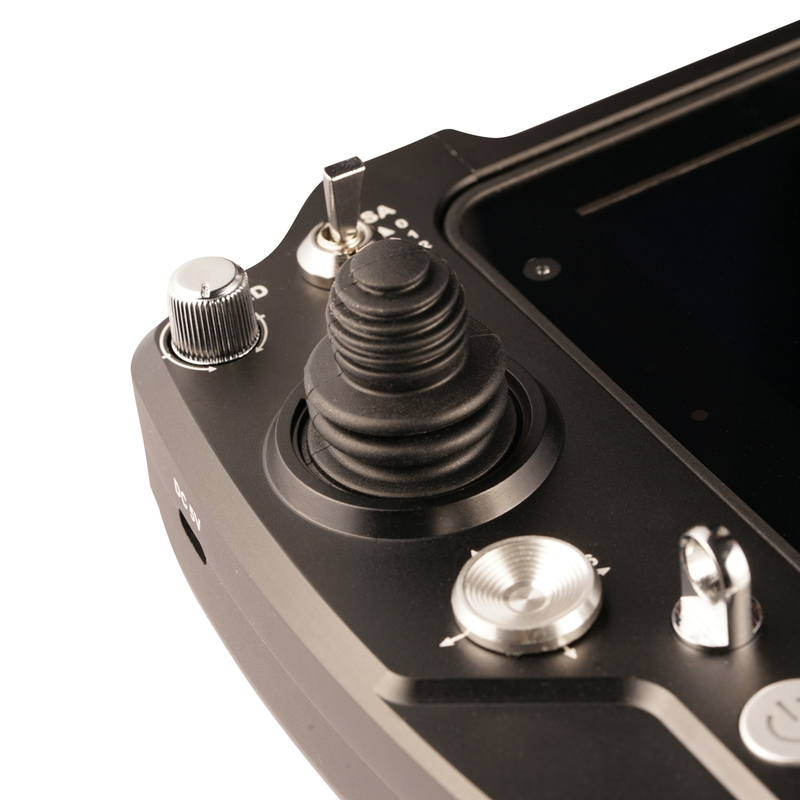

Main Joystick:                            2 ((left and right handed mode/ back to center mode/Hall effect)

Auxiliary joystick:                       2

3-position switch:                       4

Knob:                                         2

Key button:                                2

Interface

SBUS port:                                Dual SBUS ports with HID input

External interface:                     USB2.0

Charging port:                            TYPC 5V

Computer

Display Screen:                            8inch/1280*720

Brightness:                                   350CCD

CPU:                                             Intel Cherry Trail Z8350

Memory:                                      4G

Hard disk:                                     64G

Network:                                       WIFI/Bluetooth/4G

Operating system:                       Win10(standard)

Touch panel:                               10 points capacitive touch screen

Battery:                                        3.7V/7500mAh

Endurance:                                   4h

Loudspeaker:                               Built-in

Airborne unit

R20 telemetry&RC link

Frequency:                                     900MHz(902-920MHz) Mircohard P900 module

Transmission range:                      5km-50km(Depend on the environment)

Power voltage:                               7.4v-12v

Operation current:                       100mA@12v power supply

Operation temperature:                -10~+50℃

RF power:                                       0.1w-1w

Antenna:                                         2dB rod antenna

Weight:                                           43g(exclude antennas)

Dimension:                                      53mm*40mm*14mm

Interface:                                         Serial port*1

SBUS port:                                      2

Power input interface:                     XT30
