1kg Portable Ground Control Station With 8 Inch LCD Screen Monitor

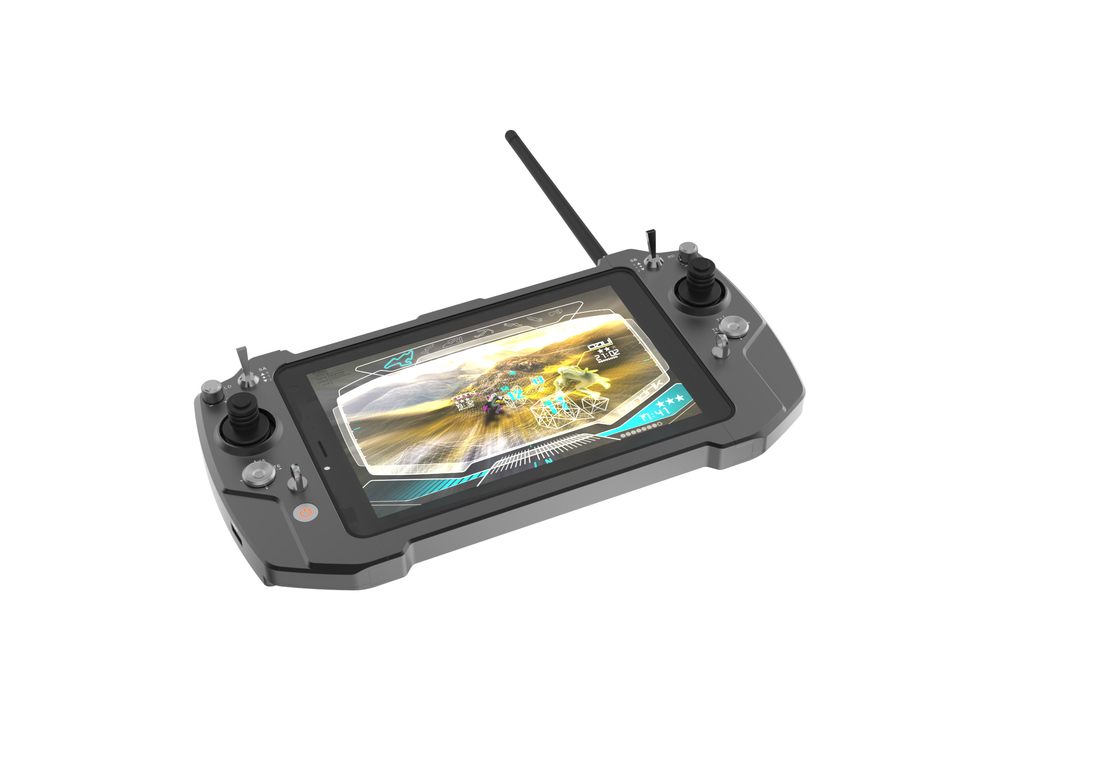

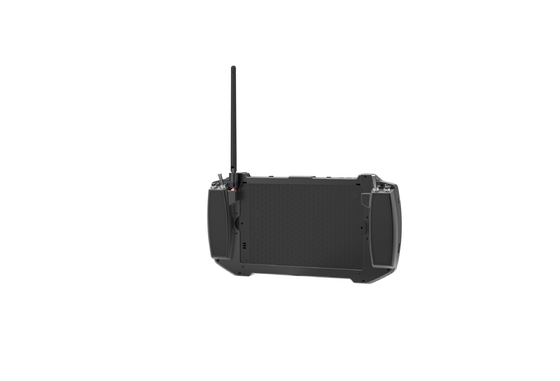

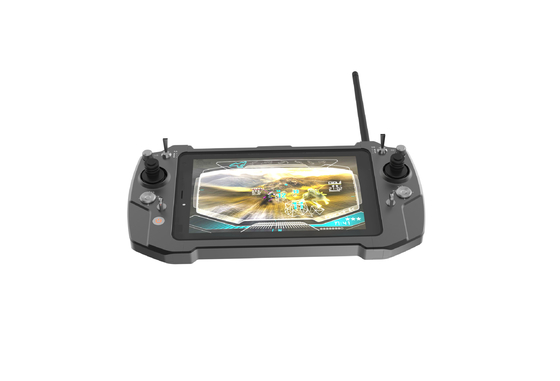

T21 Portable Ground Control Station with 8inch LCD screen monitor only 1kg

The T21 hand-held ground control station is a portable industrial-grade ground computer station with a dual SBUS design. With 16 physical channels, the user can assign each channel to the preferred joystick, switch, and button. Telemetry&RC link developed based on P900 module is built-in T21 GCS.

T21 provides functions such as mission planning, attitude control, payload control, navigation & positioning, remote monitoring, etc.

The industrial-grade computer and military-grade data link ensure the safety and stability of the flight. Easy operation and transportation. It has been widely used in unmanned aerial vehicles, ground robots, bomb disposal robots, remotely operated vehicles (ROV) and other robotic devices.

Product Features

• Industrial grade computer with GPS
• 2 main joysticks and 2 auxiliary joysticks

• 10 linear channels meeting various control demand

• 8inch 10-finger capacitive touch screen

• Built-in battery 7500mAh, working time: 4hs; TYPEC external charging port,

  easy for charging in the field.

• Front and rear cameras that can do face verification to unlock the computer to secure aircraft controls.

Remote controller T21

Overall weight:                            1000g

Dimension:                                  300mm*160mm*40mm

Operation temperature:               -10~+50℃

IP rating:                                      IP53

RF power:                                   0.1-1w(adjustable)

Remote control latency:              30ms

Antenna:                                     2dB rod antenna

Package dimension:                   370mm*285mm*105mm

Channel:                                    16 programmable Channels

Main Joystick:                            2 ((left and right-handed mode/ back to center mode/Hall effect)

Auxiliary joystick:                       2

3-position switch:                       4

Knob:                                         2

Key button:                                2

Interface

SBUS port:                                Dual SBUS ports with HID input

External interface:                     USB2.0

Charging port:                            TYPC 5V

Computer

Display Screen:                            8inch/1280*720

Brightness:                                   350CCD

CPU:                                             Intel Cherry Trail Z8350

Memory:                                      4G

Hard disk:                                     64G

Network:                                       WIFI/Bluetooth/4G

Operating system:                       Win10(standard)

Touch panel:                               10 points capacitive touch screen

Battery:                                        3.7V/7500mAh

Endurance:                                   4h

Loudspeaker:                               Built-in

Airborne unit

R20 telemetry&RC link

Frequency:                                     900MHz(902-920MHz) Mircohard P900 module

Transmission range:                      5km-50km(Depend on the environment)

Power voltage:                               7.4v-12v

Operation current:                       100mA@12v power supply

Operation temperature:                -10~+50℃

RF power:                                       0.1w-1w

Antenna:                                         2dB rod antenna

Weight:                                           43g(exclude antennas)

Dimension:                                      53mm*40mm*14mm

Interface:                                         Serial port*1

SBUS port:                                      2

Power input interface:                     XT30
