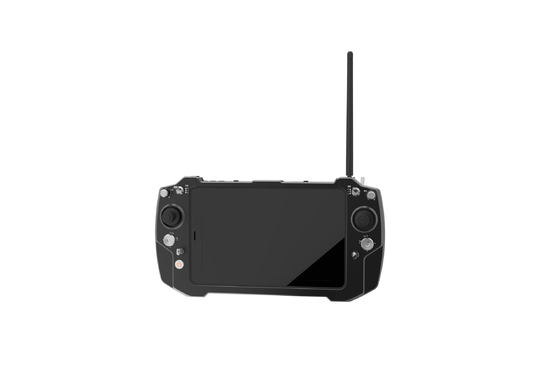

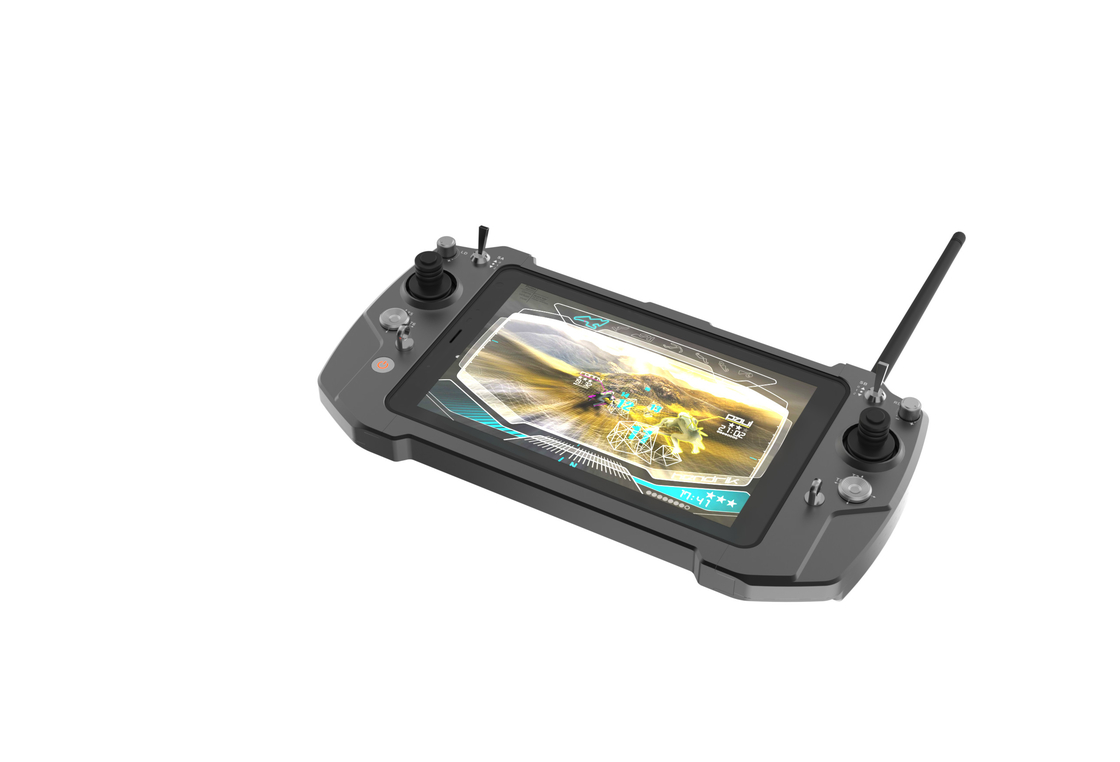

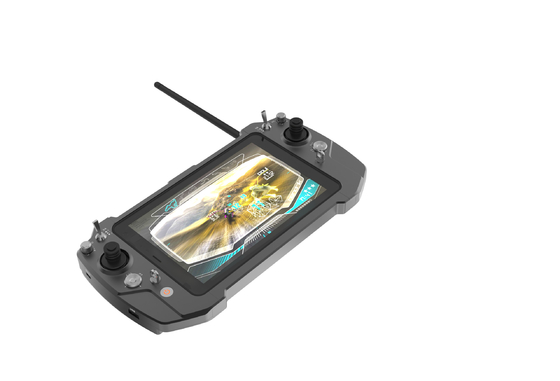

4 Joystick Portable Ground Control Station , 16 physical channels Drone Gcs

4 Joystick Portable Ground Control Station , 16 physical channels Drone Gcs
4 Joystick Portable Ground Control Station , 16 physical channels Drone Gcs 4 Joystick Portable Ground Control Station , 16 physical channels Drone Gcs 4 Joystick Portable Ground Control Station , 16 physical channels Drone Gcs

Large Image :  4 Joystick Portable Ground Control Station , 16 physical channels Drone Gcs

Product Details:
Place of Origin: CHINA
Brand Name: CHINOWING
Model Number: T21
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD$1,600.0-USD$1,900.0
Packaging Details: Plastic suitcase+ carton packing
Delivery Time: 2-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 1-10000PCS

4 Joystick Portable Ground Control Station , 16 physical channels Drone Gcs

Description
Physical Channel: 16 Joystick: 4
Operating System: Windows10 CPU: Intel Cherry Trail Z8350
Working Time: 4hs Remote Control Latency: 30ms
High Light:

4 Joystick Portable Ground Control Station

,

4 Joystick Drone Gcs

,

16 Physical Channels Drone Gcs

T21 Portable GCS For Remote-Controlled Vehicle in Defense and Manned Aviation



T21 provides functions such as mission planning, attitude control, payload control, navigation & positioning, remote monitoring, etc.



It only weighs 1kg, is easily transportable, and operates smoothly. The universal remote controller works with most open-source flight controllers and remote-controlled vehicles such as drones, robots, etc.



Product Features

  • Industrial grade computer with GPS
  • 16 physical channels
  • Multiple joystick options, left and right handed mode, back center mode, industrial hall effect joystick
  • 8inch 10-finger capacitive touch screen
  • All the channels can be self-defined in the RC software
  • Aviation grade aluminum alloy material, lightweight only 1kg



4 Joystick Portable Ground Control Station , 16 physical channels Drone Gcs 04 Joystick Portable Ground Control Station , 16 physical channels Drone Gcs 14 Joystick Portable Ground Control Station , 16 physical channels Drone Gcs 24 Joystick Portable Ground Control Station , 16 physical channels Drone Gcs 3







Remote controller T21

Overall weight:                            1000g

Dimension:                                  300mm*160mm*40mm

Operation temperature:               -10~+50℃

IP rating:                                      IP53

RF power:                                   0.1-1w(adjustable)

Remote control latency:              30ms

Antenna:                                     2dB rod antenna

Package dimension:                   370mm*285mm*105mm

Channel:                                    16 programmable Channels

Main Joystick:                            2 ((left and right handed mode/ back to center mode/Hall effect)

Auxiliary joystick:                       2

3-position switch:                       4

Knob:                                         2

Key button:                                2

Interface


SBUS port:                                Dual SBUS ports with HID input

External interface:                     USB2.0

Charging port:                            TYPC 5V



Computer

Display Screen:                            8inch/1280*720

Brightness:                                   350CCD

CPU:                                             Intel Cherry Trail Z8350

Memory :                                      4G

Hard disk:                                     64G

Network:                                       WIFI/Bluetooth/4G

Operating system:                       Win10(standard)

Touch panel:                               10 point capacitive touch screen

Battery:                                        3.7V/7500mAh

Endurance:                                   4h

Loudspeaker:                               Built-in



Airborne unit

R20 telemetry&RC link

Frequency:                                     900MHz(902-920MHz) Mircohard P900 module

Transmission range:                      5km-50km(Depend on the environment)

Power voltage:                               7.4v-12v

Operation current:                       100mA@12v power supply

Operation temperature:                -10~+50℃

RF power:                                       0.1w-1w

Antenna:                                         2dB rod antenna

Weight:                                           43g(exclude antennas)

Dimension:                                      53mm*40mm*14mm

Interface:                                         Serial port*1

SBUS port:                                      2

Power input interface:                     XT30
