Product Details:
Place of Origin: CHINA
Brand Name: CHINOWING
Model Number: T16
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD$2322.0-USD$2636.0
Delivery Time: 2-8 works
Payment Terms: T/T
Supply Ability: 1-10000PCS

GCS Portable Ground Control Station IP53 22 physical channels

Description
Color: Silver Dimension: 290mm*150mm*60mm
Weight: 1060g Channel: 22 Physical Channels
Remote Control Latency: 30ms IP Rating: IP 53
High Light:

GCS Portable Ground Control Station

,

Portable Ground Control Station IP53

,

portable gcs

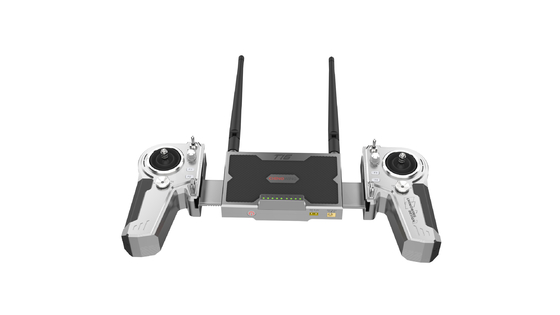

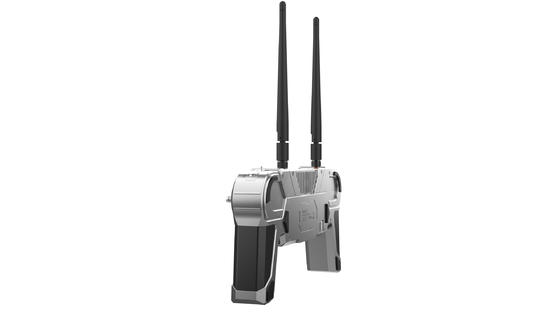

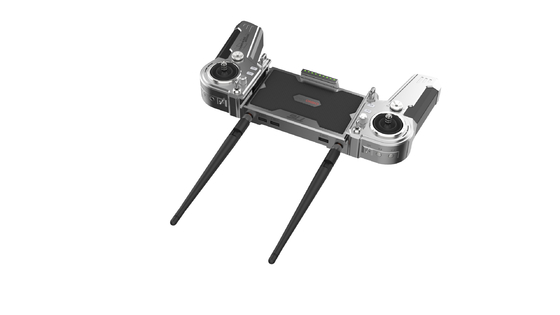

T16 hand held ground control station with windows 10 or Android system( IP53 22 physical channels)





T16 is a compact portable GCS that can operate drone and its payload easily and safely. With the extensible design, it supports 5-10.1inch tablet or phone.

T16 can control the aircraft, the payload, display real-time flight status and remote control status with Windows and Android systems.

Product Features

  • Main and secondary joysticks design
  • With programmable dual SBUS independent output, it will control the payload and the drone together
  • The physical channel supports USB HID input to the computer, with up to 9 quick buttons available for quick ground station operation.
  • 10 linear channels fullfill various control demand.
  • Multiple joystick options,left and right handed mode,back center mode,industrial hall effect joystick.
  • Remote control,telemetry data,real-time HD video display, suitable for individual operation.
  • Up to 8 hours battery capacity,meanwhile supporting external battery powering.
  • Universal platform, compatible with most of the flight control systems in the market
  • 3 frequency bands integrated into one(800MHz,1.4GHz,2.4GHz),it can modified in the software, communication range:10km+



GCS Portable Ground Control Station IP53 22 physical channels 0GCS Portable Ground Control Station IP53 22 physical channels 1GCS Portable Ground Control Station IP53 22 physical channels 2GCS Portable Ground Control Station IP53 22 physical channels 3











Remote controller T16

Overall weight:                            1060g

Dimension:                                  290mm*150mm*60mm

Operation temperature:               -10~+60℃

IP rating:                                      IP53

RF power:                                    0.1-0.5w

Remote control latency:               30ms

Ground unit of video link:             Built-in

Power supply:                              8.4V/6800mAh built-in battery, external battery supported

Endurance:                                  8h@full battery capacity

Mobile device:                             Support 5-10.1inch tablet or phone

Operation system:                       Windows/Android

Remote control range:                10km grade@LOS condition

Channel:                                      22

Main joystick:                               2 (left and right handed mode/back center mode/Hall effect)

Auxiliary joystick:                         2

3-position switch:                         4

Knob :                                          2

Key button:                                  8

Pull wheel:                                   2

Interface:                                     SBUS port /Dual SBUS ports with HID input

External interface:                       USB3.0



V21(10Km grade video&data& link)

Frequency:                                  800MHz(806-826MHz)

                                                    1.4GHz(1427.9-1447.9MHz)

                                                    2.4GHz(2401.5-2481.5MHz)  3 frequency modules integrated in one, frequency can be modified in the software.

Power voltage:                            7.4v-12v XT30

Bandwidth:                                  3M/5M/10M/20M

Operation current:                       300mA@12v power supply

Operation temperature:               -10~+50℃

RF power:                                    0.1w-1w

Antenna:                                      2-4dB rod antenna

Weight:                                        110g(exclude antennas)

Dimension:                                   85mm*55mm*20mm

Video input interface:                   LAN

Serial port:                                   TTL or RS232

SBUS port:                                   2pcs
