industrial grade Portable Ground Control Station For UGV USV

industrial grade Portable Ground Control Station For UGV USV
industrial grade Portable Ground Control Station For UGV USV industrial grade Portable Ground Control Station For UGV USV industrial grade Portable Ground Control Station For UGV USV industrial grade Portable Ground Control Station For UGV USV industrial grade Portable Ground Control Station For UGV USV

Large Image :  industrial grade Portable Ground Control Station For UGV USV

Product Details:
Place of Origin: CHINA
Brand Name: CHINOWING
Model Number: T40
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD$6,500.0-USD$8,500.0
Packaging Details: Plastic suitcase+ carton packing
Delivery Time: 2-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 1-10000PCS

industrial grade Portable Ground Control Station For UGV USV

Description
Material: Aviation-grade Aluminum Shell Product Name: T40 Handheld Remote Controller
Function: Control System, Mission Planning, Video Review Application: UAV, UGV, USV, Robot, Remote-controlled Vehicle
High Light:

UGV Portable Ground Control Station

,

USV Portable Ground Control Station

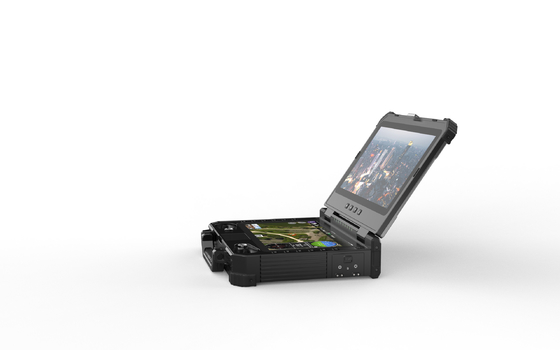

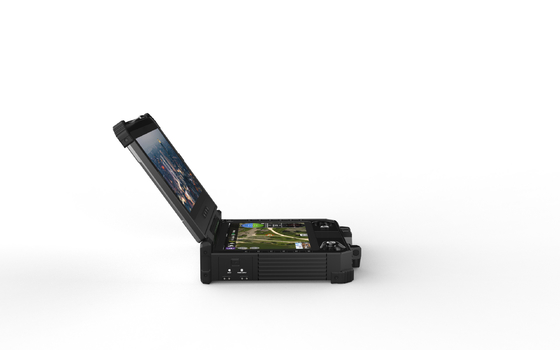

T40 Lightweight Compact Handheld Remote Controller for Any UAV, UGV, USV, ROV, Remote-Controlled Vehicle



With a lightweight aviation-grade aluminum alloy shell and 3-in-one communication, the T40 offers the ideal way for commanding and controlling the drone as well as the payload. It can be used to conduct a wide range of commercial and professional drone missions.



T40 with dual SBUS output and input, the user can assign 27 channels to preferred joysticks, switches, and buttons.



The remote control system has 4 joysticks for use, it also supports traditional RC access. Various input and output ports make it convenient to be integrated with the 3rd party communication device.



Lightweight, powerful function make it especially suitable for the individual to perform complicated tasks.



Features

Universal off-the-shelf ground control station



Built on Intel-based PC, real industrial-grade GCS

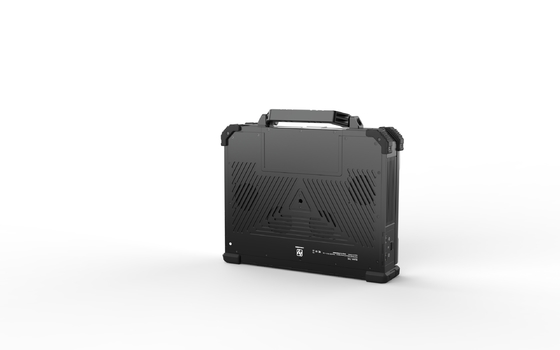

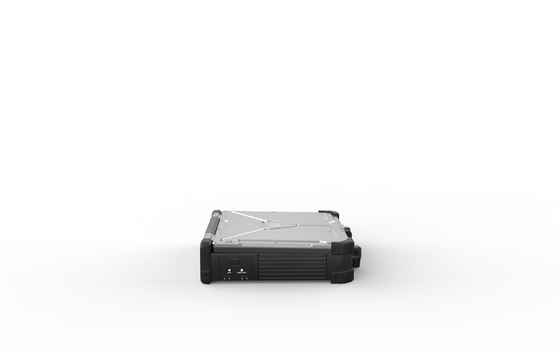

Aviation grade aluminum shell, the overall weight only 5.98kg



Support traditional RC access

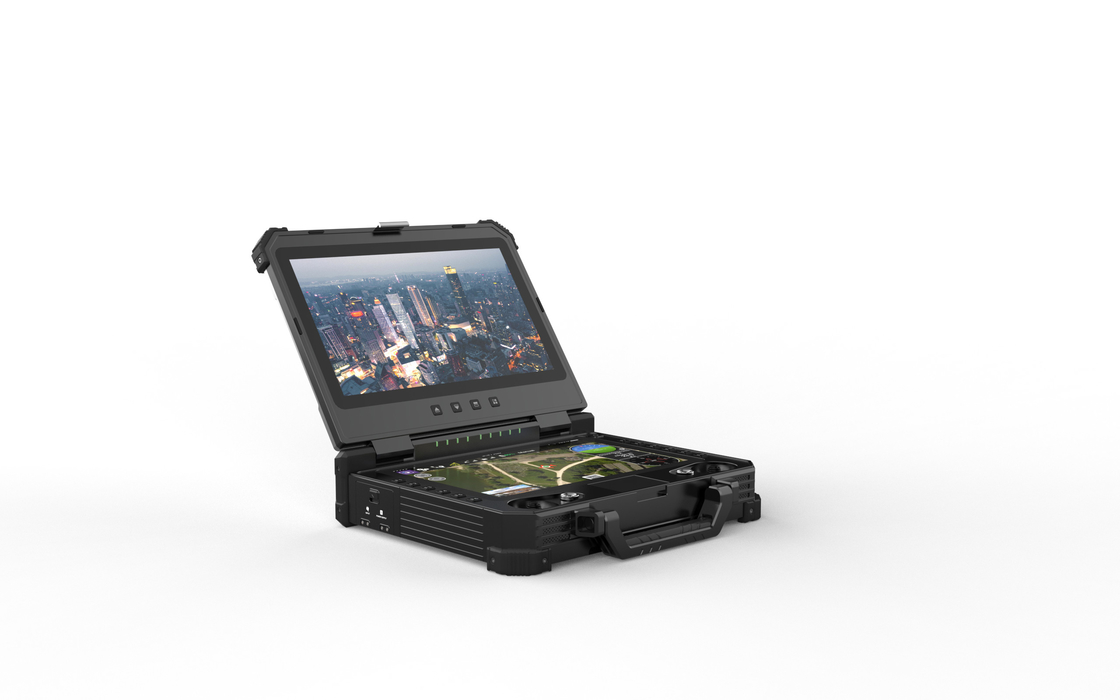

Dual touch screens, high definition, high brightness, sunlight-readable



Compatible with 100% data link in the market.





industrial grade Portable Ground Control Station For UGV USV 0industrial grade Portable Ground Control Station For UGV USV 1



industrial grade Portable Ground Control Station For UGV USV 2industrial grade Portable Ground Control Station For UGV USV 3industrial grade Portable Ground Control Station For UGV USV 4









Parameters



Overall

Overall weight:                                        5.98kg

Dimension:                                              354mm(L)*280mm(W)*80mm(H)

Operation temperature:                           -20℃-+60℃

Battery capacity:                                     16.8V/13600mAh (external battery also supported)

Endurance:                                              3h@full battery capacity

Communication system:

                                                                 V30(10km grade)

                                                                 V21(10km grade)

                                                                  Supporting the 3rd party communication

Antennas:                                                 4dBi rod antenna/10dBi fiber-glass epoxy antenna(other antennas also can be connected externally)





Computer

Display screen:                                         13.3inch 1920*1080 1000CCD(top screen);

                                                                  12.1inch 1280*800 1500CCD(bottom screen)

Operating system:                                     win10/Linux

CPU:                                                           Intel i7 8565U(standard)/Intel 10500U(upgrade for future)

Memory:                                                     8G(standard)

Storage:                                                      256GB SSD(standard)

Network:                                                     WIFI, Bluetooth(standard)/4G(optional)



Remote control system

Physical channel:                                        27

Main joystick:                                              2(industrial joysticks with hall sensors)

Auxiliary rocker:                                          4

Key buttons:                                                12

Simulate keystrokes:                                   7

Remote control latency:                               30ms

Remote control function:                              Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface:                                         USB HID device



Interfaces

Serial port:                                                   RS232*3, SBUS in/out

External interface:                                       USB3.0, LAN, HDMI in, VGA out, Hi-fi

Charging port:                                              DC16.8V





Airborne unit



V30 HDMI(10km grade video&data&RC link)



Frequency:                                                   800MHz/1.4GHz/2.4GHz (3 frequency modules in one, frequency can be changed in the software)

Transmission range:                                    10km@LOS condition

Bandwidth:                                                   10/20MHz

Data rates:                                                    2-12Mbps

Power voltage:                                             7.4-12v

RF power:                                                     0.1w-1w(adjustable)

Operation current:                                         260mA@12v power input

Video definition supported:                           1080P60 Max

Weight:                                                         120g(exclude antennas)

Dimension:                                                    91mm*57mm*20mm

Interface

Video input interface:                                    HDMI&CVBS

UART port:                                                     1

SBUS port:                                                      2

Power supply interface:                                 XT30





V21 LAN(10km grade video&data&RC link)



Frequency:                                               800MHz/1.4GHz/2.4GHz (3 frequency modules in one, frequency can be changed in the software)

Transmission range:                                10km@LOS condition

Bandwidth:                                               1.4M-20MHz(1.4M/3M/5M/10M/20M)

Data rates:                                                2-12Mbps

Power voltage:                                          7.4-12v

RF power:                                                 0.1w-1w(adjustable)

Operation current:                                     260mA@12v power input

Video definition supported:                       1080P60 Max

Weight:                                                      120g(exclude antennas)

Dimension:                                                 91mm*57mm*20mm

Interface

Video input interface:                                 HDMI&CVBS

UART port:                                                 1

SBUS port:                                                 2

Power supply interface:                              XT30
