Multirotor UAV Drone Control Stations 1.5KG With Dual SBUS Output

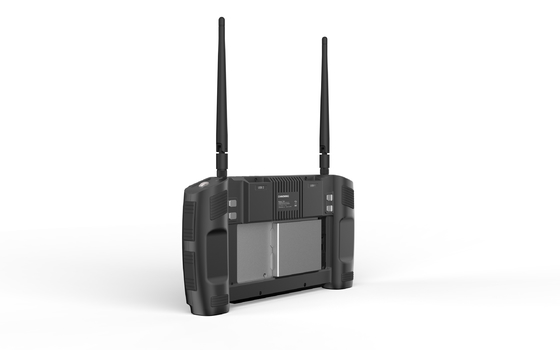

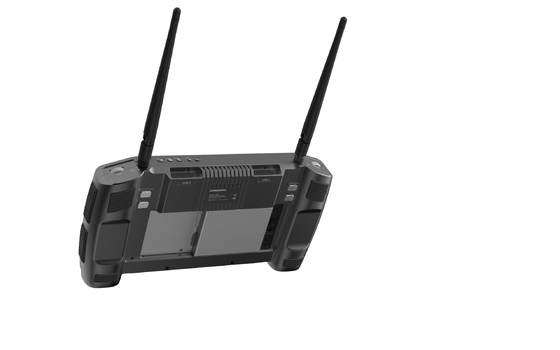

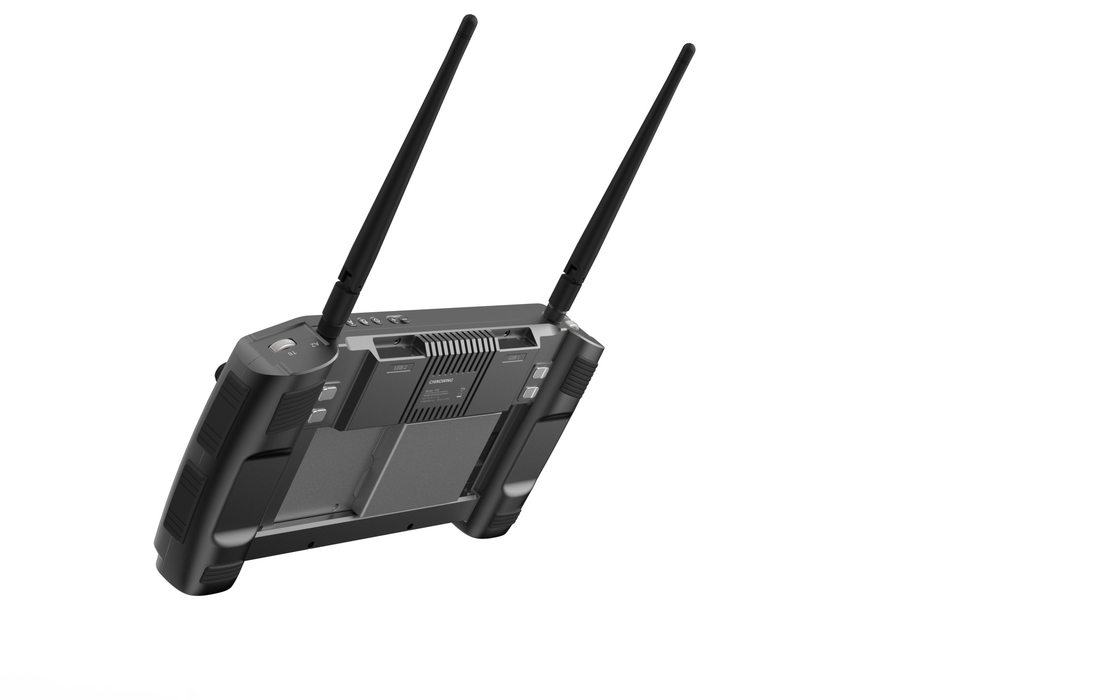

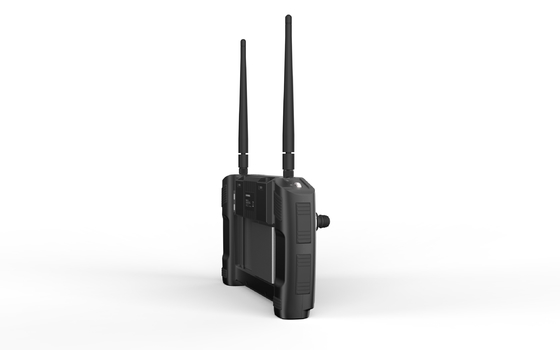

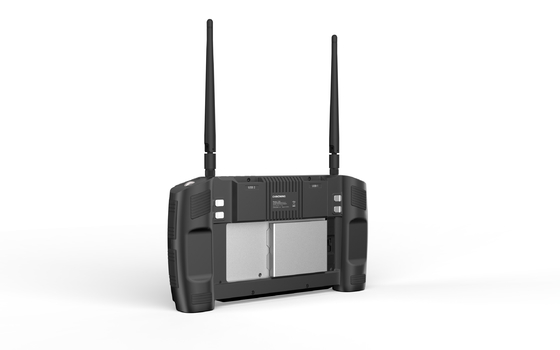

T26 Highly Integrated Drone Ground Control Station Compatible With Any Fixed-Wing Or Multirotor UAV

Ground control station(GCS) T26 runs on Panasonic FZ-M1, a military-grade professional tablet that meets MIL-STD-810G, IP65 dust- and water-resistant design.

Featuring an all-in-one video, telemetry, and RC link, the T26 includes 2 joysticks, 2 pull wheels, and 10 buttons. The user can assign 16 physical channels to joysticks, switches, and buttons.

The integrated large-capacity battery makes it possible to continuously run it for nine hours. It greatly facilitates the user on the field.

A universal mobile command&control system, it is able to work with most open-source flight controls and any type of remote-controlled vehicle, such as UAVs, UGVs, USVs, and others.

Performance upgrade

• Built on Panasonic FZ-M1, IP65 grading

• Aviation grade aluminum shell, the overall weight only 1.5kg

• Dual SBUS output, able to control the drone and the payload simultaneously

• USB HID function, easier for the user to do the further development

• Windows OS Low latency remote control, 30ms

Perfect remote control experience

• Double hall rocker
• Double round rocker
• Light alloy buttons

Long battery working time

• Battery capacity is 3220mAh+6800mAh
• Remote control about 9hs
• The web browsing about 12hs

Modeling design

• Aviation aluminum alloy shell, rugged and lightweight
• Overall weight is only 1.5 kg
•  Around with soft rubber, skid resistance, anti-knock

Parameters

Overall

Overall weight:                      1.5kg

Dimension:                            30cm*15.8cm*4cm

Operation temperature:        -20℃-+60℃

Battery capacity:                   Built-in 7.4V/3220mAh(RC)& 8.4V/6800mAh (computer)

Endurance:                           9hs

IP rating:                               IP65

Communication system:       V21(10km grade)

Antennas:                              2-4dB ZYJB antenna

Computer

Computer:                            Panasonic FZ-M1(Processor: Intel i5 7Y57)

Display screen:                    7inch industrial touch screen+800nits sunlight readable+definition 1280*800

Operating system:               Win10

CPU:                                    Intel i5 7Y57

Memory:                              8G

Storage:                              256GB SSD

Network:                             WIFI/Bluetooth/4G

Remote control system

Physical channel:                 16

Joysticks:                             2

Pull wheel:                           2

buttons:                                F1-F10

(Each channel programmable, the user can self-define each joystick, switch, button, etc)

Remote control latency:          40ms

Remote control function:         Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface:                    USB HID device

Interfaces

External interface:                   USB3.0*2
