7 Inch LCD Monitor T26 UAV Ground Control Station With Intel Core Processor

Certification
China Chinowing Technology Co., Ltd certification
China Chinowing Technology Co., Ltd certification
I'm Online Chat Now

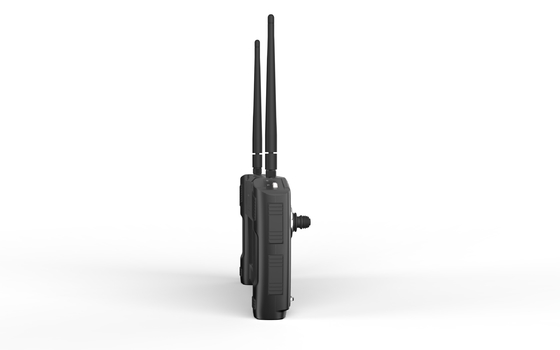

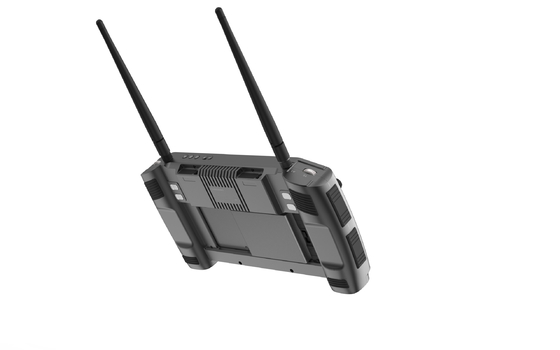

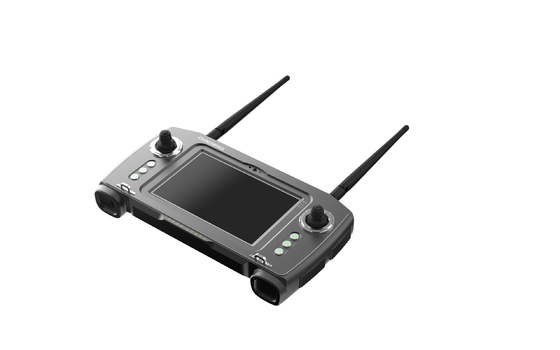

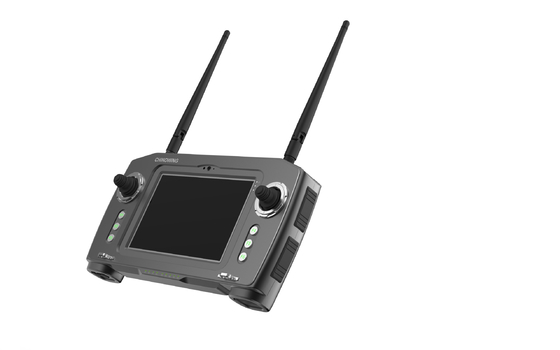

7 Inch LCD Monitor T26 UAV Ground Control Station With Intel Core Processor

7 Inch LCD Monitor T26 UAV Ground Control Station With Intel Core Processor
7 Inch LCD Monitor T26 UAV Ground Control Station With Intel Core Processor 7 Inch LCD Monitor T26 UAV Ground Control Station With Intel Core Processor 7 Inch LCD Monitor T26 UAV Ground Control Station With Intel Core Processor 7 Inch LCD Monitor T26 UAV Ground Control Station With Intel Core Processor 7 Inch LCD Monitor T26 UAV Ground Control Station With Intel Core Processor

Large Image :  7 Inch LCD Monitor T26 UAV Ground Control Station With Intel Core Processor

Product Details:
Place of Origin: CHINA
Brand Name: CHINOWING
Model Number: T26
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD$6,900.0-USD$7,300.0
Packaging Details: Plastic suitcase+ carton packing
Delivery Time: 2-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 1-10000PCS

7 Inch LCD Monitor T26 UAV Ground Control Station With Intel Core Processor

Description
Physical Channel: 16 Joysticks: 2
Pull Wheel: 2 Buttons: 10
Operating System: Windows10 Network: Bluetooth, WIFI, 4G
High Light:

7 Inch UAV Ground Control Station

,

Intel Core UAV Ground Control Station

,

LCD Monitor uav ground station

T26 Professional UAV Ground Control Station With Intel Core Processor And 7 Inch LCD Monitor



The core of T26 GCS is Panasonic FZ-M1, a professional and military graded tablet with MIL-STD-810G protection, and a dust- and water-resistant IP65 enclosure.



It is integrated with an all-in-one video&telemetry&RC link and offers 2x joystick, 2x pull wheel, and 10x button. The user can assign channels to preferred joysticks, switches, and buttons. Dual SBUS output makes it possible to control the drone and the payload simultaneously.



A universal ground control station, it is able to work with most open-source flight controls and any type of remote-controlled vehicle, such as UAVs, UGVs, USVs, and others. The rugged, water and dust-proof design, is especially suitable for operation in a harsh environment.





Features

  • Built on Panasonic FZ-M1, IP65 grading

  • Aviation grade aluminum shell, the overall weight only 1.5kg

  • Touch screens, high definition, high brightness, sunlight-readable

  • Windows OS Low latency remote control, 30ms

  • Built-in Li-ion battery, also supporting external battery for power supply


Perfect remote control experience

  • Double hall rocker
  • Double round rocker
  • Light alloy buttons



Long battery working time

  • Battery capacity is 3220mAh+6800mAh
  • Remote control about 9hs
  • The web browsing 12hs



Modeling design

  • Aviation aluminum alloy shell, rugged and lightweight
  • Overall weight is only 1.5 kg
  • Around with soft rubber, skid resistance, anti-knock





7 Inch LCD Monitor T26 UAV Ground Control Station With Intel Core Processor 07 Inch LCD Monitor T26 UAV Ground Control Station With Intel Core Processor 17 Inch LCD Monitor T26 UAV Ground Control Station With Intel Core Processor 27 Inch LCD Monitor T26 UAV Ground Control Station With Intel Core Processor 37 Inch LCD Monitor T26 UAV Ground Control Station With Intel Core Processor 4









Parameters



Overall



Overall weight:                      1.5kg

Dimension:                            30cm*15.8cm*4cm

Operation temperature:        -20℃-+60℃

Battery capacity:                   Built-in 7.4V/3220mAh(RC)& 8.4V/6800mAh (computer)

Endurance:                           9hs

IP rating:                               IP65

Communication system:       V21(10km grade)

Antennas:                              2-4dB ZYJB antenna





Computer

Computer:                            Panasonic FZ-M1(Processor: Intel i5 7Y57)

Display screen:                    7inch industrial touch screen+800nits sunlight readable+definition 1280*800

Operating system:               Win10

CPU:                                    Intel i5 7Y57

Memory:                              8G

Storage:                              256GB SSD

Network:                             WIFI/Bluetooth/4G





Remote control system

Physical channel:                 16

Joysticks:                             2

Pull wheel:                           2

buttons:                                F1-F10



(Each channel programmable, the user can self-define each joystick, switch, button, etc)



Remote control latency:          40ms

Remote control function:         Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface:                    USB HID device



Interfaces

External interface:                   USB3.0*2
