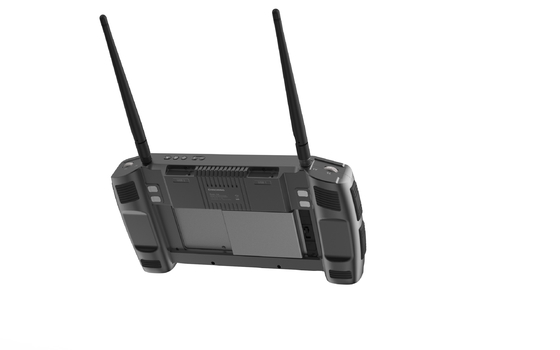

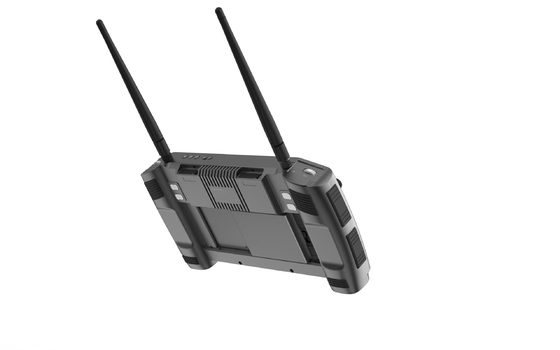

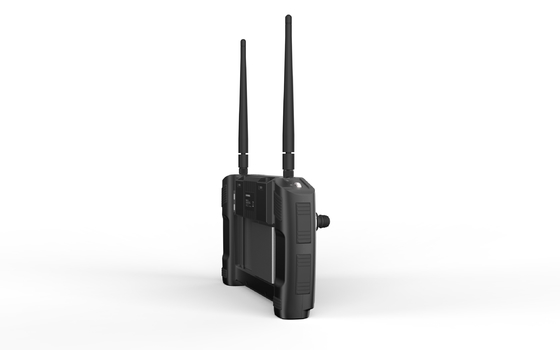

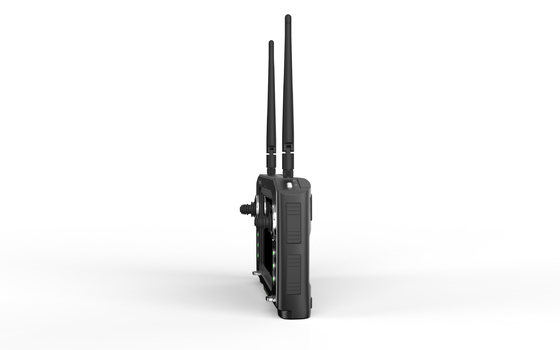

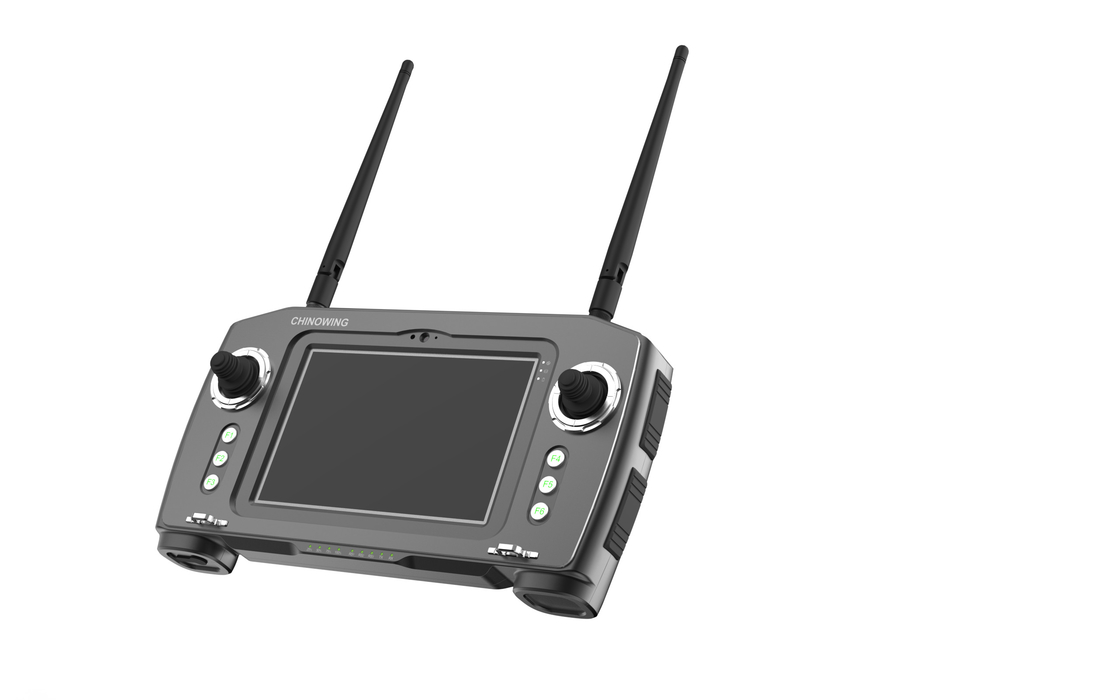

1.5kg Ground Control System For Drone 30x15.8x4cm aluminum alloy shell

T26 1.5kg Ground Control Station with Industrial Touch Screen for Drone, Remote Controlled Vehicles

Ground Control  System T26 is built on top of the Panasonic FZ-M1 tablet, which is a professional and military-grade tablet meeting MIL-STD-810G and offering IP65 dust and water-resistant design. It is especially suitable for working in demanding scenarios.

To ensure high-performance and convenient operation, features of T26 include sunlight-readable, multi-touch display, lightweight, 16 channels, window 10 operating system, and strong hardware enabling the scalability.

A video&telemetry&RC link is integrated into the T26 and it includes two joysticks, two pull wheels, and ten buttons. The user can assign channels to preferred joysticks, switches, and buttons.

This unit is equipped with a large capacity battery which enables continuous operation for nine hours. It greatly facilitates the user on the field.

UAS, UGVs, USVs, as well as other remote-controlled vehicles, can all be controlled by the T26 Universal Ground Control Station, which is compatible with most open-source flight controllers.

Performance upgrade

• Integration of Panasonic computer FZ-M1
• The Windows system
• IP65 grating, MIL-STD-810G

• Touch screens, high definition, high brightness, sunlight-readable

• Built-in Li-ion battery, also supporting external battery for power supply

Perfect remote control experience

• Double hall rocker
• Double round rocker
• Light alloy buttons

Long battery working time

• Battery capacity is 3220 mAh+6800 mAh
• Remote control about 9hs
• The web browsing time is about 12hs

Modeling design

• Aviation aluminum alloy shell, rugged and lightweight
• The overall weight is only 1.5 kg
• Soft rubber around, skid resistance

Parameters

Overall

Overall weight:                      1.5kg

Dimension:                            30cm*15.8cm*4cm

Operation temperature:        -20℃-+60℃

Battery capacity:                   Built-in 7.4V/3220mAh(RC)& 8.4V/6800mAh (computer)

Endurance:                           9hs

IP rating:                               IP65

Communication system:       V21(10km grade)

Antennas:                              2-4dB ZYJB antenna

Computer

Computer:                            Panasonic FZ-M1(Processor: Intel i5 7Y57)

Display screen:                    7inch industrial touch screen+800nits sunlight readable+definition 1280*800

Operating system:               Win10

CPU:                                    Intel i5 7Y57

Memory:                              8G

Storage:                              256GB SSD

Network:                             WIFI/Bluetooth/4G

Remote control system

Physical channel:                 16

Joysticks:                             2

Pull wheel:                           2

buttons:                                F1-F10

(Each channel programmable, the user can self-define each joystick, switch, button, etc)

Remote control latency:          40ms

Remote control function:         Dual SBUS independent output, able to control the vehicle and the payload simultaneously

Human interface:                    USB HID device

Interfaces

External interface:                   USB3.0*2
