RS232 Wireless Data Transmitter

RS232 Wireless Data Transmitter
RS232 Wireless Data Transmitter RS232 Wireless Data Transmitter RS232 Wireless Data Transmitter RS232 Wireless Data Transmitter RS232 Wireless Data Transmitter

Large Image :  RS232 Wireless Data Transmitter

Product Details:
Place of Origin: CHINA
Brand Name: CHINOWING
Model Number: V40
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 2-8 works
Supply Ability: 1-10000PCS

RS232 Wireless Data Transmitter

Description
Name: Wireless Data Transmitter Frequency:: 800MHz: 806-826MHz
Transmission Range:: 10km Grade Bandwidth:: 3M/5M/10M/20M
Video Latency :: <=300ms RF Power:: 300mW-2W
High Light:

RS232 Wireless Data Transmitter

,

RS485 Wireless Data Transmitter

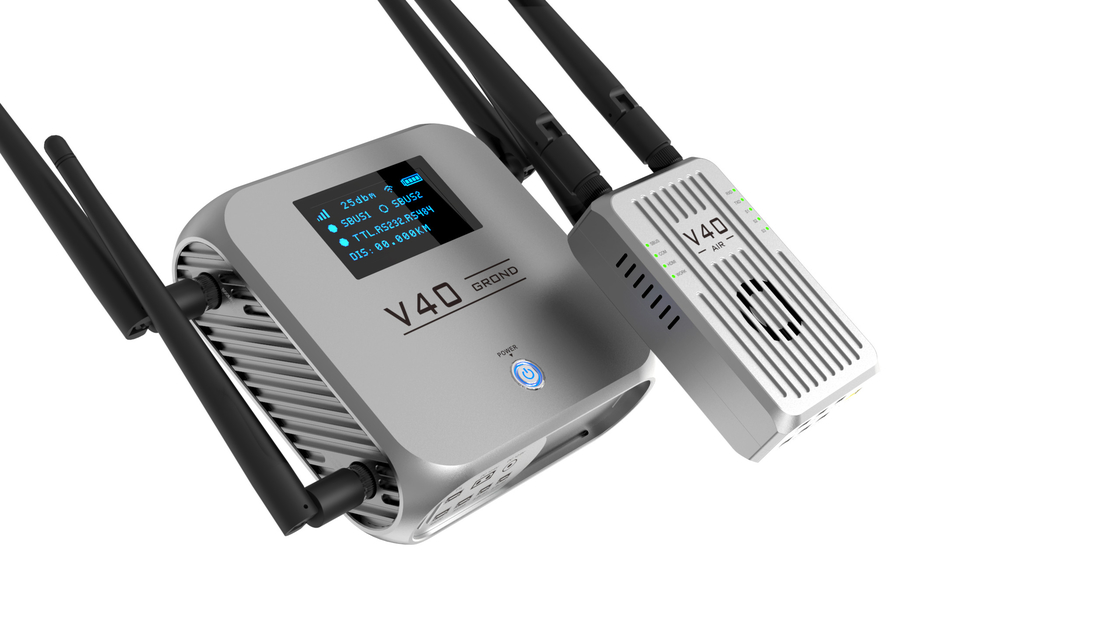

V40 Video And Telemetry And RC Link All in one

V40 is a multi function wireless transmission module. It can transmit telemetry data and real-time video stream, and has 2*SBUS ports, able to provide the control of the vehicle and the payload.



RF modules of 800M, 1.4G, 2.4G frequency bands are integrated into one model, the frequency can be modified in the software. With HDMI and LAN video input interfaces and 3 serial ports(TTL&RS232&RS485), 2 channels of HD video and 3 channels of serial port data can be transmitted simultaneously.



As for the communication mode, V40 supports point to point, point to multi-point communication, the center node can communicate with any node, which greatly expands the application scenarios.



Ground unit has built-in WIFI module, which can be wirelessly connected the the computer or monitor.



High integration greatly reduces the power consumption and the dimension of the product, which is especially suitable for the complicated application.



Features

  • Multi-functions in one device, video&telemetry&R link in one

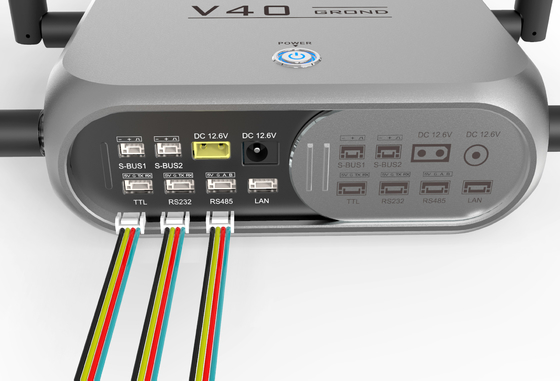

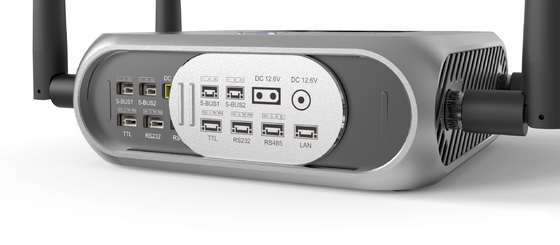

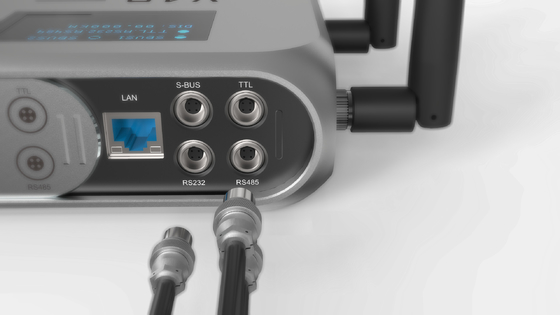

  • Various interfaces: HDMI&LAN ports, 2*SBUS ports, 3*serial ports; all can be working simultaneously
  • 3 frequency modules in one
  • Support point to point, point to multipoint communication
  • Ground unit with display screen to view the working status
  • Ground unit with built-in WIFI module, able to connect to the phone, pad or computer wirelessly

RS232 Wireless Data Transmitter 0



RS232 Wireless Data Transmitter 1



RS232 Wireless Data Transmitter 2



RS232 Wireless Data Transmitter 3



RS232 Wireless Data Transmitter 4



RS232 Wireless Data Transmitter 5







RS232 Wireless Data Transmitter 6



RS232 Wireless Data Transmitter 7





Parameters



Overall



Frequency:

                                                                 800MHz: 806-826MHz

                                                                 1.4GHz: 1427.9-1447.9MHz

                                                                  2.4GHz: 2401.5-2481.5MHz)

Transmission range:                                 10km grade

Bandwidth:                                                3M/5M/10M/20M(adjustable)

Video latency :                                           <=300ms





Airborne unit



RF power:                                                   300mW-2W

Power supply port:                                      XT30

Power supply voltage:                                12-24v

Operation current:                                      470mA@12V power supply

Operation temperature:                             -35℃~+60℃

Antenna:                                                    2-4dB rod antenna

SBUS port :                                               2*S-BUS port

Serial port:                                                TTL*1 & RS232*1 & RS485*1

Video input:                                                LAN*1, HDMI*1, CVBS*1



Dimension:                                                117mm(L)*70mm(W)*30mm(H)

Weight:                                                       236g(exclude antennas)





Ground unit

RF power:                                                  300mW-2W(adjustable)

Power supply interface:                             XT30 12V

Charging port:                                           DC12.6V(Aviation plug/GH1.25)

Built-in battery Capacity:                           6800mAh

Endurance:                                               10h with full capacity

WIFI data rate:                                         144Mbps-300Mbps

Antenna:                                                   2-4dB rod antenna&8-9dB fiberglass antenna



SBUS port :                                               2*S-BUS port INTPUT

Serial port:                                                 TTL*1 & RS232*1 & RS485*1

Video output:                                               LAN*2



Dimension:                                                  139mm(L)*139mm(W)*48mm(H)

Weight:                                                        1045g(exclude antennas)
